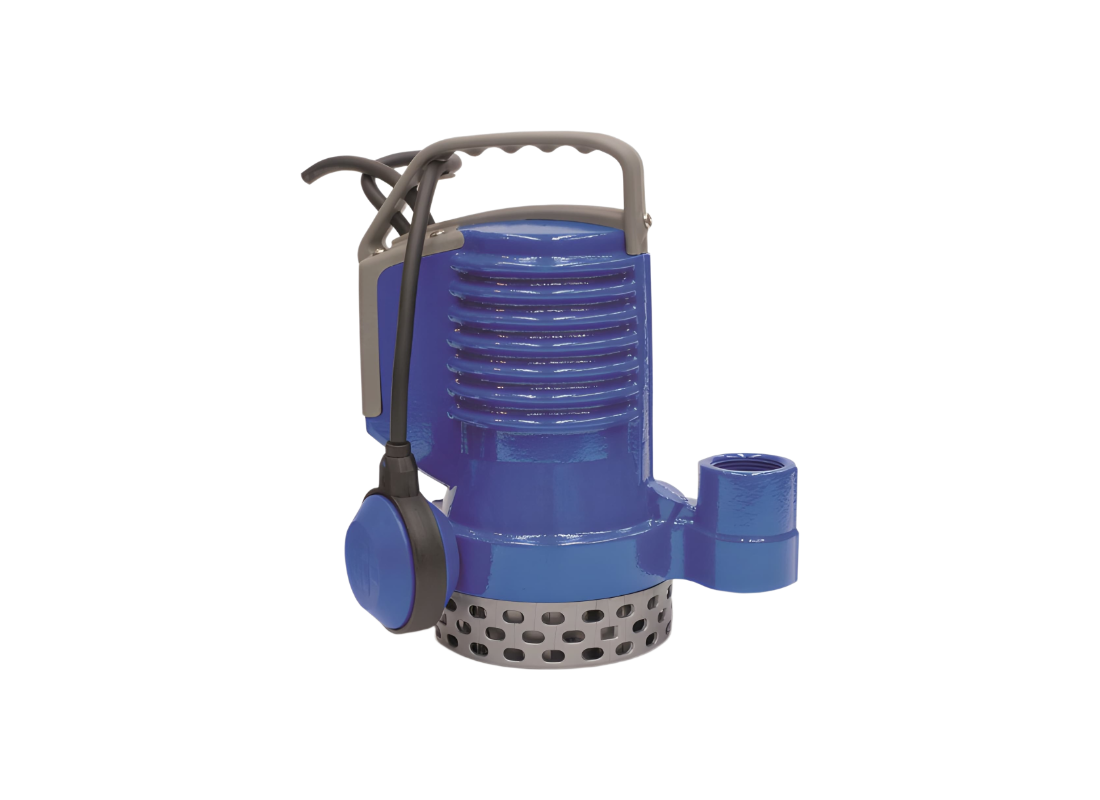

Zenit DRBLUE40/2/G32VMGEX Cast Iron 0.3kW Submersible Drainage Pump for Residential Drainage with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Residential drainage systems often face challenges with slightly dirty water accumulation that must be evacuated promptly to prevent damage. This Zenit submersible pump provides an ideal solution for clearing basements, rainwater sumps, and domestic seepage areas. Engineered for domestic duty, it thrives in wet installations where consistent performance is needed for light drainage tasks.
The unit is capable of reaching a maximum flow of up to 210 L/Min and a maximum head of approximately 7 m. Driven by a 0.3 kW single-phase motor at 240v, it provides sufficient hydraulic lift for standard residential transfer applications. This performance profile ensures that liquid is moved effectively while maintaining a low power draw and high operational stability during use.
Hydraulic design centers on an open channel impeller that is fully submerged for optimal cooling and flow behavior. This configuration is specifically engineered to handle liquids containing small suspended solids up to 7 mm, preventing the clogging issues associated with standard centrifugal designs. The submerged installation assists motor cooling during continuous operation, maintaining hydraulic efficiency over long periods.
Structural durability is provided by the cast iron EN-GJL 250 construction, which is built to withstand domestic service environments. Protection features include a double mechanical seal with silicon carbide and alumina graphite faces to prevent liquid from entering the motor housing. Rated for 40°C maximum liquid temperature, the unit also includes an integrated float switch for automated startup and shutdown.
FEATURES
- Submerged open channel impeller facilitates the passage of solids up to 7 mm in diameter.
- Rugged cast iron EN-GJL 250 construction provides long-term durability in wet installations.
- IECEx certified motor enclosure ensures safe operation in environments requiring Zone 2 protection.
- Dual mechanical seal system utilizing silicon carbide (SiC) and alumina graphite (AL) for safety.
- Single-phase 240v electric motor features integrated thermal protection and an internal capacitor.
- Automatic level control managed by a built-in float switch mounted directly to the motor cover.
- Vertical G 1" 1/4 discharge port designed for seamless integration with domestic drainage lines.
- External surfaces finished with a bi-epoxy 120 µm coating for enhanced corrosion resistance.
SPECIFICATIONS
| Max Flow | 210 L/Min |
| Max Head | 7 m |
| Power | 0.3 kW / 240v |
| Rated Current | 2.3 Amps |
| Suitable For | Residential Drainage |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What type of water is this domestic pump intended for?
Basement flooding, rainwater sumps and domestic seepage are suitable duties for DRBLUE40_2_G32VMGEX when handling slightly dirty water in domestic drainage systems.
Which solids passage does its impeller support?
An open-channel impeller passes suspended solids up to 7 mm through DRBLUE40 2 G32VMGEX during residential drainage operation during sump operation.
What motor output and supply are required?
The 0.3 kW single-phase motor in DRBLUE40-2-G32VMGEX runs on a 240 V supply for light drainage tasks for residential pumping.
How does automatic operation work as the liquid level changes?
A built-in float switch manages automatic start and stop cycles on DRBLUE40/2/G32VMGEX without requiring manual level switching during automatic operation.
Which construction protects the motor from water ingress?
The motor is protected by dual mechanical seals with silicon carbide and alumina graphite faces in DRBLUE402G32VMGEX during submerged service.
