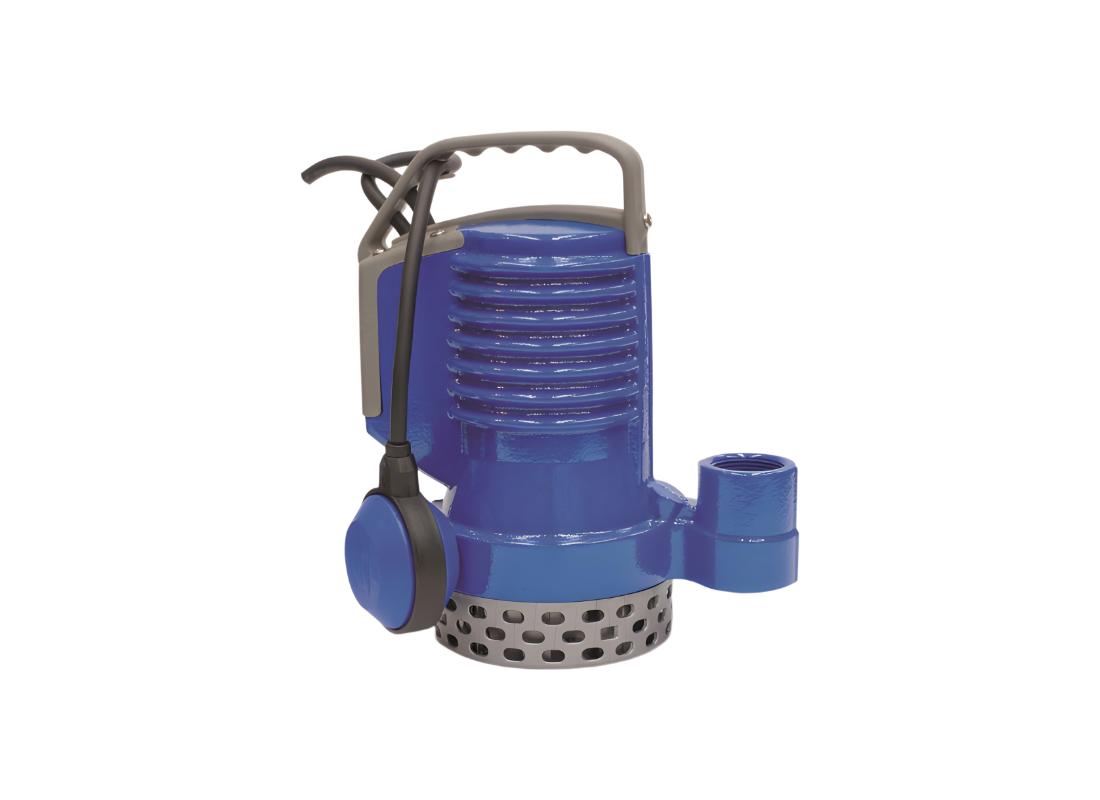

Zenit DRBLUE50/2/G32VMGEX Cast Iron 0.37kW Submersible Drainage Pump for Sump Dewatering with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Sump evacuation in domestic settings requires a submersible unit that can reliably clear rainwater, seepage, and strained wastewater. This model is particularly suited for residential areas where slightly dirty water needs to be moved from collection pits to drainage points. Its design supports continuous operation in wet installations, making it a dependable component for home water management systems.
This unit provides a maximum flow rate of up to 240 L/Min and a maximum hydraulic head of approximately 9.5 m. Its 0.37 kW motor is configured for 240v single-phase supply, delivering balanced hydraulic performance for low-to-medium lift tasks. This performance profile is ideal for applications where consistent evacuation speed is necessary for system safety.
An open impeller is at the core of this pump's hydraulic performance, enabling it to handle small suspended solids effectively. By using a fully submerged impeller design, the unit maintains efficient circulation and minimizes the risk of blockages during standard residential duty. The submerged installation assists motor cooling during continuous operation, ensuring reliable performance without hydraulic compromise.
Mechanical integrity is assured by the cast iron EN-GJL 250 body, paired with an AISI 431 stainless steel shaft for long service life. The pump incorporates a robust sealing arrangement with silicon carbide and alumina graphite to ensure the motor remains dry and protected. Capable of operating in liquids up to 40°C, the unit includes an integrated IECEx float switch for automatic level management.
FEATURES
- Open channel impeller allows for the passage of solid particles up to 7 mm in diameter.
- Cast iron EN-GJL 250 housing provides superior mechanical strength in submersible applications.
- IECEx Zone 2 certification ensures safe operation in potentially hazardous atmospheres.
- High-integrity dual mechanical seal system featuring silicon carbide (SiC) and alumina graphite (AL).
- 240v single-phase motor design with integrated starting capacitor and thermal overload protection.
- Factory-fitted automatic float switch for hands-free operation and dry-run prevention.
- Vertical G 1" 1/4 discharge outlet for simplified connection to household drainage plumbing.
- Stainless steel AISI 431 motor shaft provides high resistance to corrosion and mechanical wear.
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 9.5 m |
| Power | 0.37 kW / 240v |
| Rated Current | 2.8 Amps |
| Suitable For | Sump Evacuation |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which household drainage tasks suit this submersible pump?
For household sump evacuation, DRBLUE50_2_G32VMGEX moves slightly dirty water from rainwater collection points and domestic seepage areas in domestic drainage systems.
What particle size can pass through its impeller?
The open-channel impeller in DRBLUE50 2 G32VMGEX allows suspended particles up to 7 mm to pass through the hydraulic section.
What are the motor and supply requirements?
A 0.37 kW single-phase motor runs on 240 V in DRBLUE50-2-G32VMGEX, supporting household drainage and water transfer for residential pumping.
Which features support automatic level control in domestic sumps?
A factory-fitted float switch controls automatic operation on DRBLUE50/2/G32VMGEX, while the motor includes thermal overload protection as pit water levels change.
What discharge connection fits the unit for domestic pipework?
The AISI 431 stainless steel shaft and dual mechanical seals are specified for DRBLUE502G32VMGEX in submerged domestic service for domestic pipework.
