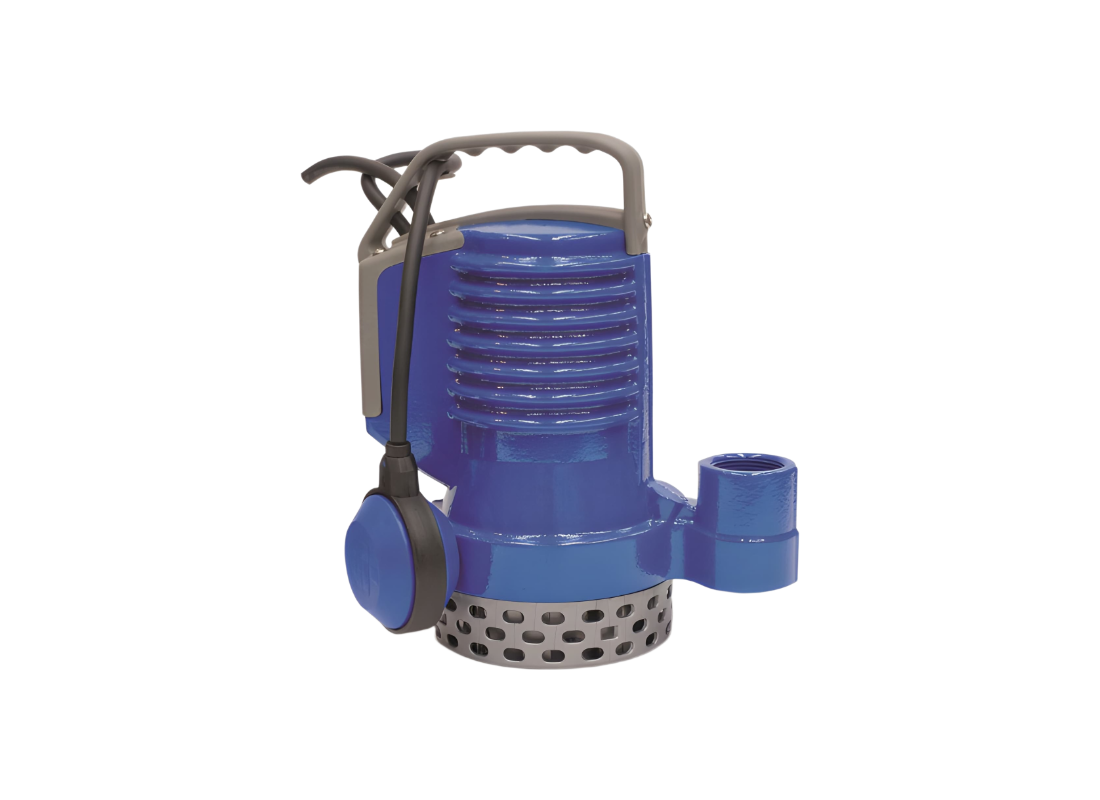

Zenit DRBLUE75/2/G32VMGEX Cast Iron 0.55kW Submersible Drainage Pump for Domestic Wastewater with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Handling slightly dirty water in domestic environments demands a submersible solution with enough power to manage high flow volumes and moderate lift. This pump is engineered for residential rainwater collection, seepage removal, and moving strained wastewater from underground tanks. Its construction is suited for demanding domestic service, offering a reliable choice for maintaining drainage in diverse site conditions.
Performance specifications for this model include a maximum flow of up to 300 L/Min and a maximum head of approximately 12 m. Operating with a 0.55 kW single-phase motor on 240v power, it provides reliable hydraulic turnover to clear sumps rapidly. The pump's performance is tailored for domestic drainage tasks that require a robust balance of volume and lift.
The unit utilizes an open channel impeller designed to stay clear of blockages while handling small debris. This hydraulic configuration promotes smooth liquid handling and helps maintain consistent discharge rates even as liquid characteristics fluctuate. The submerged installation assists motor cooling during continuous operation, which enhances the overall efficiency and longevity of the pump.
Cast iron EN-GJL 250 is used for the main body, providing the structural rigidity needed for long-term submersible duty. Leakage protection is managed by double mechanical seals in silicon carbide and alumina graphite, ensuring the 240v motor remains protected from the external environment. The unit handles liquid temperatures up to 40°C and features an integrated float switch for automatic operation.
FEATURES
- Open channel impeller designed to process slightly dirty water containing solids up to 7 mm.
- Heavy-duty cast iron EN-GJL 250 pump body for maximum durability in wet installations.
- IECEx certified for safe operation in environments requiring Zone 2 explosive protection.
- Dual mechanical seal system with silicon carbide (SiC) and alumina graphite (AL) for safety.
- Single-phase 240v motor featuring built-in thermal protection and starting capacitor.
- Integrated automatic float switch simplifies installation and provides hands-free regulation.
- Vertical G 1" 1/4 threaded discharge port facilitates quick integration into drainage networks.
- External bi-epoxy 120 µm coating provides a robust barrier against corrosion and material wear.
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 12 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.1 Amps |
| Suitable For | Domestic Slightly Dirty Water |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 32 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which domestic applications are supported by this model?
Rainwater collection and seepage removal suit DRBLUE75_2_G32VMGEX, which handles slightly dirty domestic water from underground tanks and sumps in domestic drainage systems.
What maximum particle size can the pump pass?
Suspended solids up to 7 mm can pass through the open-channel impeller in DRBLUE75 2 G32VMGEX during domestic pumping duties.
Which motor rating and voltage are specified?
The 0.55 kW single-phase motor in DRBLUE75-2-G32VMGEX operates on a 240 V supply for sump and rainwater removal for residential pumping.
How are start and stop cycles controlled?
An integrated float switch manages automatic starting and stopping on DRBLUE75/2/G32VMGEX as water levels rise or fall in the sump.
What materials are used for the pump body and seals?
The 40°C liquid-temperature limit and integrated float switch support automatic sump drainage with DRBLUE752G32VMGEX as sump levels rise and fall.
