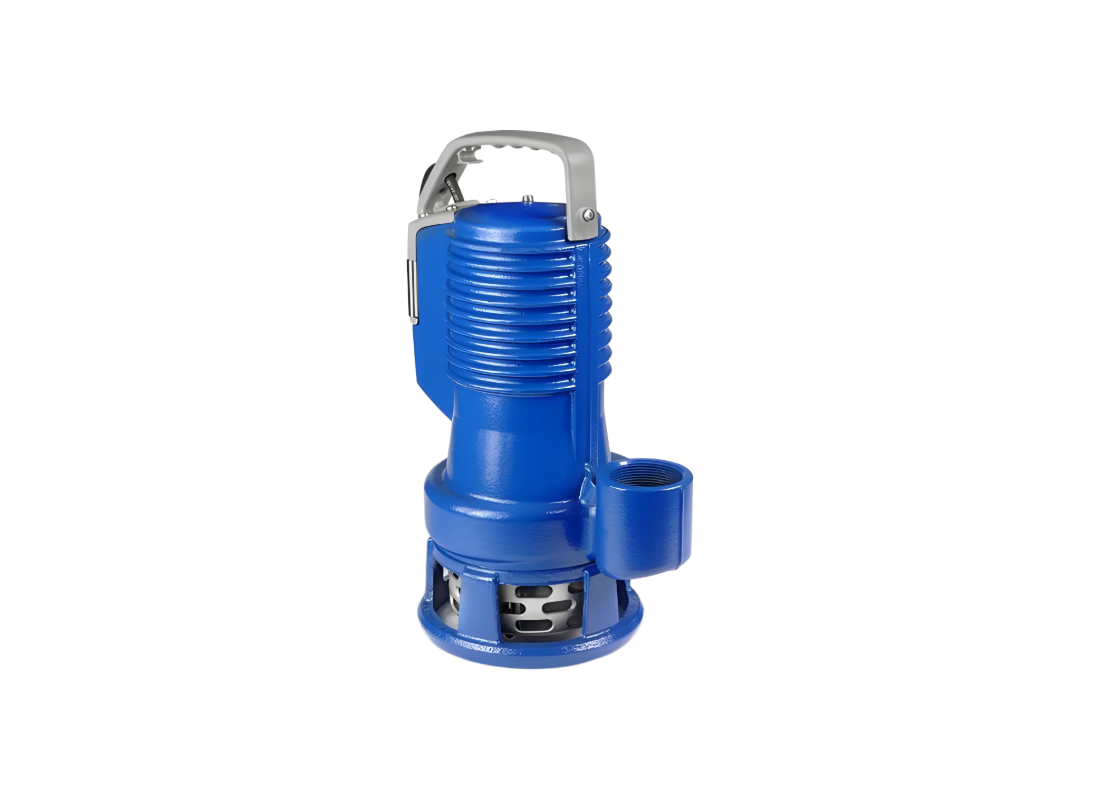

Zenit DRBLUEP150/2/G50VTEX Cast Iron Three-Phase Wastewater Pump for Industrial Drainage with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Industrial drainage systems requiring high efficiency and three-phase power benefit from this specialized Zenit submersible solution. Designed for clearing soiled liquids from industrial sumps, rainwater pits, and groundwater collection areas, this unit thrives in rugged professional environments. Its three-phase configuration is ideal for sites where electrical stability and continuous duty are primary operational requirements.
This model delivers a maximum flow rate of up to 600 L/Min and reaches a maximum hydraulic head of approximately 14.4 m. The 1.1 kW motor is optimized for 415v three-phase power, providing high starting torque and balanced load characteristics for industrial duty cycles. This technical performance ensures rapid liquid turnover while maintaining superior operational efficiency across the operating range.
An open channel impeller is utilized to handle industrial slightly dirty water containing small suspended solids efficiently. This hydraulic design minimizes the risk of internal blockages and ensures consistent flow behavior even as liquid characteristics vary during drainage. The submerged installation assists motor cooling during continuous operation, allowing the unit to maintain peak performance during intensive pumping tasks.
Construction features a robust cast iron EN-GJL 250 body and a stainless steel AISI 431 shaft for high mechanical durability. Protection is provided by a high-grade dual mechanical seal system involving silicon carbide to prevent liquid from entering the motor enclosure. The pump is rated for liquid temperatures up to 40°C and is IECEx Zone 2 certified for use in hazardous industrial atmospheres.
FEATURES
- Three-phase 415v motor configuration optimized for industrial efficiency and continuous duty.
- Cast iron EN-GJL 250 housing provides maximum structural support in submersible service.
- IECEx certified for safe operation in hazardous environments requiring Zone 2 protection.
- High-performance dual mechanical seal system utilizing silicon carbide (SiC) faces.
- Open channel impeller designed to process slightly dirty industrial slightly dirty water.
- Vertical G 2" (50 mm) discharge port allows for seamless integration into drainage networks.
- Stainless steel motor shaft ensures high resistance to wear and environmental corrosion.
- Internal thermal protection sensors safeguard the three-phase motor against overheating.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 14.4 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.2 Amps |
| Suitable For | Industrial Drainage |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the impeller handle solids in wastewater?
Slightly dirty water and wastewater from collection pits can be transferred using an open-channel impeller in DRBLUEP150_2_G50VTEX, including from industrial sumps.
Which wastewater and runoff applications suit this pump?
Industrial sumps, rainwater pits and groundwater collection areas suit DRBLUEP150 2 G50VTEX, which is designed to transfer slightly dirty water.
What motor output and current rating apply to this model?
A 1.1 kW motor powered by 415 V three-phase drives DRBLUEP150-2-G50VTEX for industrial sump and rainwater pit drainage at the installation site.
What performance figures describe this pump's drainage capacity?
DRBLUEP150/2/G50VTEX is intended for wastewater drainage and collection from pits and submerged installations, provided the pumped liquid matches the service conditions described for this model.
Which seal design is used for submerged service?
Two silicon carbide mechanical seals (2SiC) help limit liquid ingress around the motor compartment on DRBLUEP1502G50VTEX during submerged drainage from collection pits.
