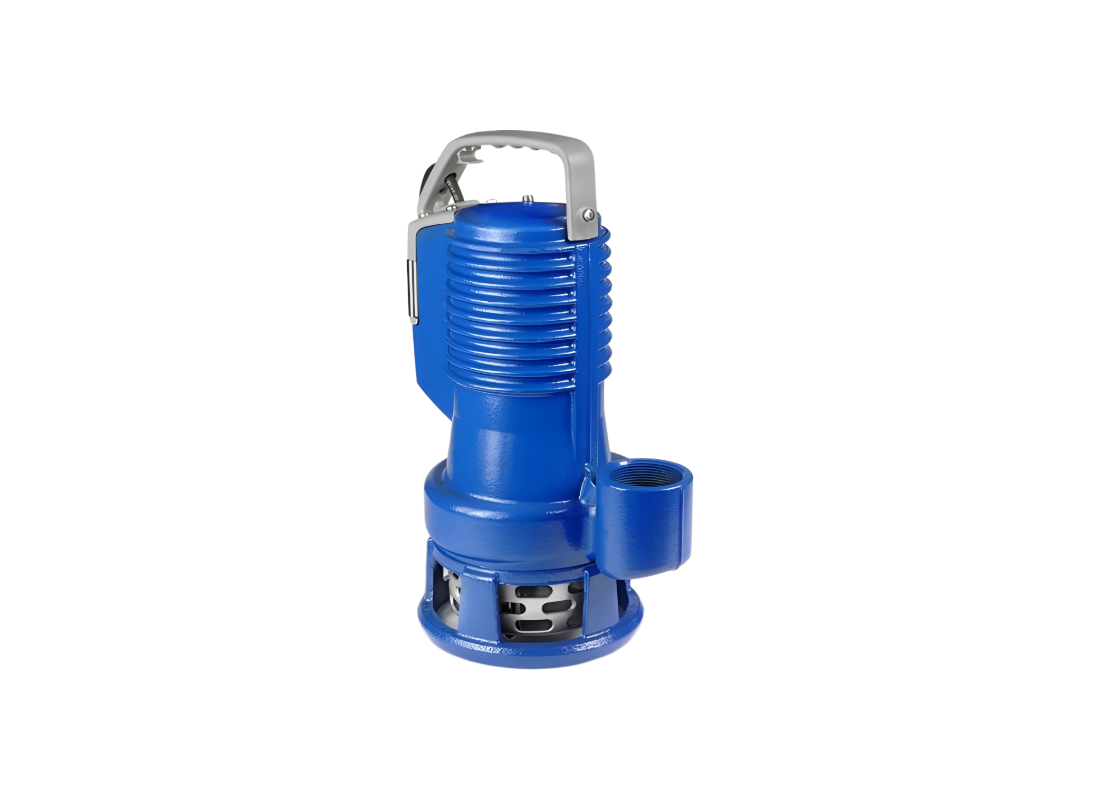

Zenit DRBLUEP200/2/G50VMEX Cast Iron 1.5kW Submersible Wastewater Pump for Commercial Drainage with Open Impeller

Industrial applications involving slightly dirty water require high-capacity submersible pumps capable of handling high turnover rates and substantial lift. This Zenit model is designed for professional drainage, rainwater runoff evacuation, and large-scale seepage removal from underground structures. Its heavy-duty construction makes it a preferred choice for sites where maintaining clear sumps is critical to operations.

Hydraulic capability is a defining feature of this unit, delivering a maximum flow of up to 690 L/Min and approximately 17 m of maximum head. Driven by a powerful 1.5 kW motor on 240v single-phase power, it provides the hydraulic force needed for demanding professional drainage tasks. This performance profile ensures that even large volumes of liquid are cleared reliably from collection points.

At the heart of the pump is an open channel impeller, specifically engineered to pass slightly soiled liquids containing small suspended solids. This design facilitates smooth liquid handling while minimizing the risk of hydraulic blockages common in wastewater service. The submerged installation assists motor cooling during continuous operation, supporting long operational life during heavy duty.

Mechanical design features a rugged cast iron EN-GJL 250 body paired with a stainless steel AISI 431 shaft for superior durability. The motor is protected by a high-integrity double mechanical seal system using silicon carbide to ensure moisture remains outside the internal housing. Rated for liquid temperatures up to 40°C, the unit is IECEx certified for Zone 2 safety and features a 50 mm vertical discharge.

FEATURES

• Professional open impeller handles soiled water containing small suspended solids.
• Rugged cast iron EN-GJL 250 construction provides high structural durability and support.
• IECEx certified motor enclosure for safe operation in potentially hazardous Zone 2 areas.
• Dual mechanical seal arrangement featuring high-grade silicon carbide (SiC) protection.
• Powerful 1.5 kW single-phase 240v motor for high-volume industrial drainage tasks.
• Vertical G 2" threaded discharge outlet facilitates connection to professional plumbing.
• AISI 431 stainless steel shaft ensures high mechanical strength and precise alignment.
• Bi-epoxy 120 µm external coating offers enhanced resistance to corrosive environments.
