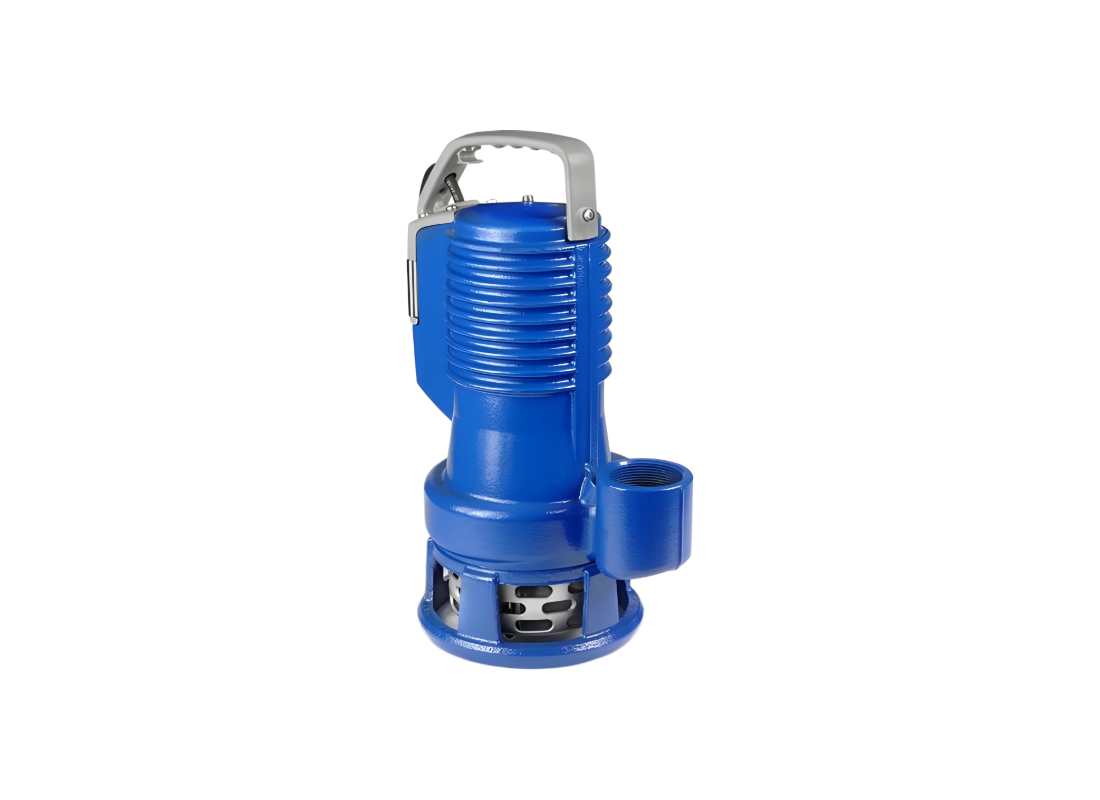

Zenit DRBLUEP200/2/G50VTEX Cast Iron Three-Phase Wastewater Pump for Commercial Drainage with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Industrial drainage tasks requiring high lift and three-phase power are best served by a professional submersible unit designed for reliability and efficiency. This model is engineered for industrial drainage, rainwater collection pits, and large-scale groundwater transfer in professional environments. Its three-phase motor configuration provides the operational stability and high torque necessary for heavy-duty submersible service.
This model achieves a maximum flow rate of up to 690 L/Min and approximately 17 m of maximum hydraulic head. Optimized for 415v three-phase power, the 1.5 kW motor delivers balanced performance and high start-up torque, ensuring consistent discharge under varying load conditions. This combination of volume and lift makes it a powerful choice for professional sites requiring rapid liquid turnover.
Hydraulic design features an open channel impeller, configured to process slightly soiled liquids without clogging. This configuration is essential for industrial environments where drainage water may contain small suspended solids or debris. The submerged installation assists motor cooling during continuous operation, maintaining thermal stability during intensive duty cycles.
Structural construction utilizes heavy cast iron EN-GJL 250 for the body and a high-strength stainless steel AISI 431 shaft. The internal motor is protected by a double mechanical seal system with silicon carbide faces, providing superior resistance to moisture ingress compared to standard arrangements. Rated for 40°C liquid temperatures, the unit is IECEx certified for Zone 2 safety and features a 50 mm vertical outlet.
FEATURES
- Three-phase 415v motor configuration provides superior operational efficiency and stability.
- Cast iron EN-GJL 250 housing offers high mechanical strength for industrial installations.
- IECEx Zone 2 certified motor enclosure for safe duty in potentially explosive atmospheres.
- Double mechanical seal system featuring silicon carbide (SiC) for high-integrity sealing.
- Open channel impeller handles industrial drainage with high hydraulic efficiency.
- High-power 1.5 kW motor designed for rapid evacuation of large volume storage pits.
- Vertical G 2" threaded discharge facilitates easy connection to professional pipework.
- AISI 431 stainless steel shaft ensures long-term alignment precision and wear resistance.
SPECIFICATIONS
| Max Flow | 690 L/Min |
| Max Head | 17 m |
| Power | 1.5 kW / 415v |
| Rated Current | 4.3 Amps |
| Suitable For | Industrial Drainage |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What performance figures describe this pump's drainage capacity?
DRBLUEP200_2_G50VTEX is intended for wastewater drainage and collection from pits and submerged installations, provided the pumped liquid matches the service conditions described for this model.
Which site drainage duties match this pump's design?
Industrial drainage and rainwater pits suit DRBLUEP200 2 G50VTEX, a three-phase submersible unit that transfers slightly dirty water from collection points.
Which motor rating and electrical supply does it use?
A 1.5 kW motor powered by 415 V three-phase drives DRBLUEP200-2-G50VTEX during industrial drainage and rainwater collection pit evacuation at industrial sites.
Which mechanical seals are fitted to this pump?
The two silicon carbide mechanical seals (2SiC) on DRBLUEP200/2/G50VTEX work alongside Class F insulation and IP68 protection to protect the motor during submerged operation.
Which impeller design is used for drainage?
The open-channel impeller on DRBLUEP2002G50VTEX handles slightly dirty water containing small suspended solids during drainage from industrial collection pits and sumps.
