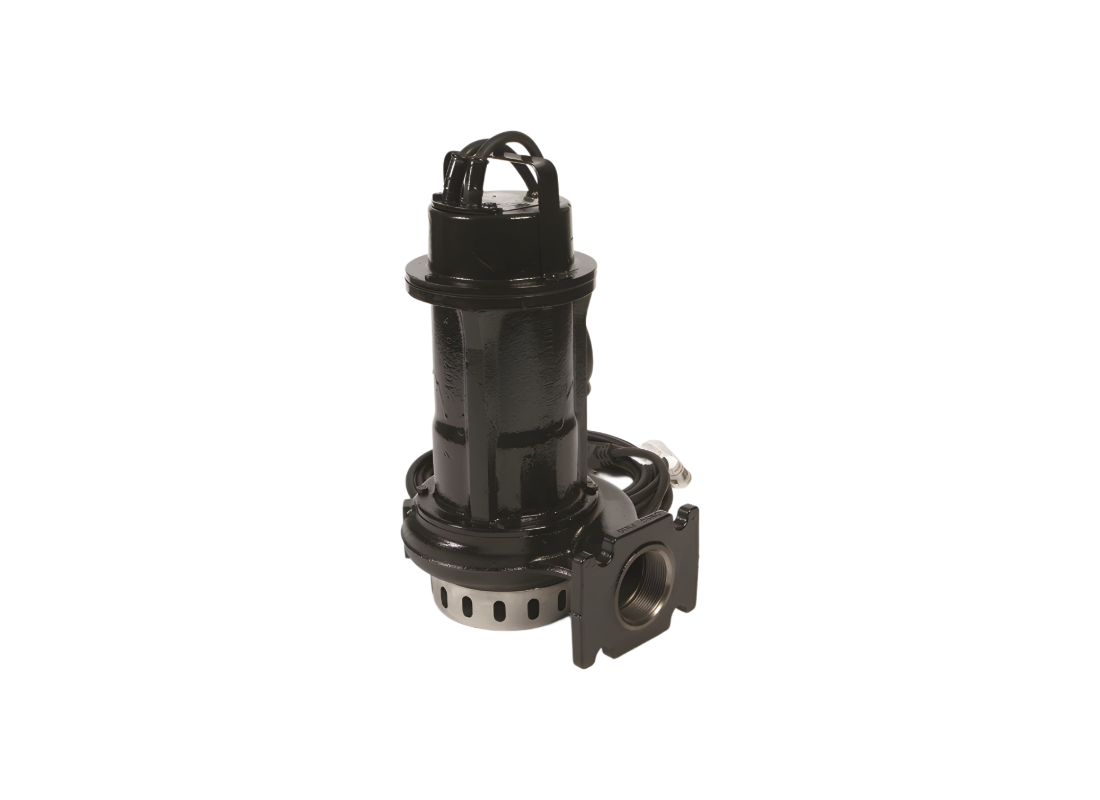

Zenit DRE100/2/G50HMSIC A0 Cast Iron 0.88kW Submersible Drainage Pump for Slightly Dirty Water with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Managing domestic slightly dirty water requires a specialized submersible solution capable of clearing rainwater and seepage from household collection pits. This Zenit model is designed for residential service, providing efficient hydraulic turnover for liquids containing small suspended solids. Its construction supports reliable continuous operation, making it an essential component for residential drainage and water transfer systems.
Capable of reaching a maximum flow of up to 540 L/Min and a maximum head of approximately 12.5 m, this pump offers substantial turnover for domestic sumps. Configured for 240v single-phase power, the 0.9 kW motor provides the hydraulic lift required for common residential transfer distances. This balance of volume and pressure ensures that storage tanks are cleared efficiently while maintaining electrical stability.
The unit incorporates an open channel impeller, engineered to process slightly soiled liquids without clogging. This hydraulic configuration is ideal for domestic duty where liquids may contain particulates that would compromise standard centrifugal designs. The submerged installation assists motor cooling during continuous operation, which enhances the overall longevity and efficiency of the pump.
Mechanical integrity is provided by the cast iron EN-GJL 250 body and a stainless steel motor shaft for superior corrosion resistance. Motor safety is ensured by a mechanical seal in silicon carbide with an auxiliary lip seal to prevent liquid ingress. Rated for liquids up to 40°C, the unit features a 50 mm vertical discharge and is built for professional-grade domestic service.
FEATURES
- Open channel impeller designed to process domestic slightly dirty water and seepage.
- Rugged cast iron EN-GJL 250 construction ensures structural stability in wet sumps.
- Mechanical seal in silicon carbide with auxiliary lip seal for enhanced protection.
- 0.9 kW single-phase 240v motor includes built-in thermal protection and capacitor.
- Vertical G 2" discharge port facilitates seamless connection to standard plumbing.
- AISI 431 stainless steel shaft ensures precise rotation and resistance to mechanical wear.
- Bi-epoxy 120 µm surface coating protects the external casting from environmental damage.
- Submersible design rated for continuous S1 operation in household drainage pits.
SPECIFICATIONS
| Max Flow | 540 L/Min |
| Max Head | 12.5 m |
| Power | 0.88 kW / 240v |
| Rated Current | 6.5 Amps |
| Suitable For | Domestic Slightly Dirty Water |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the impeller handle solids in wastewater?
Slightly soiled liquids containing small suspended solids pass through the open-channel impeller in DRE100_2_G50HMSIC_A0 during domestic and site drainage from collection pits.
Which wastewater and runoff applications suit this pump?
Household pits and rainwater drainage suit DRE100 2 G50HMSIC A0, which transfers slightly dirty water during domestic sump evacuation from domestic collection points.
Which safeguards protect the motor during operation?
For submerged service, Class F insulation, IP68 protection and built-in thermal protection are combined in DRE100-2-G50HMSIC-A0 for drainage installations in household and site sumps.
What performance figures describe this pump's drainage capacity?
Maximum flow is 540 L/Min and maximum head is 12.5 m for DRE100/2/G50HMSIC/A0, driven by a 0.9 kW motor for drainage work.
Which seal design is used for submerged service?
Liquid ingress is limited by the two silicon carbide mechanical seals (2SiC) on DRE1002G50HMSICA0 to the motor compartment during submerged pumping in drainage pits.
