SKU: 711318

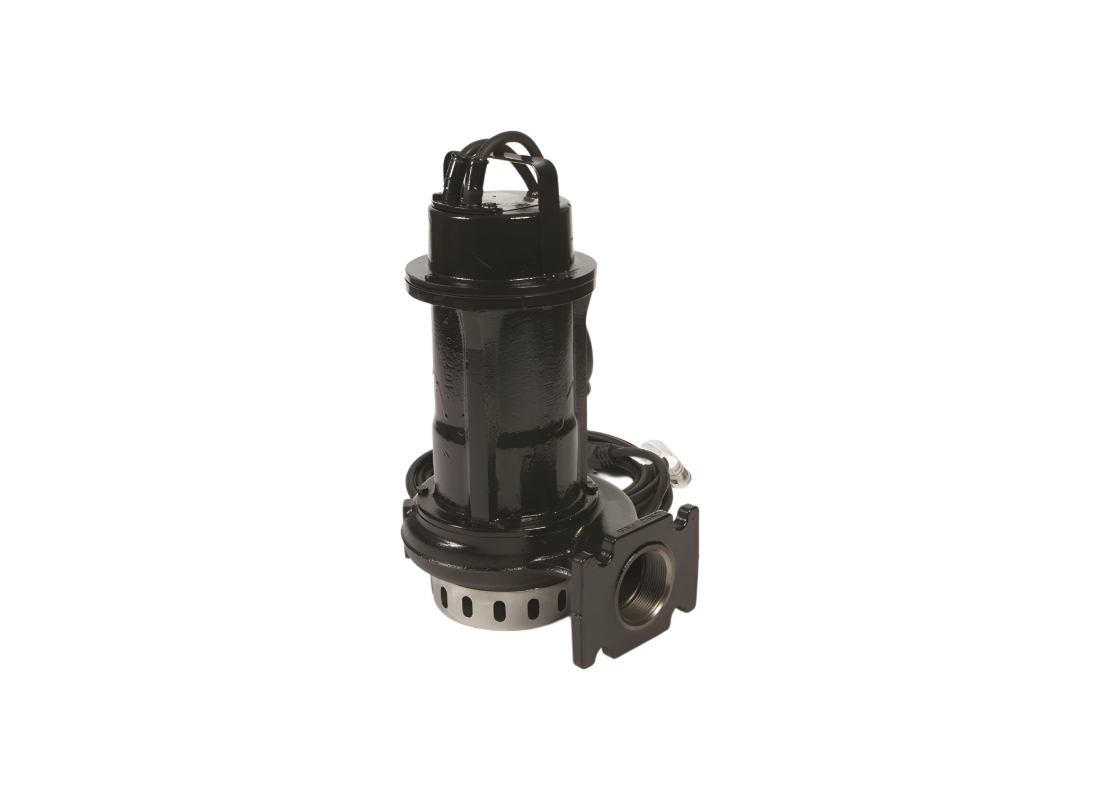

Zenit DRE200/2/G50HMSIC A0 Cast Iron 1.5kW Submersible Drainage Pump for Domestic Wastewater with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Managing domestic slightly dirty water in high-volume scenarios requires a professional submersible solution with enough power to manage intense duty cycles. This Zenit model is ideal for residential sites where rainwater runoff, seepage, and groundwater collection demand consistent evacuation from large sumps. Its construction is tailored for domestic service, providing a reliable and durable solution for household water management systems.
Performance specifications include a maximum flow rate of up to 720 L/Min and approximately 18.1 m of maximum head. Driven by a 1.5 kW motor on 240v single-phase power, this unit delivers high hydraulic turnover for residential collection points. This balance of power and lift ensures that large volumes of liquid are cleared efficiently, providing peace of mind during heavy rainfall or high inflow events.
An open channel impeller is at the core of the pump's hydraulic performance, enabling it to process soiled liquids without risk of blockage. This design facilitates smooth liquid handling while maintaining high turnover efficiency during standard residential service. The submerged installation assists motor cooling during continuous operation, supporting reliable operation and long structural life.
Structural integrity is assured by the cast iron EN-GJL 250 body and a high-strength AISI 431 stainless steel shaft. Protection features include a mechanical seal in silicon carbide with an auxiliary lip seal to prevent liquid from compromising the motor enclosure. Rated for liquids up to 40°C, the unit features a 50 mm vertical discharge and is designed for heavy-duty domestic submersible service.
FEATURES
- Open channel impeller designed for high-capacity processing of slightly dirty water.
- Rugged cast iron EN-GJL 250 construction provides long-term support in wet sumps.
- Mechanical seal in silicon carbide with auxiliary lip seal for enhanced protection.
- Powerful 1.5 kW single-phase 240v motor includes built-in thermal protection.
- Vertical G 2" threaded discharge facilitates connection to high-volume residential plumbing.
- AISI 431 stainless steel shaft ensures excellent shaft alignment and wear resistance.
- Bi-epoxy 120 µm coating protects the casting from environmental and chemical wear.
- Submersible design rated for continuous duty in large domestic water collection pits.
SPECIFICATIONS
| Max Flow | 720 L/Min |
| Max Head | 18.1 m |
| Power | 1.5 kW / 240v |
| Rated Current | 9.3 Amps |
| Suitable For | Domestic Slightly Dirty Water |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What types of collected water can this pump transfer?
Residential sumps and rainwater runoff are suitable duties for DRE200_2_G50HMSIC_A0, which transfers slightly dirty water from collection points for domestic drainage service.
Which seal design is used for submerged service?
The two silicon carbide mechanical seals (2SiC) on DRE200 2 G50HMSIC A0 limit liquid ingress to the motor during submerged pumping.
How does the impeller handle solids in wastewater?
An open-channel impeller provides the hydraulic passage in DRE200-2-G50HMSIC-A0, handling slightly dirty water during wastewater drainage and site dewatering from sumps.
What power supply is required for this pump?
A 1.5 kW motor powered by 240 V single-phase drives DRE200/2/G50HMSIC/A0 during drainage from residential sumps and rainwater collection points.
What maximum head and flow figures are provided?
DRE2002G50HMSICA0 has maximum flow of 720 L/Min and amaximum headrating of 18.1 m for hydraulic selection.
