SKU: 711320

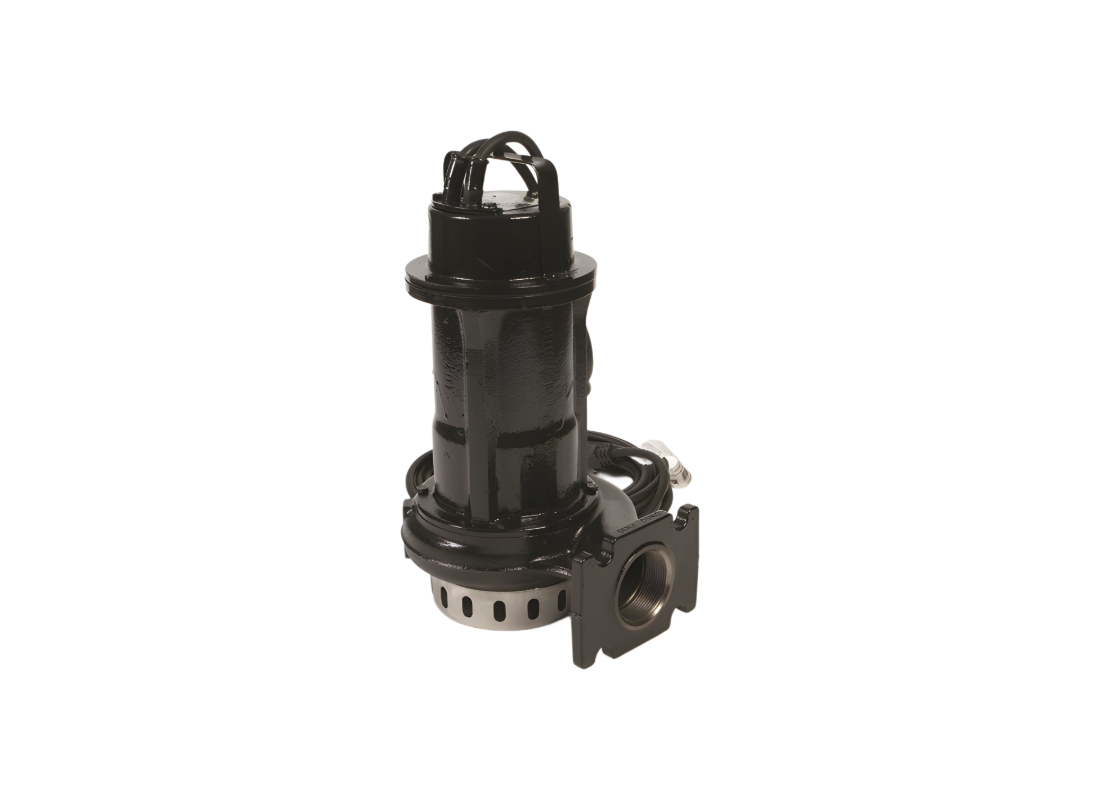

Zenit DRE200/2/G50HTSIC A0 Cast Iron Three-Phase Drainage Pump for Industrial Wastewater with Open Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Industrial drainage systems requiring high lifting capacity and efficient three-phase power benefit from this specialized professional submersible pump. Engineered for clearing soiled liquids from industrial pits, large-scale rainwater collection areas, and groundwater collection points, this model thrives in rugged duty. Its three-phase configuration is ideal for professional environments where electrical stability and motor efficiency are paramount for operational uptime.
This unit provides a maximum flow rate of up to 720 L/Min and reaches approximately 18.1 m of maximum hydraulic head. The 1.5 kW motor is configured for 415v three-phase power, providing high starting torque and balanced load behavior for continuous industrial service. This technical profile ensures rapid liquid turnover across the operating range, maintaining system safety during high inflow events.
The hydraulic design utilizes an open channel impeller, specifically engineered to pass industrial slightly dirty water containing small suspended solids. This configuration promotes consistent discharge performance while minimizing the risk of hydraulic clogging. The submerged installation assists motor cooling during continuous operation, supporting reliable duty cycles in professional pits.
Construction material consists of heavy cast iron EN-GJL 250, providing high structural strength for demanding wet installations. Leakage protection is managed by a mechanical seal in silicon carbide with an auxiliary lip seal for enhanced integrity. Rated for liquid temperatures up to 40°C, the unit features a 50 mm vertical discharge port and is built for long-term industrial service.
FEATURES
- Three-phase 415v motor configuration optimized for industrial stability and efficiency.
- Cast iron EN-GJL 250 body provides maximum mechanical durability in wet duty.
- Mechanical seal in silicon carbide with auxiliary lip seal for enhanced protection.
- Open channel impeller handles soiled industrial liquids with high turnover.
- 1.5 kW motor designed for rapid clearance of high-volume industrial drainage pits.
- Vertical G 2" threaded discharge for seamless integration into professional networks.
- Stainless steel AISI 431 shaft ensures long-term alignment accuracy and wear resistance.
- Internal thermal protection sensors safeguard the three-phase motor against overheating.
SPECIFICATIONS
| Max Flow | 720 L/Min |
| Max Head | 18.1 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.5 Amps |
| Suitable For | Industrial Drainage |
| Body Material | Cast iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum flow and head can this model reach?
DRE200_2_G50HTSIC_A0 has maximum flow of 720 L/Min and amaximum headrating of 18.1 m for hydraulic selection.
What drainage tasks is this model designed to handle?
Industrial pits and groundwater removal suit DRE200 2 G50HTSIC A0, a three-phase submersible pump for transferring soiled liquids on industrial sites.
Which supply configuration is used by the motor?
Use the specified 415 V three-phase connection for DRE200-2-G50HTSIC-A0, checking the installation supply before energising the pump at the site.
Which impeller design is used for drainage?
An open-channel impeller in DRE200/2/G50HTSIC/A0 handles slightly soiled water containing small suspended solids during drainage from sumps and excavation pits.
What protection features are built into this pump?
For submerged service, Class F insulation, IP68 protection and built-in thermal protection are combined in DRE2002G50HTSICA0 for drainage installations in industrial sumps.
