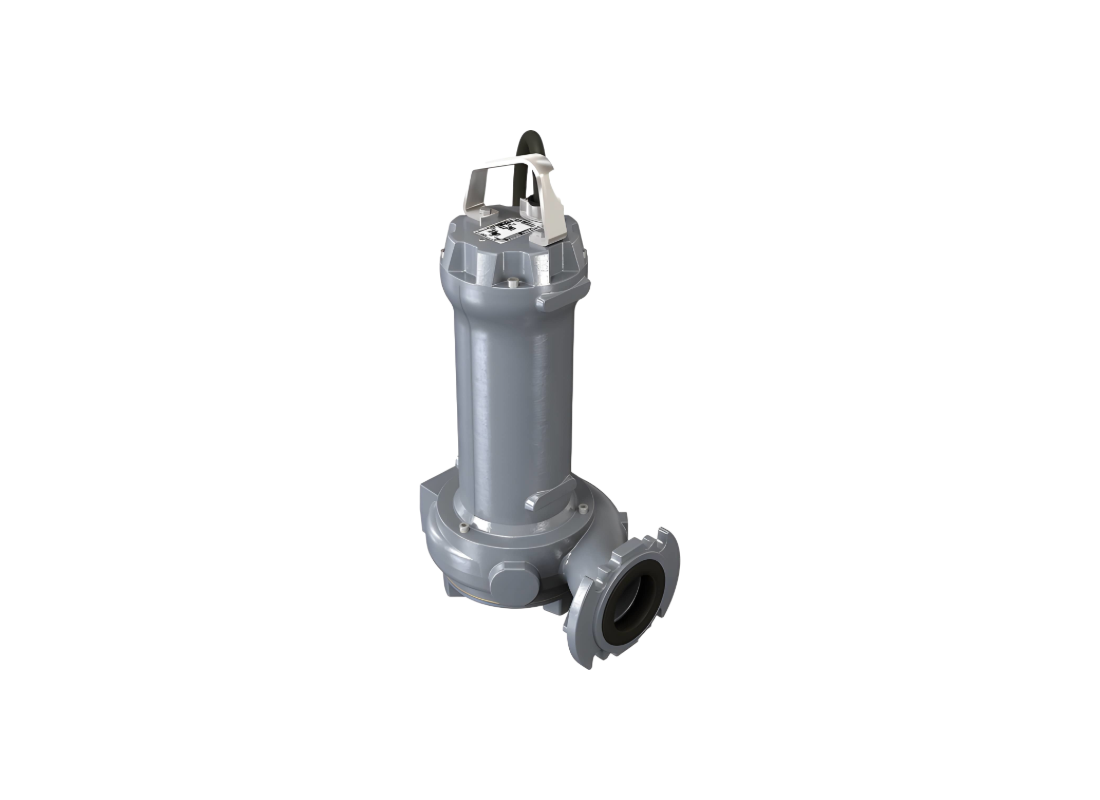

Zenit DRG1000/2/80HA0FTEX Cast Iron Drainage Pump for Stormwater with Multi-channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Stormwater networks and wastewater treatment facilities frequently encounter demanding operational loads that require uninterrupted pumping capacity. The Zenit DRG 1000/2/80HA0FTEX is a 7.5 kW submersible drainage pump engineered for these environments, with ATEX Ex d certification enabling safe deployment in potentially explosive atmospheres. This unit is specified for storm water, wastewater treatment plant influent, sewage systems, and low to medium density activated sludges, and is compatible with free-standing installation using a separate ring stand accessory.
Maximum hydraulic performance for this model reaches 34.9 metres of head and 2706 L/Min of flow, driven by a 415V three-phase motor rated at 13.7 Amps. The motor delivers 7.5 kW of shaft power with direct starting and a starting current of 92.1 Amps. These specifications make the pump suitable for high-volume transfer applications where sustained pressure and flow are required across moderate system resistances.
Solids handling is managed through a multi-channel open impeller configuration that permits free passage of solids up to 40 mm, minimising clogging risk in dirty water applications. The hydraulic design follows UNI EN ISO 9906:2012 standards, ensuring predictable performance across the operating curve. Cast iron EN-GJL 250 forms the primary hydraulic component material, with the impeller manufactured from the same grade for consistent wear characteristics.
The pump casing is constructed from Cast Iron EN-GJL 250 with a bi-epoxy 200 ?m sea water resistant coating applied to all external surfaces. The shaft is manufactured from stainless steel AISI 431, and the sealing arrangement consists of two mechanical seals in silicon carbide (2SiC). Class H insulation and IP68 ingress protection are specified for the motor, which also incorporates thermal protection and a leakage sensor. Cable length is 10 metres with 4G1,5+3x1 conductor configuration, and the unit weighs 79.2 kg excluding cable and stand.
FEATURES
- Multi-channel open impeller design for enhanced solids handling capability
- Bi-epoxy 200 ?m coating provides resistance to sea water and corrosive environments
- Double silicon carbide mechanical seals for reliable containment
- Stainless steel AISI 431 shaft material for corrosion resistance
- NBR gaskets throughout the hydraulic assembly
- Maximum starts per hour: 30 for intermittent duty cycles
- Acoustic pressure level: 70 dB at 1 metre distance
- Requires ZENS9024.006 Ring Stand for free-standing operation
SPECIFICATIONS
| Max Flow | 2706 L/Min |
| Max Head | 34.9 m |
| Power | 7.5 kW / 415v |
| Rated Current | 13.7 Amps |
| Suitable For | Stormwater |
| Body Material | Cast Iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What hazardous-area certification is provided for this pump?
Hazardous-area certification for DRG1000_2_80HA0FTEX is ATEX Ex d, and the pump also has Class H insulation and IP68 protection for submerged operation.
What solids passage is available through the hydraulic section?
A multi-channel open impeller with 40 mm passage handles solids in drainage liquids on DRG1000 2 80HA0FTEX, including high-volume industrial wastewater.
How can this pump be installed in a drainage system?
Free-standing installation of DRG1000-2-80HA0FTEX requires the ZENS9024.006 Ring Stand, and a 10 metre cable is supplied for the electrical connection.
What performance figures describe this pump's drainage capacity?
Maximum flow is 2706 L/Min and maximum head is 34.9 m for DRG1000/2/80HA0FTEX, driven by a 7.5 kW motor for demanding drainage duties.
What casing material protects the hydraulic assembly?
The casing of DRG1000280HA0FTEX is Cast Iron EN-GJL 250, and its rotating assembly uses an AISI 431 stainless steel shaft.
