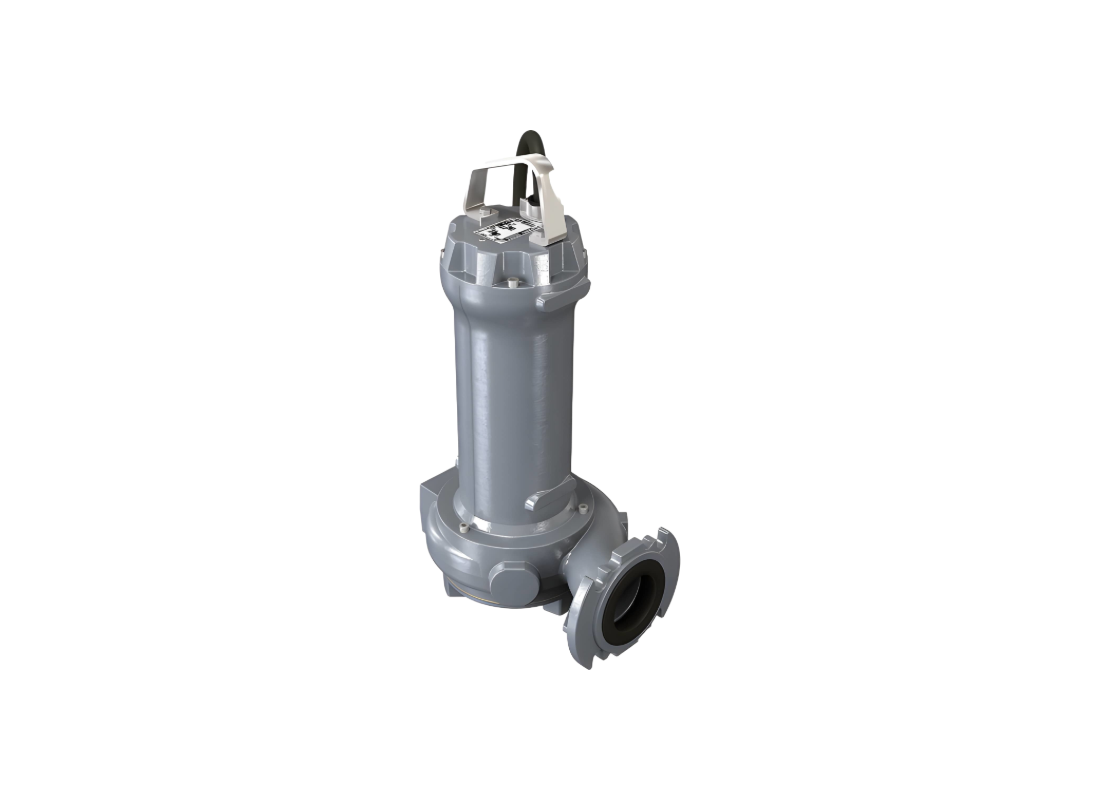

Zenit DRG200/4/80HM0ETEX Cast Iron Drainage Pump for Suspended Solids with Multi-channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Low-head dewatering operations in industrial and municipal settings demand pumps that can maintain performance with minimal energy input. The Zenit DRG 200/4/80HM0ETEX is a 1.5 kW submersible drainage pump suited to these requirements, featuring ATEX Ex d certification for safe operation in hazardous areas. The unit handles storm water, wastewater treatment plant effluent, and liquids containing suspended solids or filaments, and is designed for installation with a dedicated ring stand.
Maximum head for this pump is 8.2 metres with a corresponding flow of 1548 L/Min, powered by a 415V three-phase motor drawing 3.4 Amps. The 1.5 kW motor utilises direct starting with a starting current of 16.1 Amps and produces 10.1 Nm of rated torque. Performance characteristics are suitable for high-volume, low-pressure transfer applications typical of drainage and dewatering operations.
Hydraulic design incorporates a multi-channel open impeller with a free passage of 45 mm, allowing the pump to process solids and fibres commonly found in wastewater streams. The open channel impeller configuration is engineered for efficiency in low-head applications, with the hydraulic system constructed from Cast Iron EN-GJL 250. Performance curve tolerance conforms to UNI EN ISO 9906:2012 standards for reliable system planning.
Construction features a Cast Iron EN-GJL 250 casing with bi-epoxy 200 ?m sea water resistant coating. The shaft is stainless steel AISI 431, and sealing is provided by two mechanical seals in silicon carbide (2SiC). The motor has Class H insulation and IP68 ingress protection, with thermal protection and a leakage sensor included. Cable length is 10 metres with 4G1,5+3x1 configuration, and the pump weighs 55.2 kg. A ZENS9024.007 Ring Stand is required for free-standing operation.
FEATURES
- Multi-channel open impeller with 45 mm solids handling capability
- Hydraulic efficiency rating of 51.0% for low-head applications
- Double silicon carbide mechanical seals for containment integrity
- Stainless steel AISI 431 shaft with corrosion-resistant properties
- Bi-epoxy 200 ?m coating on all cast iron components
- Maximum starts per hour: 30 for operational flexibility
- Direct starting with 16.1 Amps starting current
- Requires ZENS9024.007 Ring Stand for free-standing installation
SPECIFICATIONS
| Max Flow | 1548 L/Min |
| Max Head | 8.2 m |
| Power | 1.5 kW / 415v |
| Rated Current | 3.4 Amps |
| Suitable For | Industrial Drainage |
| Body Material | Cast Iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which mounting accessories are needed for free-standing installation?
A dedicated ring stand is needed for DRG200_4_80HM0ETEX, and the supplied 10 metre cable provides its electrical connection at the site.
Where can this submersible unit be installed for drainage?
Municipal drainage and wastewater effluent can be handled by DRG200 4 80HM0ETEX, whose open-channel impeller passes solids and fibres for high-volume dewatering duties.
How does the hydraulic design accommodate debris?
A multi-channel open impeller provides 45 mm passage on DRG200-4-80HM0ETEX to accommodate solids and fibrous material during municipal wastewater and drainage handling.
What electrical details are important before installation?
Use a 415 V three-phase connection for DRG200/4/80HM0ETEX, whose motor has a rated current of 3.4 A during operation before energising the pump.
What are the maximum flow and head ratings?
DRG200480HM0ETEX has maximum flow of 1548 L/Min and amaximum headrating of 8.2 m for hydraulic selection.
