SKU: 807387

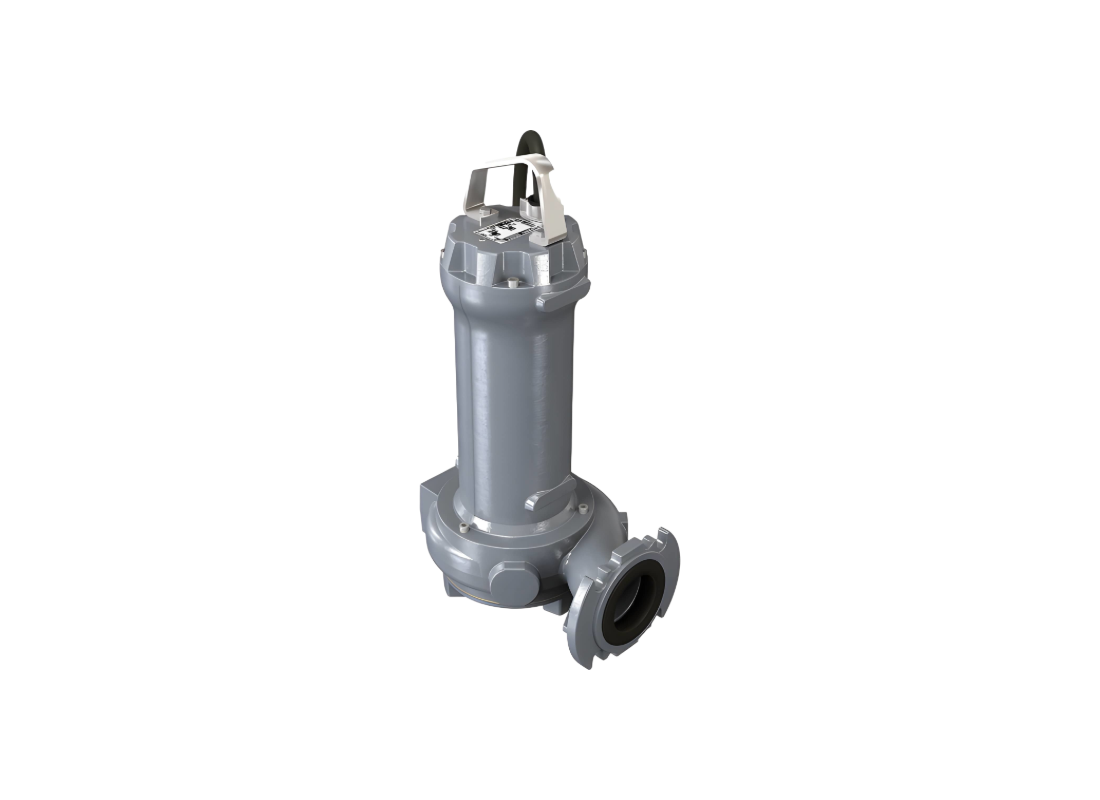

Zenit DRG750/2/80HA0FTEX Cast Iron Drainage Pump for Wastewater Treatment with Multi-channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Professional and industrial wastewater management systems often encounter demanding conditions that require pumps with high efficiency and reliable performance. The Zenit DRG 750/2/80HA0FTEX is a 5.5 kW submersible drainage pump with ATEX Ex d certification, engineered for storm water, wastewater treatment plants, sewage systems, and livestock farm applications. The unit features a multi-channel open impeller and is compatible with ring stand free-standing installation.
Maximum head reaches 25.1 metres with a maximum flow of 2472 L/Min, driven by a 415V three-phase motor drawing 10.8 Amps. The 5.5 kW motor uses direct starting with 77.8 Amps starting current and produces 18.3 Nm of rated torque. These performance characteristics suit high-volume transfer operations with medium head requirements.
Solids handling is managed through an open channel impeller with a free passage of 40 mm, using a multi-channel configuration that maintains hydraulic efficiency. The hydraulic system is constructed from Cast Iron EN-GJL 250, with the impeller of the same material. Performance curve tolerance complies with UNI EN ISO 9906:2012 standards for reliable system design.
Construction consists of a Cast Iron EN-GJL 250 casing with bi-epoxy 200 ?m sea water resistant coating. The shaft is stainless steel AISI 431, and sealing uses two mechanical seals in silicon carbide (2SiC). Motor protection includes Class H insulation, IP68 rating, thermal protection, and a leakage sensor. Cable length is 10 metres with 4G1,5+3x1 configuration, and the unit weighs 71.3 kg. A ZENS9024.006 Ring Stand is required for free-standing operation.
FEATURES
- Multi-channel open impeller with 40 mm solids handling capability
- Hydraulic efficiency of 57.7% for effective energy conversion
- Double silicon carbide mechanical seals for containment integrity
- Stainless steel AISI 431 shaft for corrosion resistance
- Bi-epoxy 200 ?m coating on all cast iron surfaces
- Maximum starts per hour: 30 for flexible operation
- Direct starting with 77.8 Amps starting current
- Requires ZENS9024.006 Ring Stand for free-standing installation
SPECIFICATIONS
| Max Flow | 2472 L/Min |
| Max Head | 25.1 m |
| Power | 5.5 kW / 415v |
| Rated Current | 10.8 Amps |
| Suitable For | Sewer Systems |
| Body Material | Cast Iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which wastewater and runoff applications suit this pump?
Stormwater systems and wastewater plants suit DRG750_2_80HA0FTEX, which transfers solids-laden liquids through its multi-channel open impeller for high-volume stormwater duties.
Which impeller design is used for drainage?
A multi-channel open impeller with 40 mm passage on DRG750 2 80HA0FTEX handles solids in wastewater drainage at stormwater systems and wastewater plants.
Which materials form the casing and rotating shaft?
Cast Iron EN-GJL 250 forms the casing of DRG750-2-80HA0FTEX, and its rotating assembly includes an AISI 431 stainless steel shaft.
What maximum flow and head can this model reach?
Maximum flow is 2472 L/Min and maximum head is 25.1 m for DRG750/2/80HA0FTEX, driven by a 5.5 kW motor for wastewater handling.
What electrical supply and current rating does it require?
Use a 415 V three-phase connection for DRG750280HA0FTEX, whose motor has a rated current of 10.8 A during operation before energising the pump.
