SKU: 711354

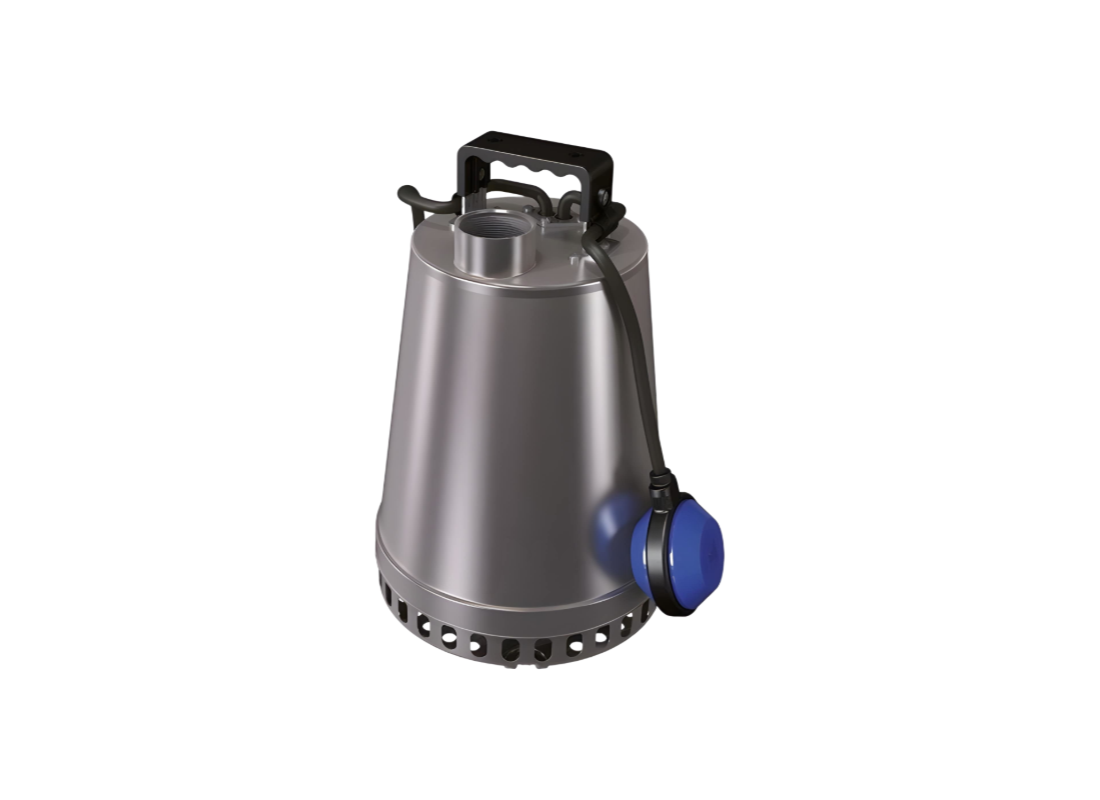

Zenit DRSTEEL55MA Stainless Steel Float Switch Drainage Pump for Pond Drainage with Multi-channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Pond drainage, pit evacuation, and rainwater harvesting systems require pumps that combine corrosion resistance with adequate flow capacity for efficient water transfer. The Zenit DRSTEEL55MA is a 0.55 kW submersible drainage pump constructed from AISI 304 stainless steel, suitable for stormwater dewatering, pond drainage, and rainwater collection applications. The internal cooling system allows operation even when partially submerged, and a standard float switch provides automatic level control.
Performance specifications include a maximum head of 12.4 metres and a maximum flow of 300 L/Min, driven by a 240V single-phase motor drawing 4.3 Amps. The 0.55 kW motor operates at 2900 rpm, providing consistent performance across the operating range. These characteristics suit medium-flow dewatering applications where corrosion resistance is essential.
The open channel impeller design provides a free passage of 12 mm for solids, with the impeller manufactured from AISI 304 stainless steel. The multi-channel configuration maintains hydraulic efficiency while handling minor debris common in stormwater and pond drainage applications. The hydraulic system is constructed entirely from AISI 304 stainless steel for consistent corrosion resistance.
Construction consists of an AISI 304 stainless steel casing and impeller with a chrome-nickel steel lifting handle. The sealing arrangement uses three mechanical seals with food-grade oil lubrication, including a double seal in the oil sump and a V-ring seal. Motor protection includes Class F insulation, IP68 rating, thermal protection, and a capacitor. Cable length is 10 metres with Shuko plug, and the unit weighs 7.7 kg.
FEATURES
- Open channel impeller in AISI 304 stainless steel with 12 mm free passage
- Internal recycle pumped liquid cooling system for partial submersion
- Three mechanical seals with double seal in oil sump and V-ring seal
- AISI 304 stainless steel strainer included
- Stainless steel AISI 431 shaft material
- Maximum immersion depth of 10 metres
- Maximum starts per hour: 30
- Standard float switch on motor cover for automatic operation
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 12.4 m |
| Power | 0.55 kW / 240v |
| Rated Current | 4.3 Amps |
| Suitable For | Stormwater Dewatering |
| Body Material | Stainless Steel AISI 304 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the hydraulic design accommodate debris?
Stainless-steel hydraulics in DRSTEEL55MA use a multi-channel open impeller with 12 mm passage for minor debris during pond drainage and pit evacuation.
What maximum flow and head can this model reach?
Maximum flow is 300 L/Min and maximum head is 12.4 m for DRSTEEL55MA, driven by a 0.55 kW motor for pond and pit drainage.
Can the pump cool its motor when partly submerged?
Even when water levels drop, DRSTEEL55MA uses internal liquid recirculation to cool its motor during partial submersion and drainage from collection pits.
What construction materials are used in this model?
AISI 304 stainless steel forms the casing of DRSTEEL55MA, and its rotating assembly also uses an AISI 304 stainless steel shaft.
What cable is provided for electrical connection?
The supplied 10 metre cable and Shuko plug on DRSTEEL55MA support connection to its specified single-phase power supply at the intended installation point.
