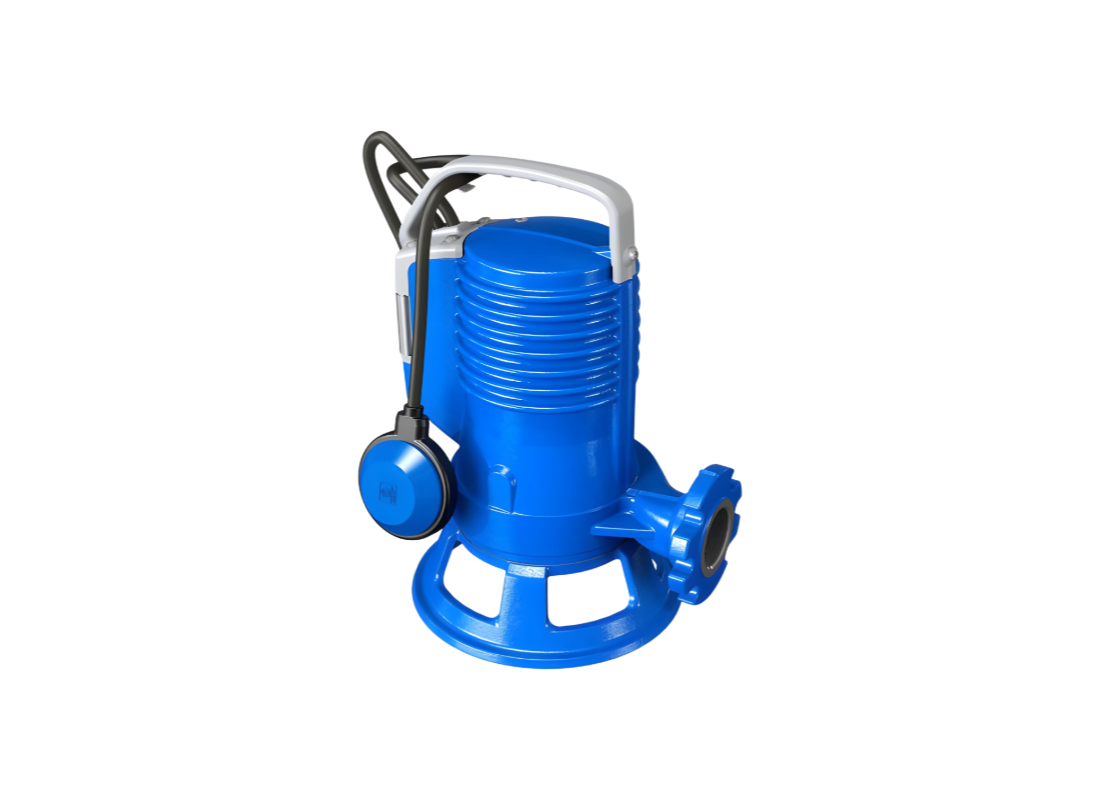

Zenit GRBLUEP100/2/G40HMGEX Cast Iron IECEx Grinder Pump for Fibrous Waste with Open Channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Unstrained civil wastewaters containing fibres and filaments present significant clogging challenges that require specialised pumping solutions. The Zenit GR BluePRO 100/2/G40H A1CM5 is a 0.74 kW submersible grinder pump with IECEx certification for Zone 2 hazardous areas, featuring a high-efficiency grinding system with a rotary knife that slices and smashes solid and fibrous waste. The unit is suitable for residential and light commercial professional settings, with an IECEx float switch included for automatic operation.
Maximum head for this model is 17 metres with a maximum flow of 240 L/Min, driven by a 240V single-phase motor drawing 5.50 Amps. The 0.74 kW motor operates at 2900 rpm with Class F insulation and IP68 ingress protection. These performance characteristics suit low-to-medium flow wastewater applications where grinding capability is essential.
The hydraulic system incorporates an open channel impeller with grinder system, with the impeller manufactured from cast iron. The grinder mechanism consists of a chromium steel cutter and cutting disk (X102 CrMo17 KU) that process all incoming solids, reducing them to pumpable size. The free passage is 0 mm as all solids are processed by the grinding system rather than passed through.
Construction features a Cast Iron EN-GJL 250 casing and hydraulic components with bi-epoxy 120 ?m coating. The shaft is stainless steel AISI 431, and sealing uses two mechanical seals in silicon carbide (2SiC). Motor protection includes thermal protection, a starting capacitor, and a running capacitor. Cable length is 10 metres with Shuko plug, and the unit weighs 19 kg.
FEATURES
- Open channel impeller with grinder system for fibrous waste processing
- Chromium steel cutter and cutting disk X102 CrMo17 KU
- Double silicon carbide mechanical seals for containment integrity
- Stainless steel AISI 431 shaft material
- Bi-epoxy 120 ?m coating on cast iron components
- Maximum starts per hour: 30
- Maximum immersion depth of 10 metres
- IECEx float switch included for automatic level control
SPECIFICATIONS
| Max Flow | 240 L/Min |
| Max Head | 17 m |
| Power | 0.75 kW / 240v |
| Rated Current | 5.5 Amps |
| Suitable For | Civil Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What are the maximum flow and head ratings?
Maximum flow is 240 L/Min, and maximum head is 17 m. on GRBLUEP100_2_G40HMGEX.
Which certification applies to operation in hazardous locations?
IECEx Zone 2 certification applies to GRBLUEP100 2 G40HMGEX, which also has Class F insulation and IP68 protection for submerged operation.
How are fibres and solids reduced during pumping?
A chromium steel cutter and cutting disk in GRBLUEP100-2-G40HMGEX reduce incoming solids before pumping rather than passing them through freely.
Which materials form the casing and rotating shaft?
The casing of GRBLUEP100/2/G40HMGEX is Cast Iron EN-GJL 250, and its rotating assembly uses an AISI 431 stainless steel shaft.
What electrical details are important before installation?
Before connection, match GRBLUEP1002G40HMGEX to 240 V single-phase and allow for rated motor current of 5.5 A at the supply point.
