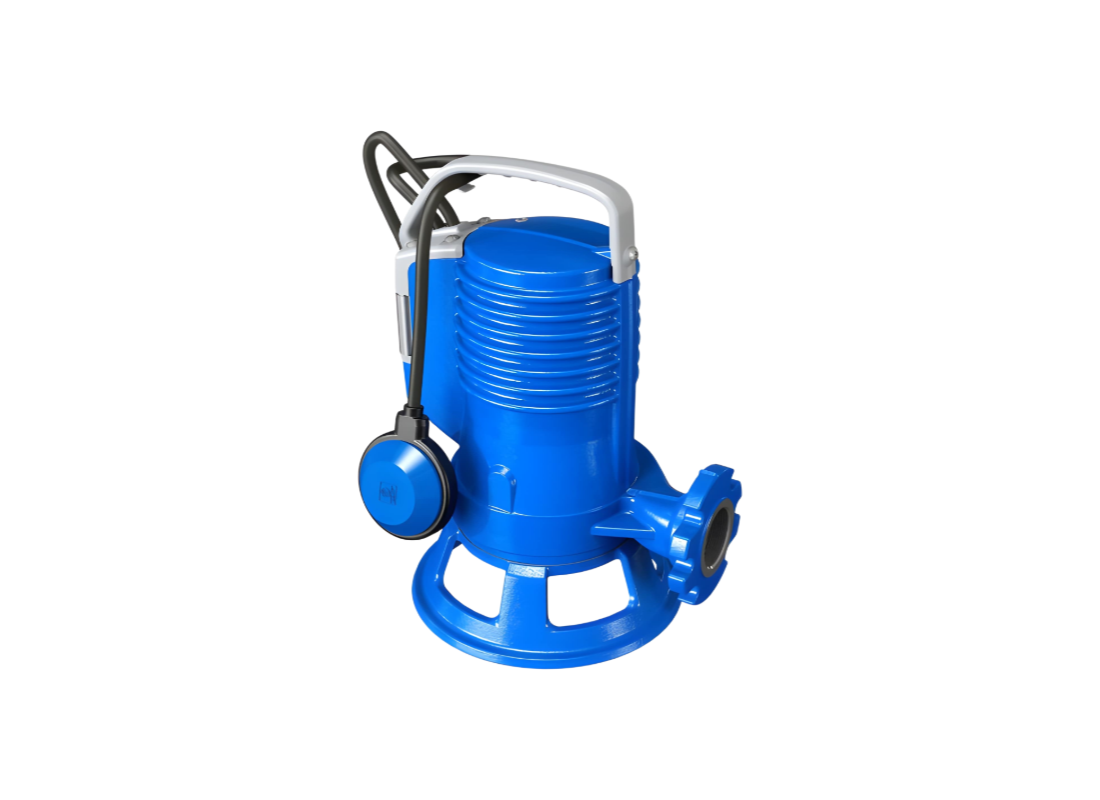

Zenit GRBLUEP200/2/G40HMGEX Cast Iron High Torque Grinder Pump for Heavy Fibres with Open Channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Commercial and professional wastewater applications with high concentrations of tough fibrous solids require pumps with high starting torque and powerful grinding capability. The Zenit GR BluePRO 200/2/G40H A1CM5 is a 1.50 kW submersible grinder pump with IECEx certification for Zone 2 hazardous areas, featuring a heavy-duty grinding system designed to handle tough fibrous solids without locking up. The high starting torque motor and IECEx float switch make it suitable for heavy residential, commercial, and professional applications.
Maximum head reaches 27 metres with a maximum flow of 300 L/Min, driven by a 240V single-phase motor drawing 10.00 Amps. The 1.50 kW motor operates at 2900 rpm with Class F insulation and IP68 ingress protection. These performance characteristics suit medium-flow applications requiring high head and high starting torque capability.
Hydraulic design incorporates an open channel impeller with grinder system, with the impeller manufactured from cast iron. The grinder mechanism uses a chromium steel cutter and cutting disk (X102 CrMo17 KU) that process all incoming solids. Free passage is 0 mm as all solids are processed by the grinding system rather than passed through.
Construction features a Cast Iron EN-GJL 250 casing and hydraulic components with bi-epoxy 120 ?m coating. The shaft is stainless steel AISI 431, and sealing uses two mechanical seals in silicon carbide (2SiC). Motor protection includes thermal protection and a starting capacitor. Cable length is 10 metres with Shuko plug, and the unit weighs 25 kg.
FEATURES
- Open channel impeller with grinder system for fibrous waste processing
- High starting torque motor for tough solid handling
- Chromium steel cutter and cutting disk X102 CrMo17 KU
- Double silicon carbide mechanical seals for containment integrity
- Stainless steel AISI 431 shaft material
- Bi-epoxy 120 ?m coating on cast iron components
- Maximum starts per hour: 30
- IECEx float switch included for automatic operation
SPECIFICATIONS
| Max Flow | 300 L/Min |
| Max Head | 27 m |
| Power | 1.5 kW / 240v |
| Rated Current | 10 Amps |
| Suitable For | Heavy Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What motor output and current rating apply to this model?
Power comes from a 1.50 kW motor configured for 240 V single-phase, with rated current for GRBLUEP200_2_G40HMGEX is 10.0 A during normal pumping.
How does the hydraulic design accommodate debris?
The grinder-equipped open-channel impeller in GRBLUEP200 2 G40HMGEX cuts fibrous solids before discharge, leaving 0 mm free passage for wastewater transfer.
How does this pump handle solids that cannot pass freely?
For fibrous waste, the grinder on GRBLUEP200-2-G40HMGEX uses a chromium steel cutter and disk, reducing solids before pumping through 0 mm free passage.
What drainage tasks is this model designed to handle?
Commercial wastewater containing tough fibrous solids can be handled by GRBLUEP200/2/G40HMGEX, whose grinder reduces incoming material before pumping from collection sumps.
How much water can the pump move at maximum flow?
GRBLUEP2002G40HMGEX has maximum flow of 300 L/Min and amaximum headrating of 27 m for hydraulic selection.
