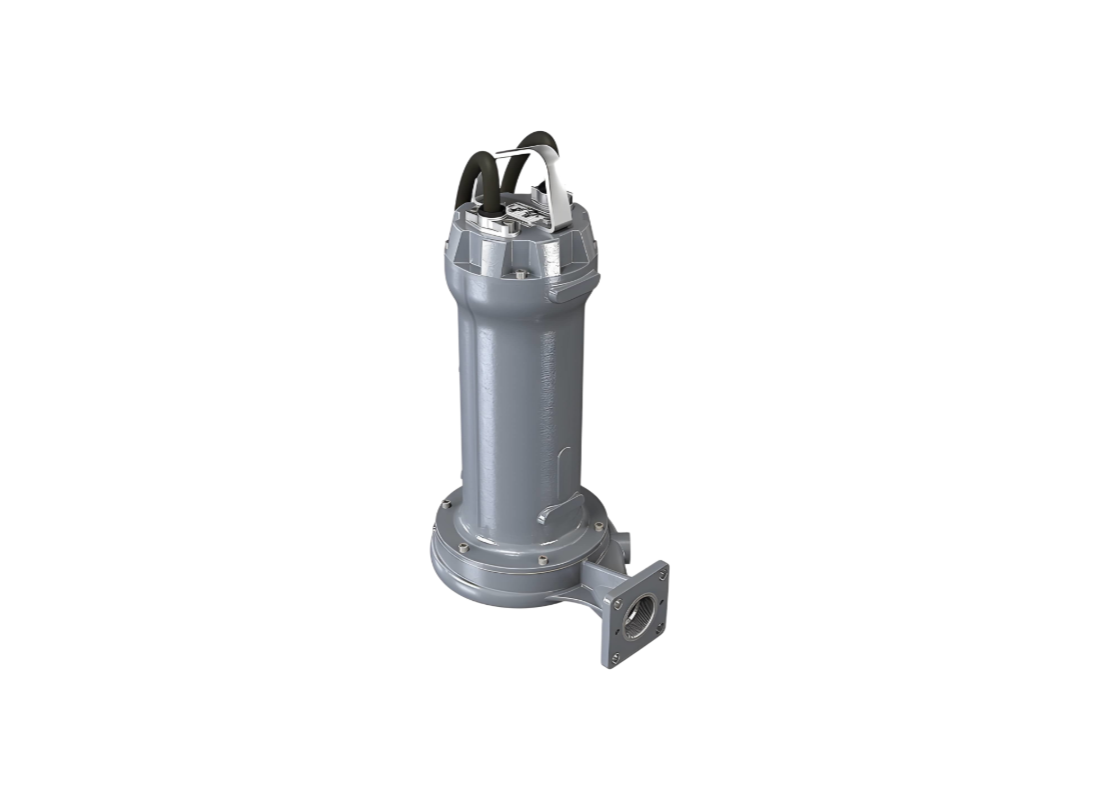

Zenit GRG400/2/G50HD0ETEX Cast Iron Grinder Pump for Industrial Effluents with Multi-channel Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Industrial wastewater, civil sewage, and livestock farm effluents with high solids and fibrous content require pumps that eliminate clogging risk and reduce line resistance. The Zenit GRG 400/2/G50H DOET5 is a 3.0 kW submersible grinder pump with ATEX Zone 1 certification, featuring a heavy-duty grinding mechanism that processes solid and fibrous waste. The unit is suitable for explosive gas atmospheres in industrial and municipal applications.
Performance specifications include a maximum head of 33.6 metres and a maximum flow of 288 L/Min, powered by a 415V three-phase motor drawing 6.4 Amps. The 3.0 kW motor uses direct starting with 38.7 Amps starting current and produces 10.0 Nm of rated torque. These characteristics suit medium-flow applications requiring significant head capability with grinding performance.
Hydraulic design incorporates an open channel impeller with grinder system, with the impeller manufactured from Cast Iron EN-GJL 250. The grinder mechanism uses chromium steel cutter and cutting disk (X102 CrMo17 KU) that process all incoming solids. Free passage is 0 mm as all solids are reduced by the grinding system. Hydraulic efficiency is rated at 43.9%.
Construction consists of a Cast Iron EN-GJL 250 casing with bi-epoxy 200 ?m sea water resistant coating. The shaft is stainless steel AISI 431, and sealing uses two mechanical seals in silicon carbide (2SiC). Motor protection includes Class H insulation, IP68 rating, thermal protection, and a leakage sensor. Cable length is 10 metres with 4G1,5+3x1 configuration, and the unit weighs 45 kg. A ZENS9024.006 Ring Stand is required for free-standing operation.
FEATURES
- Open channel impeller with grinder system for solids processing
- Chromium steel cutter and cutting disk X102 CrMo17 KU
- Double silicon carbide mechanical seals for containment integrity
- Stainless steel AISI 431 shaft with corrosion-resistant properties
- Bi-epoxy 200 ?m coating on all cast iron components
- Hydraulic efficiency of 43.9%
- Maximum starts per hour: 30
- Requires ZENS9024.006 Ring Stand for free-standing installation
SPECIFICATIONS
| Max Flow | 288 L/Min |
| Max Head | 33.6 m |
| Power | 3 kW / 415v |
| Rated Current | 6.4 Amps |
| Suitable For | Sewage Grinding |
| Body Material | Cast Iron EN-GJL 250 |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 50 mm |
| Warranty | 12 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What construction details support submerged pump operation?
The casing is Cast Iron EN-GJL 250, and GRG400_2_G50HD0ETEX pairs it with an AISI 431 stainless steel shaft and mechanical seals.
What are the pump's maximum flow and head ratings?
GRG400 2 G50HD0ETEX has maximum flow of 288 L/Min and amaximum headrating of 33.6 m for hydraulic selection.
What wastewater applications suit this pump's design?
For sewage and blackwater containing fibres or filaments, GRG400-2-G50HD0ETEX transfers wastewater from collection sumps and drainage systems across intended service settings.
What impeller or cutting arrangement manages solid waste?
The chromium steel cutter and cutting disk in GRG400/2/G50HD0ETEX reduce fibrous solids before they reach the impeller during sewage transfer.
How is the motor configured for safe operation?
A 3.0 kW motor uses 415 V three-phase supply in GRG4002G50HD0ETEX, with ATEX Zone 1 certification, Class H insulation and IP68 protection for submerged service.
