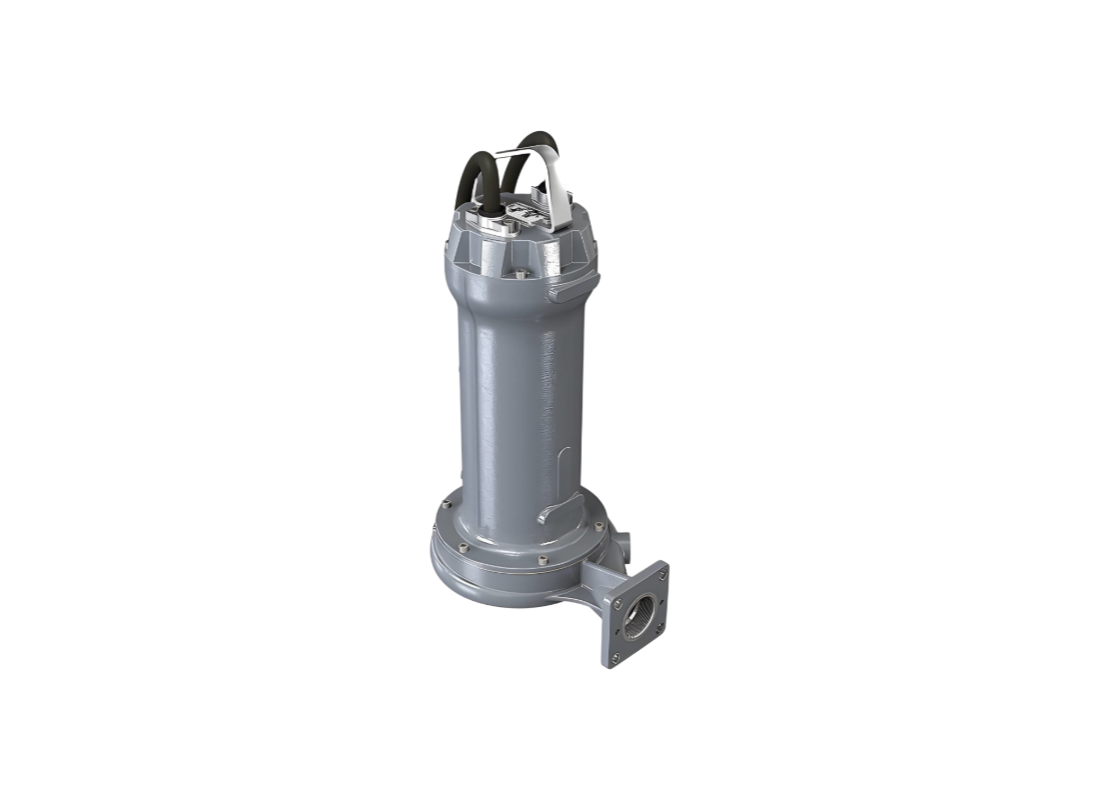

High-head blackwater and sewage extraction in civil, residential, and industrial applications requires pumps with significant pressure capability and effective solids grinding. The Zenit GRG 550/2/G50H D0FT5 is a 4.0 kW submersible grinder pump with ATEX Zone 1 certification, featuring a robust cast iron construction designed for maximum reliability with a built-in high-head grinder system. The unit is suitable for livestock farm effluents, carparks, and explosive atmosphere environments.
Maximum head for this model is 42.5 metres with a maximum flow of 270 L/Min, driven by a 415V three-phase motor drawing 7.7 Amps. The 4.0 kW motor uses direct starting with 54.1 Amps starting current and produces 13.3 Nm of rated torque. These performance characteristics suit high-head applications requiring significant pressure capability for long-distance transfer or high elevation pumping.
Hydraulic design incorporates a multi-channel open impeller with grinder system, with the impeller manufactured from Cast Iron EN-GJL 250. The grinder mechanism uses chromium steel cutter and cutting disk (X102 CrMo17 KU) that process all solids and fibrous materials. Free passage is 0 mm as all solids are reduced by the grinding system. Hydraulic efficiency is rated at 43.4%.
Construction features a Cast Iron EN-GJL 250 casing with bi-epoxy 200 ?m sea water resistant coating. The shaft is stainless steel AISI 431, and sealing uses two mechanical seals in silicon carbide (2SiC). Motor protection includes Class H insulation, IP68 rating, thermal protection, and a leakage sensor. Cable length is 10 metres with 4G1,5+3x1 configuration, and the unit weighs 57.6 kg. A ZENS9024.006 Ring Stand is required for free-standing operation.
FEATURES
- Multi-channel open impeller with grinder system for solids reduction
- Chromium steel cutter and cutting disk X102 CrMo17 KU
- Double silicon carbide mechanical seals for reliable containment
- Stainless steel AISI 431 shaft for corrosion resistance
- Bi-epoxy 200 ?m sea water resistant coating
- Hydraulic efficiency of 43.4%
- Direct starting with 54.1 Amps starting current
- Requires ZENS9024.006 Ring Stand for free-standing installation
