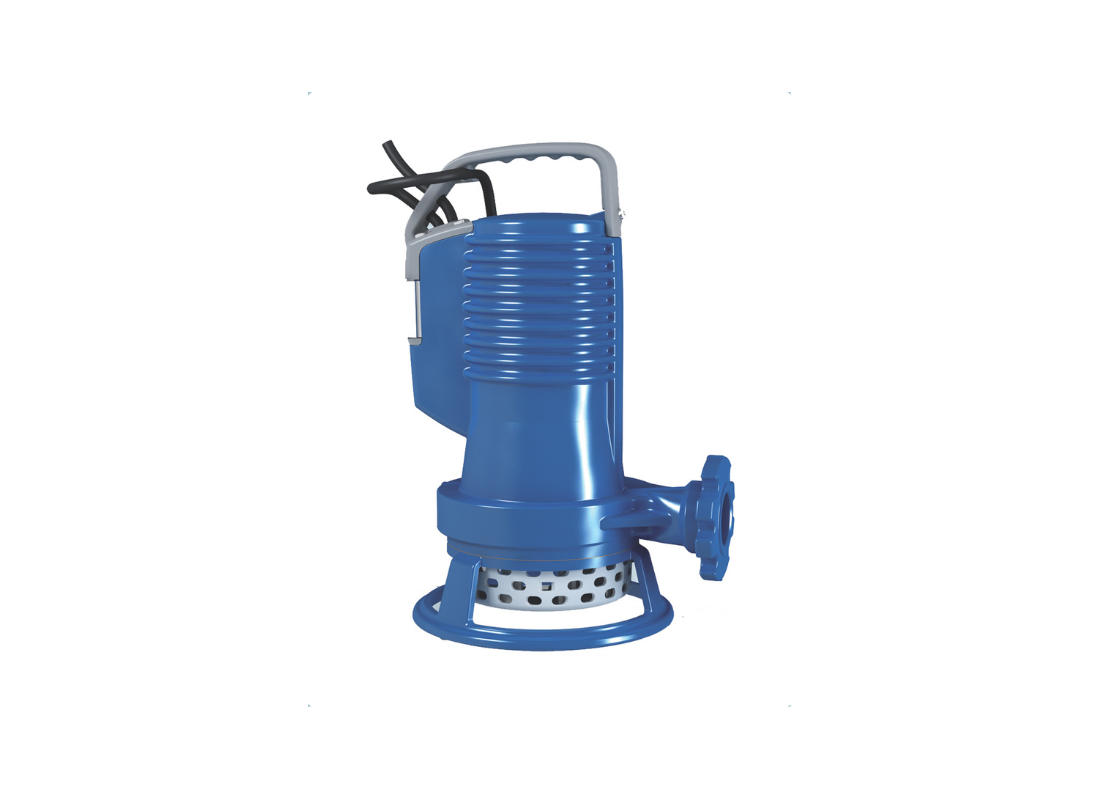

Zenit APBLUEP100/2/G40HMEX Cast Iron Manual 0.74kW Drainage Pump for Clean Water with High Head Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Addressing high water volume demands in drainage basins, the ZEN-APBLUEP100/2/G40HMEX submersible pump is specified for fluid accumulation tasks. This model from the BluePRO series is designed for pumping clear wastewater, rainwater and seepage containing small amounts of sand, decorative fountains. It is certified for connection to standard installations or connection to auto-coupling systems.
Constructed from Cast iron EN-GJL 250 surrounding the motor frame, the casting surrounding internal components features a high-tensile Stainless steel AISI 431 shaft. The cast iron EN-GJS 600 high head impeller processes solid matter with a maximum size limit of 6 mm. This unit weighs 19 kg and operates in liquids up to 40°C.
The 0.74 kW motor operates on a standard 240 V supply with a nominal rated current of 5.50 Amps. The pump achieves a maximum head of 17.3 meters and a maximum flow of 360 L/Min through a 40 mm discharge outlet.
Motor winding thermal safety cutoffs are integrated with Class F insulation and an IP68 enclosure structure. This submersible pump is specified for installation depths in fluid media up to 10 meters. Dual mechanical two silicon carbide mechanical seals (2SiC) in oil sump provide containment.
Features
- Features cast iron EN-GJL 250 physical intake strainer for base stabilization
- Includes bicomponent epoxy coating measuring 120 micrometers for external casting wear resistance
- Utilizes a heavy polychloroprene main power cable type 3G1 with a length of 10 meters
- Incorporates an integrated Shuko plug connection for direct electrical terminal insertion
- Features a starting capacitor variant for single phase electrical motor activation
- Weighs 19 kg net mass excluding any external control cables and connection hardware
- Achieves a rated rotation speed of 2900 revolutions per minute under nominal workload
SPECIFICATIONS
| Max Flow | 360 L/Min |
| Max Head | 17.3 m |
| Power | 0.74 kW / 240v |
| Rated Current | 5.5 Amps |
| Suitable For | Clear Wastewater |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which liquids can this submersible pump transfer?
Decorative fountains and sump drainage suit APBLUEP100_2_G40HMEX, which transfers clear wastewater, rainwater and seepage containing small amounts of sand in drainage sumps.
What are the motor power and supply requirements?
A 0.74 kW single-phase motor runs on 240 V in APBLUEP100 2 G40HMEX, with a rated current of 5.50 A.
How much flow and head can the pump provide?
Hydraulic capacity for APBLUEP100-2-G40HMEX reaches up to 360 L/Min and a maximum head of 17.3 m through its 40 mm discharge.
Which materials form the pump's main construction?
Cast iron EN-GJL 250 surrounds the motor and an AISI 431 stainless steel shaft is fitted to APBLUEP100/2/G40HMEX during submerged use.
What installation options are available for this unit?
A 40 mm discharge and 10 m immersion rating are specified for APBLUEP1002G40HMEX, which handles liquids up to 40°C for fixed installation.
