SKU: 711697

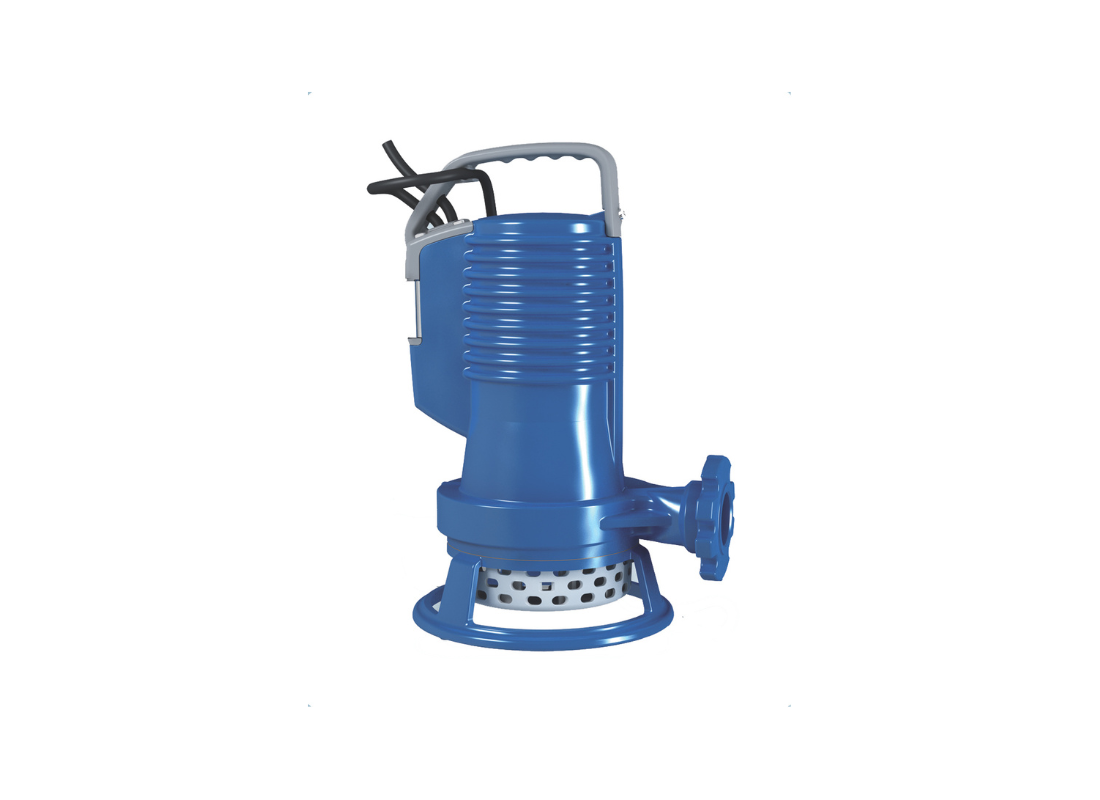

Zenit APBLUEP100/2/G40HMGEX Cast Iron Automatic 0.74kW Drainage Pump for Pit Water with High Head Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Featuring a physical casting manufactured from EN-GJL 250 cast iron, the ZEN-APBLUEP100/2/G40HMGEX submersible pump offers casting weight for immersion. This model from the BluePRO series is designed for handling clear wastewater, rainwater and seepage containing small amounts of sand, decorative fountains with automatic level operation. It is certified for connection to standard installations or connection to auto-coupling systems.
Constructed from Cast iron EN-GJL 250 surrounding the motor frame, the casting surrounding internal components features a high-tensile Stainless steel AISI 431 shaft. The cast iron EN-GJS 600 high head impeller processes solid matter with a maximum size limit of 6 mm. This unit weighs 19 kg and operates in liquids up to 40°C.
The 0.74 kW motor operates on a standard 240 V supply with a nominal rated current of 5.50 Amps. The pump achieves a maximum head of 17.3 meters and a maximum flow of 360 L/Min through a 40 mm discharge outlet.
Motor winding thermal safety cutoffs are integrated with Class F insulation and an IP68 enclosure structure. This submersible pump is specified for installation depths in fluid media up to 10 meters. Dual mechanical two silicon carbide mechanical seals (2SiC) in oil sump provide containment.
Features
- Features a pre-installed physical float switch on the motor cover for automatic level control
- Includes cast iron EN-GJL 250 structural base stand for fixed bottom positioning on pit floors
- Employs bicomponent epoxy coating measuring 120 micrometers for external casing corrosion resistance
- Utilizes a heavy polychloroprene power cable type 3G1 with a standard length of 10 meters
- Incorporates a molded single phase Shuko plug for standard electrical power point connection
- Weighs 19 kg net mass excluding the control cable line and external discharge coupling system
- Achieves a rated motor shaft rotation speed of 2900 revolutions per minute during nominal duty
SPECIFICATIONS
| Max Flow | 360 L/Min |
| Max Head | 17.3 m |
| Power | 0.74 kW / 240v |
| Rated Current | 5.5 Amps |
| Suitable For | Rainwater Collection |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this version manage changing liquid levels?
Automatic level control equips APBLUEP100_2_G40HMGEX for collection sumps handling clear wastewater, rainwater and seepage with small amounts of sand in drainage sumps.
Which liquids are suitable for the pump's intended service?
Rainwater, clear wastewater and seepage containing small amounts of sand are supported duties for APBLUEP100 2 G40HMGEX, including decorative fountains.
What motor and electrical supply does it require?
The 0.74 kW motor in APBLUEP100-2-G40HMGEX uses a 240 V single-phase supply and draws a nominal 5.50 A through the stated discharge.
What limits apply to its hydraulic output?
Maximum flow reaches 360 L/Min and maximum head is 17.3 m on APBLUEP100/2/G40HMGEX, which has a 40 mm discharge outlet.
Which construction details support submerged installation at the site?
The pre-installed float switch distinguishes APBLUEP1002G40HMGEX from the manual version and controls automatic operation as pit levels change for fixed installation.
