SKU: 711097

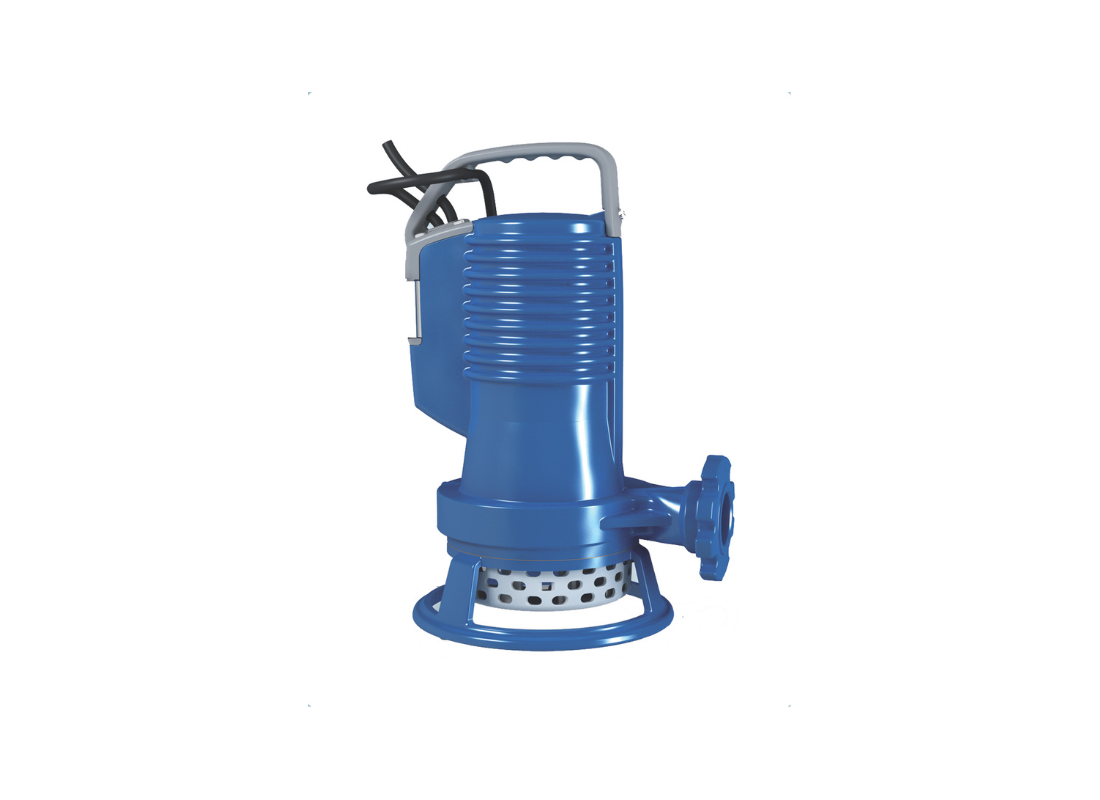

Zenit APBLUEP150/2/G40HMEX Cast Iron 1.1kW Submersible Wastewater Pump with High Head Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Minimizing operating electrical costs through fine winding adjustments, the ZEN-APBLUEP150/2/G40HMEX pump offers low power scaling costs and security containment under constant submersed operation. This technical model from the BluePRO series is designed for pumping clear wastewater, rainwater and seepage containing small amounts of sand, decorative fountains, high-lift sumps. It is certified for mounting directly onto standard installations or connection to auto-coupling systems.
Constructed from Cast iron EN-GJL 250 surrounding the motor frame, the casting surrounding internal components features a high-tensile Stainless steel AISI 431 shaft. The cast iron EN-GJS 600 high head impeller processes solid matter with a maximum size limit of 6 mm. This unit weighs 24 kg and operates in liquids up to 40°C.
The 1.10 kW motor operates on a standard 240 V supply with a nominal rated current of 7.50 Amps. The pump achieves a maximum head of 20.9 meters and a maximum flow of 360 L/Min through a 40 mm discharge outlet.
Motor winding thermal safety cutoffs are integrated with Class F insulation and an IP68 enclosure structure. This submersible pump is specified for installation depths in fluid media up to 10 meters. Dual mechanical two silicon carbide mechanical seals (2SiC) in oil sump provide containment.
Features
- Features cast iron EN-GJL 250 structural base assembly for direct floor mount installation
- Includes bicomponent epoxy coating measuring 120 micrometers on all wet surface cast components
- Utilizes a heavy polychloroprene main power cable type 3G1 with an operational length of 10 meters
- Incorporates an integrated Shuko terminal plug for single phase direct connection to wall sockets
- Features a starting capacitor variant inside the circuit for single phase motor start operations
- Weighs 24 kg net mass excluding the electrical power cord line and connection pipe systems
- Achieves a rated rotation speed of 2900 revolutions per minute under continuous operational parameters
SPECIFICATIONS
| Max Flow | 360 L/Min |
| Max Head | 20.9 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.5 Amps |
| Suitable For | Slightly Dirty Water Drainage |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What construction materials are used in this pump?
High-lift sumps and fountain installations suit APBLUEP150_2_G40HMEX, which transfers clear wastewater, rainwater and seepage containing small amounts of sand in drainage sumps.
Which electrical supply and motor rating apply here?
A 1.10 kW motor operates from a 240 V single-phase supply in APBLUEP150 2 G40HMEX, drawing a nominal 7.50 A.
What are its stated flow and head capabilities?
For APBLUEP150-2-G40HMEX, maximum flow is 360 L/Min and maximum head is 20.9 m, with discharge through a 40 mm outlet.
Which liquids are suitable for the pump?
Clear wastewater, rainwater and seepage containing small amounts of sand are suitable for APBLUEP150/2/G40HMEX, alongside decorative fountains and high-lift sumps.
How can the pump be installed at a site?
A 10 m power cable and integrated Shuko plug are supplied with APBLUEP1502G40HMEX for connection to a compatible single-phase supply point.
