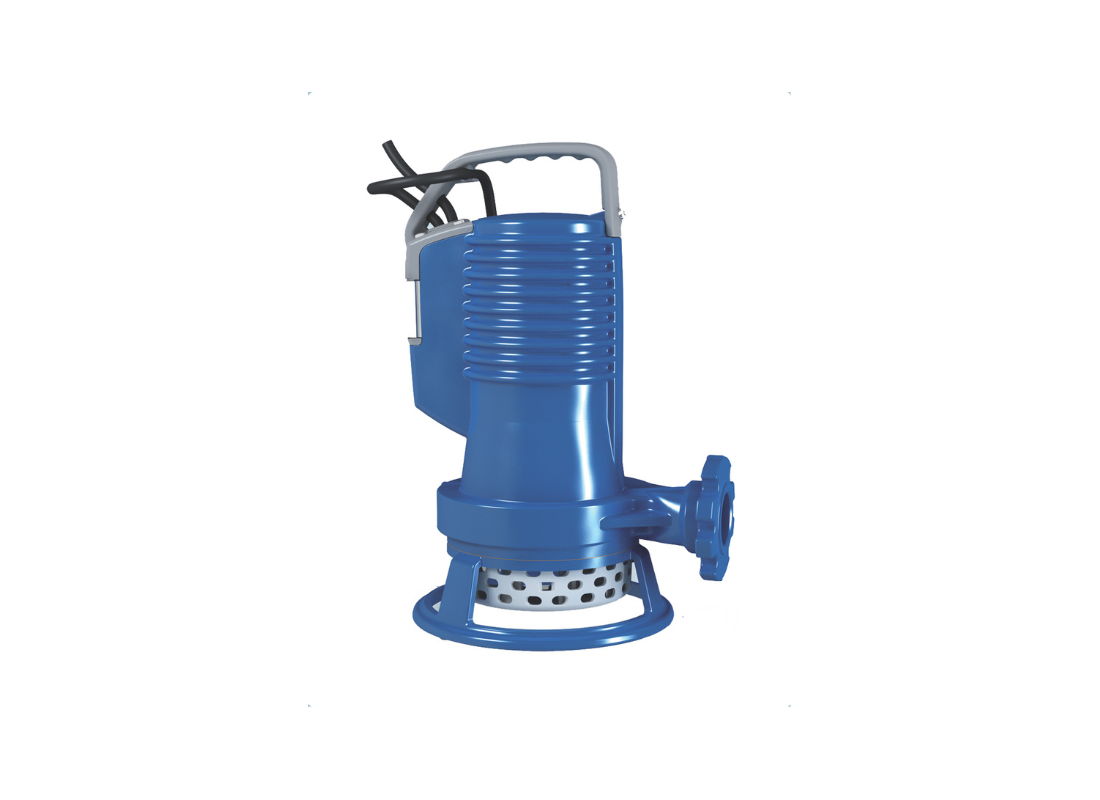

Zenit APBLUEP150/2/G40HMGEX Cast Iron Automatic 1.1kW Submersible Wastewater Pump with High Head Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Addressing high water volume demands in drainage basins, the ZEN-APBLUEP150/2/G40HMGEX submersible pump is specified for fluid accumulation tasks. This model from the BluePRO series is designed for pumping clear wastewater, rainwater and seepage containing small amounts of sand, decorative fountains, automated lift wells. It is certified for connection to standard installations or connection to auto-coupling systems.
Constructed from Cast iron EN-GJL 250 surrounding the motor frame, the casting surrounding internal components features a high-tensile Stainless steel AISI 431 shaft. The cast iron EN-GJS 600 high head impeller processes solid matter with a maximum size limit of 6 mm. This unit weighs 24 kg and operates in liquids up to 40°C.
The 1.10 kW motor operates on a standard 240 V supply with a nominal rated current of 7.50 Amps. The pump achieves a maximum head of 20.9 meters and a maximum flow of 360 L/Min through a 40 mm discharge outlet.
Motor winding thermal safety cutoffs are integrated with Class F insulation and an IP68 enclosure structure. This submersible pump is specified for installation depths in fluid media up to 10 meters. Dual mechanical two silicon carbide mechanical seals (2SiC) inside an oil sump provide containment.
Features
- Features a pre-installed physical float switch on the motor cover for automated water level control
- Includes cast iron EN-GJL 250 bottom base strainer to intercept large particulate materials
- Employs bicomponent epoxy coating measuring 120 micrometers for external cast metal wear resistance
- Utilizes a heavy polychloroprene main power cable type 3G1 with an overall length of 10 meters
- Incorporates an integrated single phase Shuko plug for direct connection to standard outlets
- Weighs 24 kg net weight excluding any additional electrical lines and guide rail connector fittings
- Achieves a rated nominal rotation speed of 2900 revolutions per minute during heavy fluid discharge
SPECIFICATIONS
| Max Flow | 360 L/Min |
| Max Head | 20.9 m |
| Power | 1.1 kW / 240v |
| Rated Current | 7.5 Amps |
| Suitable For | Decorative Fountains and Water Features |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What controls automatic start and stop operation?
For unattended sump drainage, APBLUEP150_2_G40HMGEX handles clear wastewater, rainwater and seepage containing small amounts of sand using its float switch.
Which liquid temperature limit applies to this pump?
Liquid temperatures up to 40°C are permitted for APBLUEP150 2 G40HMGEX during its specified submerged drainage service for single-phase pumping.
What hydraulic capacity is given for this model?
Maximum flow reaches 360 L/Min and maximum head is 20.9 m on APBLUEP150-2-G40HMGEX, which discharges through a 40 mm outlet.
Which motor and supply details should installers note?
The 1.10 kW single-phase motor in APBLUEP150/2/G40HMGEX operates at 240 V with a nominal rated current of 7.50 A during submerged use.
What body and shaft materials are used?
The fitted float switch controls collection-sump levels on APBLUEP1502G40HMGEX and enables automatic start-stop operation as liquid rises in the pit.
