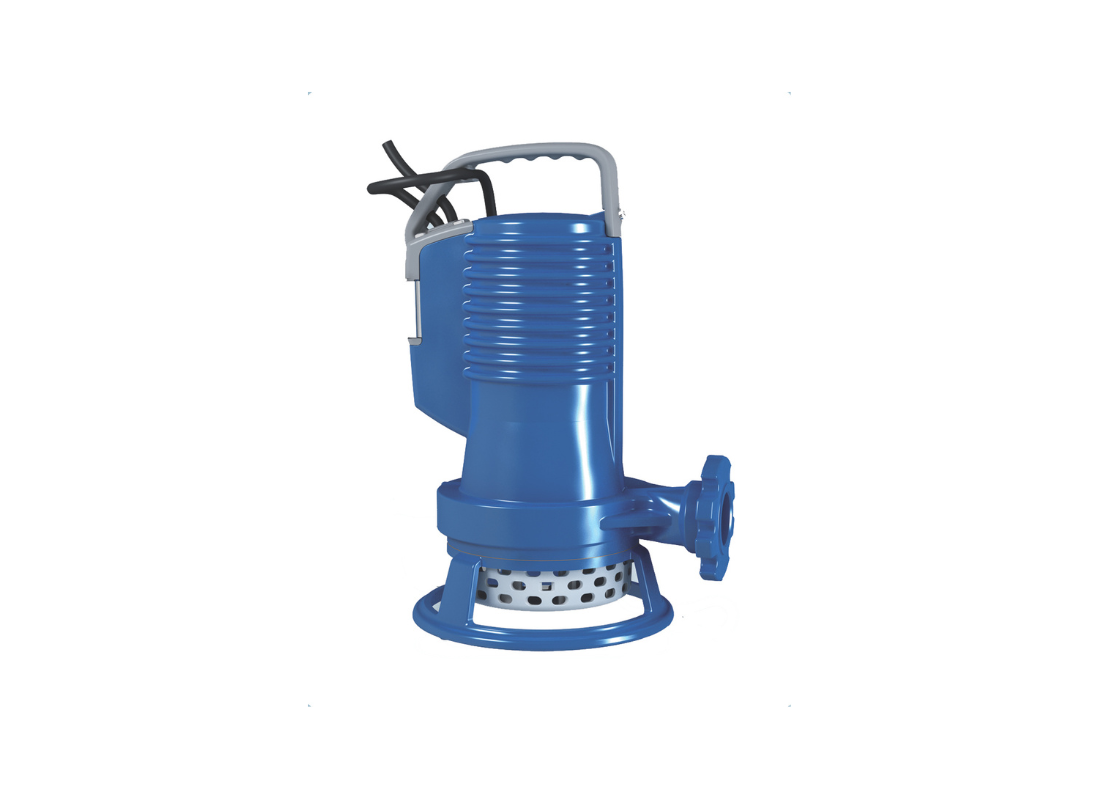

Zenit APBLUEP150/2/G40HTEX Cast Iron 1.1kW Wastewater Pump for Slightly Dirty Water with High Head Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Featuring a physical casting manufactured from EN-GJL 250 cast iron, the ZEN-APBLUEP150/2/G40HTEX submersible pump offers casting weight for immersion. This model from the BluePRO series is designed for handling clear wastewater, rainwater and seepage containing small amounts of sand, decorative fountains, commercial sumps. It is certified for connection to standard installations or connection to auto-coupling systems.
Constructed from Cast iron EN-GJL 250 surrounding the motor frame, the casting surrounding internal components features a high-tensile Stainless steel AISI 431 shaft. The cast iron EN-GJS 600 high head impeller processes solid matter with a maximum size limit of 6 mm. This unit weighs 24 kg and operates in liquids up to 40°C.
The 1.10 kW motor operates on a standard 415v supply with a nominal rated current of 3.20 Amps. The pump achieves a maximum head of 20.9 meters and a maximum flow of 360 L/Min through a 40 mm discharge outlet.
Motor winding thermal safety cutoffs are integrated with Class F insulation and an IP68 enclosure structure. This submersible pump is specified for installation depths in fluid media up to 10 meters. Dual mechanical two silicon carbide mechanical seals (2SiC) inside an oil sump provide containment.
Features
- Features three phase electrical connections with a heavy power cable type 4G1 measuring 10 meters
- Includes built-in thermal relays inside the stator motor windings for localized temperature safety
- Utilizes a cast iron EN-GJL 250 intake strainer to filter large debris from entering the suction zone
- Incorporates bicomponent epoxy coating measuring 120 micrometers for cast surface oxidation resistance
- Weighs 24 kg net weight excluding any additional installation hardware fittings and the power cord
- Achieves a rated rotation speed of 2900 revolutions per minute during continuous discharge cycles
- Operates with alternating current at a rated electrical supply frequency of 50 Hz on site
SPECIFICATIONS
| Max Flow | 360 L/Min |
| Max Head | 20.9 m |
| Power | 1.1 kW / 415v |
| Rated Current | 3.2 Amps |
| Suitable For | Domestic and Professional Sump Pits |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which power supply does the motor need?
Commercial sump installations can use APBLUEP150_2_G40HTEX to transfer clear wastewater, rainwater and seepage containing small amounts of sand on three-phase power.
What liquids are covered by its intended applications?
Rainwater, clear wastewater and seepage containing small amounts of sand are intended duties for APBLUEP150 2 G40HTEX, including commercial sumps.
What are the maximum flow and head values?
APBLUEP150-2-G40HTEX reaches a maximum flow of 360 L/Min and a maximum head of 20.9 m through its 40 mm discharge.
How is motor temperature monitored during continuous pumping?
Built-in thermal relays monitor the stator windings in APBLUEP150/2/G40HTEX, while its IP68 enclosure and Class F insulation are also specified.
Which mounting arrangements can be used at the installation site?
A 40 mm outlet, IP68 enclosure and Class F insulation are specified for APBLUEP1502G40HTEX during submerged operation for fixed installation.
