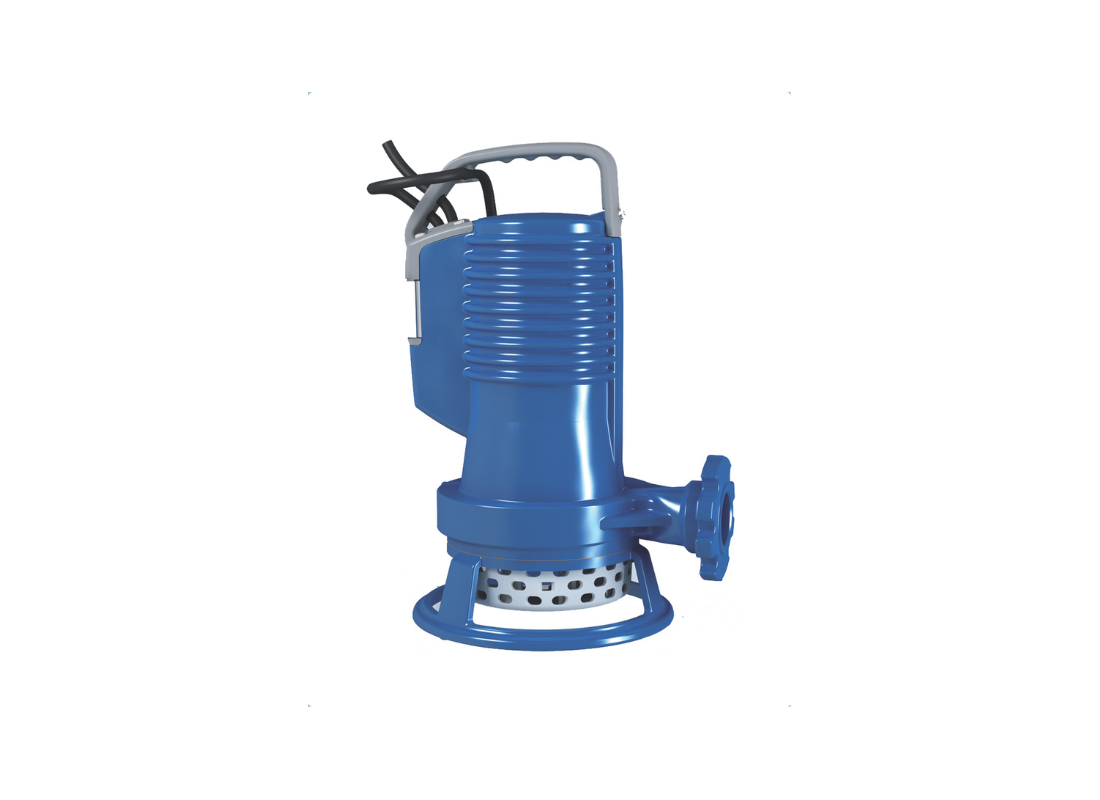

Zenit APBLUEP200/2/G40HMGEX Cast Iron Automatic Drainage Pump for RainWastewater with High Head Impeller
Australia-Wide
(08) 9240 2992
Official Zenit
Peace of Mind
Product Overview
Minimizing operating electrical costs through fine winding adjustments, the ZEN-APBLUEP200/2/G40HMGEX pump offers low power scaling costs and security containment under constant submersed operation. This technical model from the BluePRO series is designed for pumping clear wastewater, rainwater and seepage containing small amounts of sand, decorative fountains, automated sumps. It is certified for mounting directly onto standard installations or connection to auto-coupling systems.
Constructed from Cast iron EN-GJL 250 surrounding the motor frame, the casting surrounding internal components features a high-tensile Stainless steel AISI 431 shaft. The cast iron EN-GJS 600 high head impeller processes solid matter with a maximum size limit of 6 mm. This unit weighs 25 kg and operates in liquids up to 40°C.
The 1.50 kW motor operates on a standard 240 V supply with a nominal rated current of 10.0 Amps. The pump achieves a maximum head of 26.6 meters and a maximum flow of 420 L/Min through a 40 mm discharge outlet.
Motor winding thermal safety cutoffs are integrated with Class F insulation and an IP68 enclosure structure. This submersible pump is specified for installation depths in fluid media up to 10 meters. Dual mechanical two silicon carbide mechanical seals (2SiC) in oil sump provide containment.
Features
- Features an automatic float switch mounted on the motor cover for level based drainage activation
- Includes cast iron EN-GJL 250 physical intake strainer for preventing debris entry to the impeller
- Utilizes a main power cable type 3G1 with an overall operational length of 10 meters
- Incorporates a factory fitted Shuko plug for single phase connection to electrical power points
- Employs bicomponent epoxy coating measuring 80 micrometers for external casting material wear resistance
- Weighs 25 kg net mass excluding any external electrical lines and matching guide rail accessories
- Achieves a rated rotation speed of 2750 revolutions per minute during continuous high flow pumping
SPECIFICATIONS
| Max Flow | 420 L/Min |
| Max Head | 26.6 m |
| Power | 1.5 kW / 240v |
| Rated Current | 10 Amps |
| Suitable For | Seepage Water |
| Body Material | Cast Iron |
| Liquid Temperature | Maximum 40°C |
| Outlet Size | 40 mm |
| Warranty | 24 Months |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this model regulate the liquid level?
Automatic pit drainage uses APBLUEP200_2_G40HMGEX to move clear wastewater, rainwater and seepage containing small amounts of sand from collection areas.
Which supply and motor rating does it use?
APBLUEP200 2 G40HMGEX uses a 1.50 kW motor on a 240 V single-phase supply, with a Shuko plug fitted for single-phase pumping.
What are the stated maximum hydraulic figures?
The pump reaches up to 420 L/Min and a maximum head of 17.3 m through its outlet on APBLUEP200-2-G40HMGEX through the stated discharge.
What particle size can the impeller handle?
Solids up to 6 mm can pass through the high-head impeller of APBLUEP200/2/G40HMGEX during its specified wastewater and rainwater duties.
Which installation arrangements are supported for this pump model?
Automatic level management comes from the installed float switch on APBLUEP2002G40HMGEX, which responds to changing liquid levels in collection pits.
