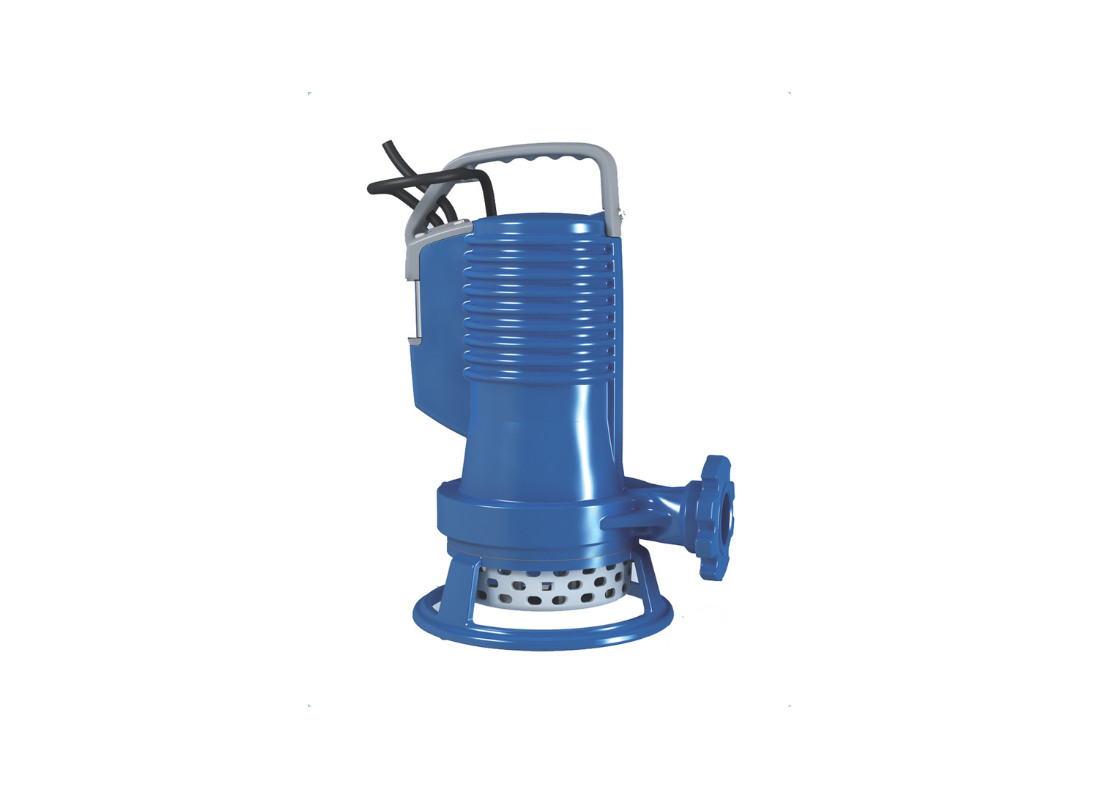

Addressing high water volume demands in drainage basins, the ZEN-APBLUEP200/2/G40HTEX submersible pump is specified for fluid accumulation tasks. This model from the BluePRO series is designed for pumping clear wastewater, rainwater and seepage containing small amounts of sand, decorative fountains, commercial high-head sites. It is certified for connection to standard installations or connection to auto-coupling systems.
Constructed from Cast iron EN-GJL 250 surrounding the motor frame, the casting surrounding internal components features a high-tensile Stainless steel AISI 431 shaft. The cast iron EN-GJS 600 high head impeller processes solid matter with a maximum size limit of 6 mm. This unit weighs 25 kg and operates in liquids up to 40°C.
The 1.50 kW motor operates on a standard 415v supply with a nominal rated current of 4.30 Amps. The pump achieves a maximum head of 26.6 meters and a maximum flow of 420 L/Min through a 40 mm discharge outlet.
Motor winding thermal safety cutoffs are integrated with Class F insulation and an IP68 enclosure structure. This submersible pump is specified for installation depths in fluid media up to 10 meters. Dual mechanical two silicon carbide mechanical seals (2SiC) in oil sump provide containment.
Features
- Features three phase winding connections with a heavy power cable type 4G1 measuring 10 meters
- Includes localized thermal relays built into the motor structure for winding temperature safety
- Utilizes cast iron EN-GJL 250 structural base strainer for bottom fluid suction intake safety
- Incorporates bicomponent epoxy coating measuring 120 micrometers for raw metal oxidation resistance
- Weighs 25 kg net weight excluding additional connection fittings and the electrical power cord
- Achieves a rated rotation speed of 2900 revolutions per minute under continuous high pressure load
- Operates at a rated supply frequency of 50 Hz on three phase alternating current systems
FAQs
General Product FAQs
1. How do I choose the right pump for my setup?
Selecting the correct pump depends on your required flow (L/min), total head (vertical lift + friction loss), and power source. If you're unsure, contact our team and we’ll size the right system for you.
2. Do you offer support with system design or setup?
Yes — we provide expert advice to help you choose, install, and optimise your pump system. Whether it's a simple setup or a custom solution, we’re here to help.
3. Do you offer complete pump solutions or just products?
We don’t just sell pumps — we provide complete solutions. From accessories and control systems to full packaged setups, we can supply everything required to get your system running efficiently.
Shipping & Availability
1. Do you offer Australia-wide shipping?
Yes — we ship across Australia. Bulk or oversized orders may incur additional freight charges otherwise we offer free shipping over $100*
2. How long does delivery take?
Orders are typically shipped within 1–2 business days, with delivery taking approximately 2–7 days depending on your location.
3. What courier or freight companies do you use?
We work with a range of trusted carriers including Australia Post, StarTrack, TNT, and other national freight providers depending on the size and location of your order. This allows us to ensure fast, reliable delivery across Australia, including regional and remote areas.
Warranty & Support
1. Do your pumps come with a warranty?
Yes — all products are backed by manufacturer warranties. Warranty periods vary depending on the brand and product type.
2. What support do you offer after purchase?
We provide ongoing support including:
- Installation advice
- Troubleshooting
- Spare parts supply
- System upgrades
3. What is the warranty process if something goes wrong?
If you experience an issue, simply contact our team with your order details and a description of the problem. We’ll guide you through troubleshooting and, if required, arrange repair, replacement, or manufacturer assessment in line with warranty terms.
Why choose Foundation Pumps?
1. Why choose Foundation Pumps over other suppliers?
We focus on supplying proven, high-quality pump solutions backed by real industry knowledge. Unlike general resellers, we understand how these systems perform in the field and provide honest, practical advice to ensure you get the right solution the first time.
2. Do you offer expert advice before and after purchase?
Yes — we support you at every stage, from selecting the right pump through to installation and ongoing use. Our team is available to assist with sizing, troubleshooting, and system optimisation whenever you need it.
3. Do you stock trusted brands and quality products?
We carefully select and supply pumps from reputable manufacturers known for reliability and performance. Our range includes both industry-leading brands and high-value alternatives that meet Australian standards and conditions.
