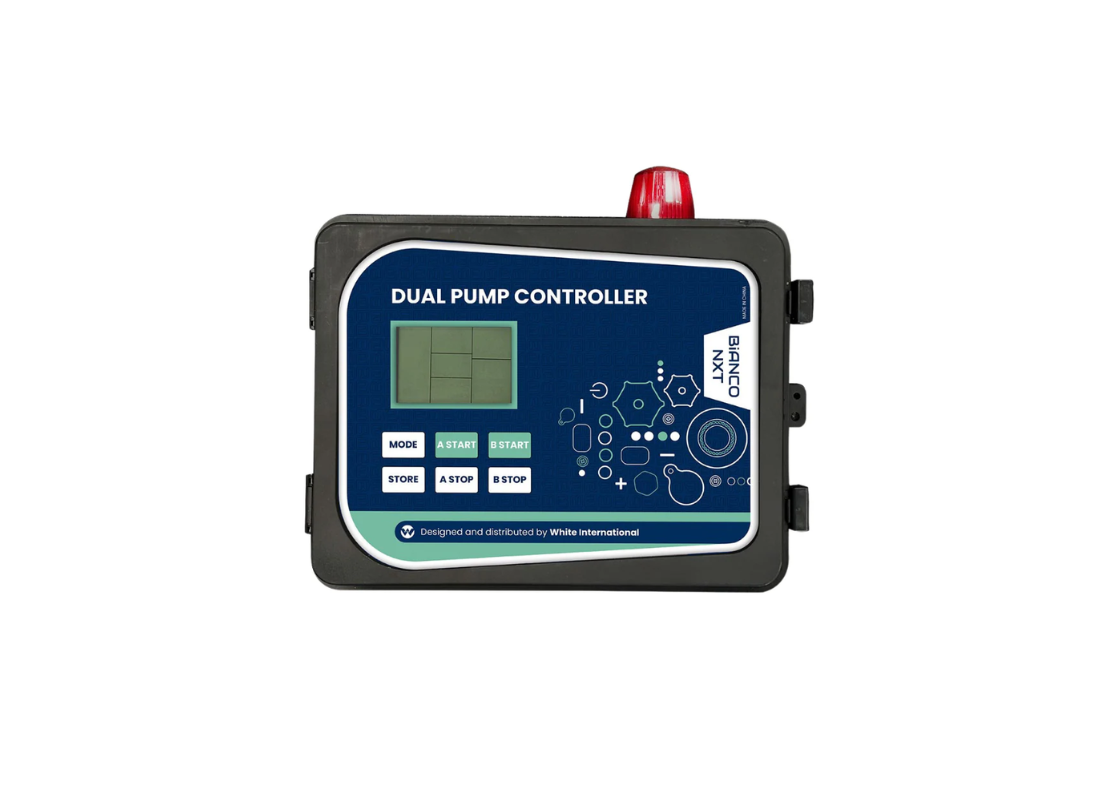

Bianco NXT DPC1-22 240v Dual Pump Control Panel for Wastewater Pumps

The Bianco NXT DPC1-22 is an advanced dual pump control panel designed to control and protect two single phase wastewater pumps in pumping stations and drainage systems. This intelligent controller manages pump operation while providing comprehensive electrical and operational protection to ensure reliable pump performance in demanding wastewater applications.

Designed for pumps up to 2.2kW each, the controller continuously monitors running current and system performance to detect faults quickly and protect pump motors. The system supports multiple control logic modes including drainage, boosting and transfer applications, allowing flexible configuration depending on installation requirements.

The controller includes advanced protection features such as over voltage, under voltage, dry run detection, overload protection and pump stall monitoring. Built with an IP65 rated enclosure, the unit is suitable for pump stations and wastewater installations where reliable protection and automated pump management are required.

FEATURES

• Dual pump control panel for two single phase pumps

• Supports pumps up to 2.2kW each

• 230V single phase supply

• Manual and automatic pump operation modes

• Over voltage and under voltage protection

• Dry run protection via under current monitoring

• Overload protection via over current monitoring

• Pump stall detection and open phase protection

• Audible alarm and flashing light for fault indication

• Pump anti-seize function

• Last five error log memory

• RS485 Modbus interface for BMS connection

• IP65 protection rated enclosure

A reliable dual pump control system designed for wastewater pumping stations, drainage systems and pump transfer installations.
