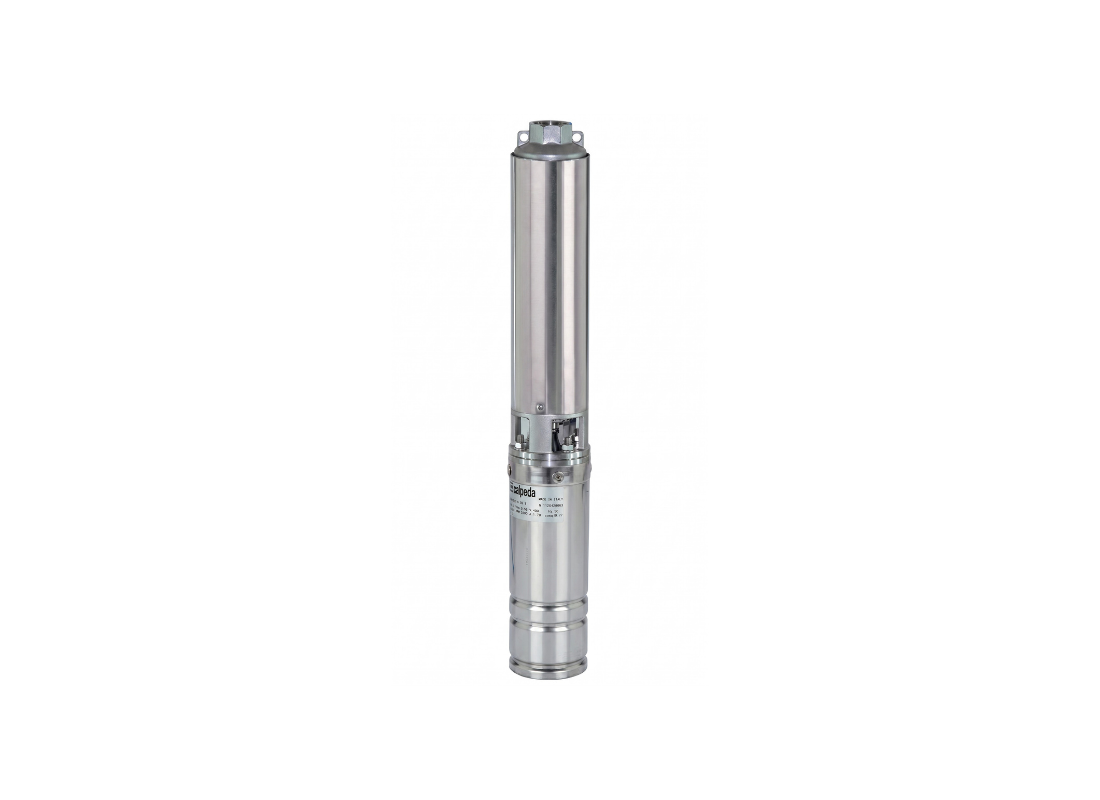

Agricultural irrigation and rural water systems requiring high-capacity hydraulic delivery from 4-inch wells are the primary application for this submersible pump. It is specifically configured to manage clean liquids containing sand concentrations up to 300 g/m³ and supports continuous service for large-scale tank filling and irrigation networks.
A 0.75 kW motor at 415V drives the 4-stage assembly, achieving a maximum head of 23 meters and a peak flow of 220 L/Min. The mechanical interface conforms to NEMA standards, providing a secure connection point for standardised submersible motors.
Durable LEXAN floating impellers move axially within each stage to accommodate sand particles, helping to protect the polycarbonate diffusers from wear during high-capacity transfer duty.
AISI 304 stainless steel forms the external jacket, with a delivery casing incorporating a built-in non-return valve to prevent backflow and reduce water hammer risk. Rated for liquid temperatures up to 35°C, the assembly includes a chrome-nickel steel suction filter and a Class F insulated motor.
FEATURES
- Special radial floating impellers provide enhanced sand handling for borehole environments with high solid content
- Reinforced polycarbonate diffusers maintain an efficient hydraulic flow path for reduced energy consumption
- High-flow 4-stage radial hydraulic assembly delivers 23 meters of head for bulk water and irrigation supply
- AISI 304 stainless steel external jacket provides resistance to mineral corrosion and structural deformation
- Integrated non-return valve protects the internal hydraulics and motor from backflow and water weight
- NEMA-standard coupling ensures compatibility with standardised submersible motors
- Chrome-nickel steel suction lantern blocks mineral debris and oversized particulates from the intake
- Class F insulation and IP68 protection support safe, reliable performance under continuous well immersion
