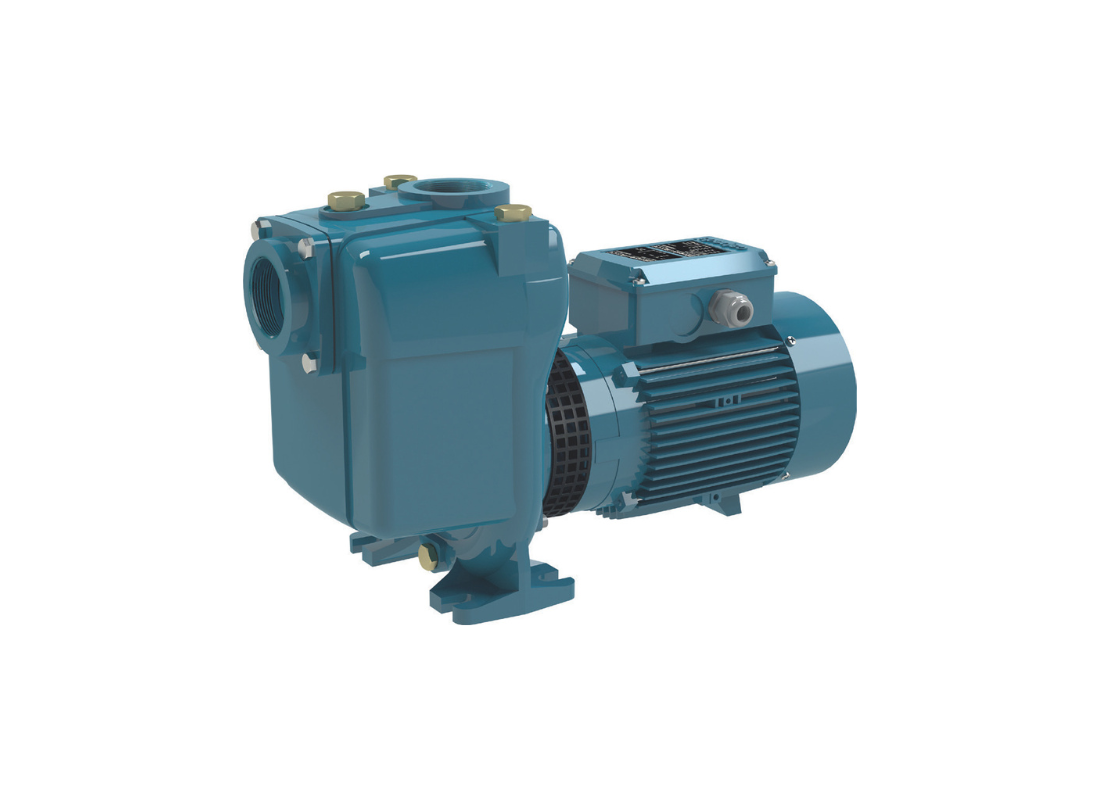

Where intermittent suction conditions and larger liquid volumes are encountered, the Calpeda AM 50-125B provides dependable self-priming centrifugal transfer performance for drainage, irrigation, and utility water handling systems. The pump supports clean and slightly dirty liquids while maintaining automatic suction restoration after pipeline draining.
Hydraulic capacity reaches 30 m³/h maximum flow with discharge head extending to 15.5 m, supporting efficient liquid movement across medium-pressure utility applications. The 240V single-phase motor delivers 1.1 kW rated output power and 7.4 A rated current, supporting stable 2900 rpm operation for continuous transfer requirements.
Circulation is managed through an open cast iron impeller capable of handling suspended solids up to 10 mm without excessive internal restriction. During restart, the self-priming hydraulic arrangement automatically restores suction performance, mitigating operational delays caused by temporary air entry within the intake piping.
Structural durability is supported by cast iron casing, lantern bracket, impeller, and cylindrical suction body components. The motor assembly features built-in thermal overload protection, IP54 enclosure rating, and class F insulation, while carbon ceramic mechanical seal faces with NBR elastomers support shaft sealing stability. Allowable liquid temperatures range from -10°C to 90°C with working pressure capability up to 6 bar.
FEATURES- Integrated self-priming system assisting automatic suction recovery operation
- Open cast iron impeller supporting passage of suspended solids up to 10 mm
- 50 mm threaded inlet and outlet hydraulic connections
- Anti-siphon functionality helping retain prime between working cycles
- Close-coupled centrifugal structure simplifying installation layout
- Carbon ceramic shaft sealing arrangement with NBR elastomer components
- Single-phase induction motor with built-in thermal overload protection system
- Class F insulated motor enclosure with IP54 environmental protection rating
