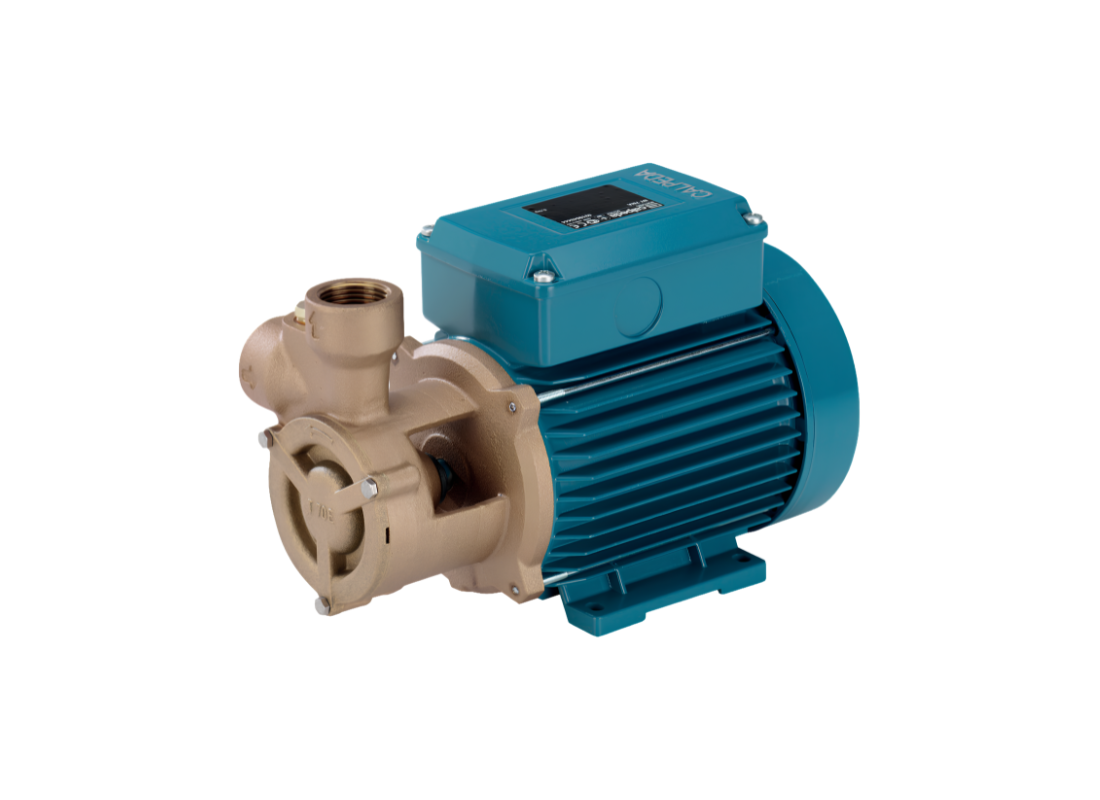

Configured for pressure-oriented marine liquid handling duties, the Calpeda B-T 70 peripheral electropump combines compact hydraulic construction with corrosion-resistant bronze components for dependable operation in humid and marine environments. The pump is suitable for marine boosting systems, onboard circulation arrangements, utility liquid transfer duties, and clean water handling applications requiring elevated pressure performance.
Its three-phase 400V motor delivers 0.75 kW rated output power while generating operating head up to 59 metres with flow rates reaching 60 L/Min. The peripheral hydraulic configuration is optimized for applications where strong pressure delivery is required alongside moderate flow handling capability within compact equipment layouts.
The hydraulic stage incorporates a Brass CW617N EN 12167 impeller designed to support efficient pressure generation across boosting and circulation duties. The close-coupled electropump structure also improves installation flexibility inside marine utility compartments, auxiliary circulation systems, pressure support assemblies, and restricted onboard installation spaces.
Hydraulic body construction includes Bronze CC480K EN 1982 components across the pump casing, lantern bracket, and casing cover for improved corrosion resistance during continuous-duty operation. The rotating assembly incorporates a Stainless Steel 1.4401 EN 10088 (AISI 316) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. The 2-pole induction motor operates near 2900 rpm with IP54 motor protection and Class F insulation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials. Its compact high-pressure hydraulic arrangement supports dependable marine circulation and pressure transfer performance.
FEATURES- Bronze peripheral electropump designed for marine pressure applications
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Bronze CC480K EN 1982 hydraulic body construction
- Compact close-coupled structure for restricted installation layouts
- Stainless Steel 1.4401 EN 10088 (AISI 316) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- 2-pole induction motor operating near 2900 rpm
- IP54 motor protection with Class F insulation system
