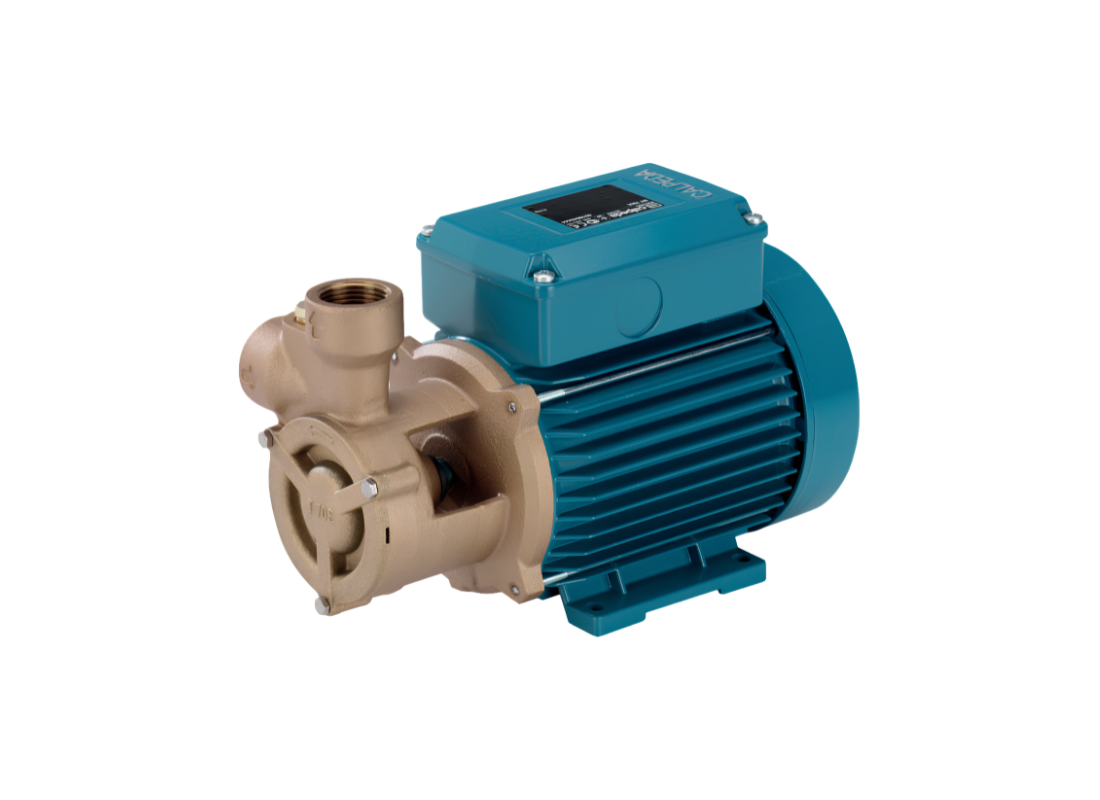

Marine utility systems and onboard circulation installations often require compact pumps capable of maintaining stable pressure while operating continuously in humid environments. The Calpeda B-TM 65 peripheral electropump is configured specifically for these duties through its corrosion-resistant bronze hydraulic construction and compact close-coupled design.
Its peripheral pumping stage uses a precision-machined Brass CW617N EN 12167 impeller that allows efficient pressure generation relative to the pump’s compact dimensions. This hydraulic arrangement makes the unit suitable for marine pressure systems, circulation loops, auxiliary cooling arrangements, and clean liquid transfer applications where dependable pressure support is required with moderate flow delivery.
The single-phase 230V motor develops 0.67 kW P1 input power while producing operating head up to 44 metres and flow performance reaching 50 L/Min. Integrated thermal protection improves operating safety during continuous-duty service conditions, particularly in enclosed marine equipment spaces and compact circulation installations.
Hydraulic body components including the pump casing, lantern bracket, and casing cover are manufactured from Bronze CC480K EN 1982 for improved corrosion resistance in marine and humid operating environments. The rotating assembly incorporates a Stainless Steel 1.4401 EN 10088 (AISI 316) shaft operating together with a Carbon-Ceramic-NBR mechanical seal arrangement for dependable long-term sealing stability.
The close-coupled electropump structure also assists installation flexibility within restricted equipment layouts while the 2-pole induction motor operates near 2900 rpm with IP54 protection and Class F insulation. The pump is suitable for clean liquids without abrasive particles or suspended solids and supports liquid temperatures from -10°C to +90°C.
FEATURES
- Bronze peripheral electropump for marine circulation and pressure duties
- Compact close-coupled construction for restricted installation spaces
- Brass CW617N EN 12167 impeller for pressure-oriented hydraulic operation
- Bronze CC480K EN 1982 hydraulic body construction
- Single-phase motor with integrated thermal protector
- Stainless Steel 1.4401 EN 10088 (AISI 316) shaft assembly
- Carbon-Ceramic-NBR mechanical sealing configuration
- IP54 motor protection with Class F insulation system
