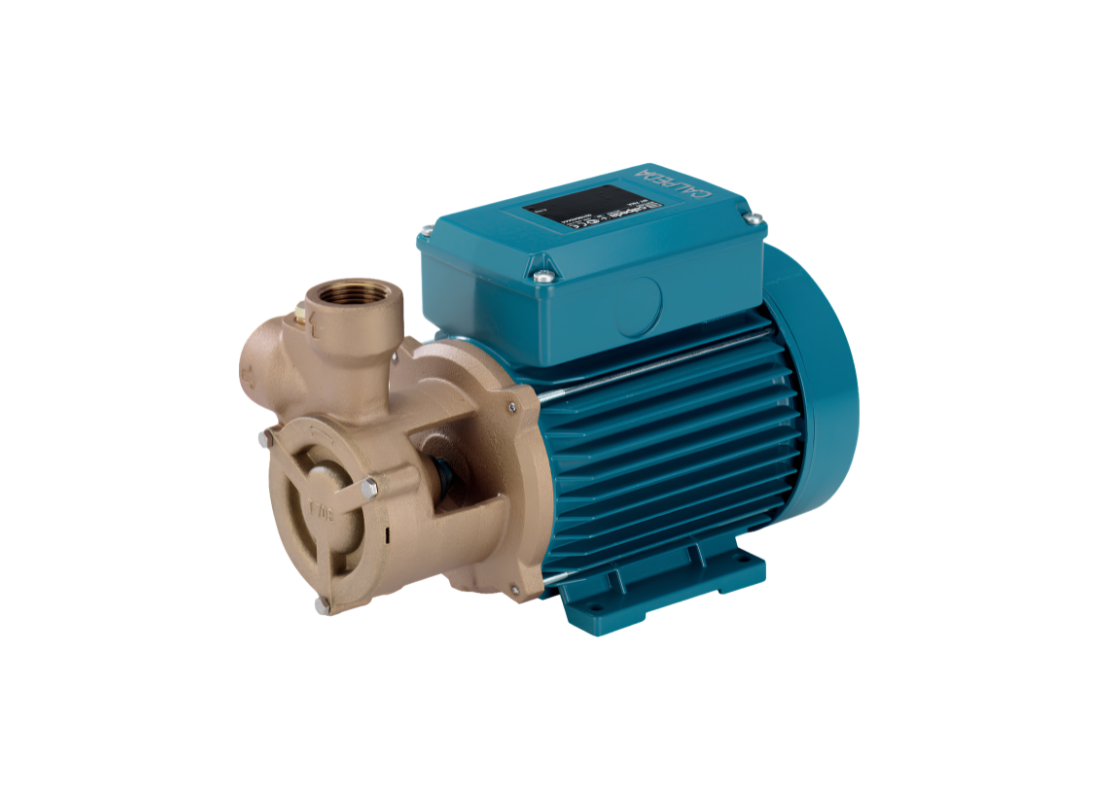

Designed for compact marine utility installations requiring elevated pressure performance, the Calpeda B-TM 70 peripheral electropump combines corrosion-resistant bronze hydraulic construction with stable high-head operation for onboard liquid handling duties. The pump is suitable for onboard water circulation, auxiliary pressure transfer systems, marine utility arrangements, and clean liquid handling applications operating within restricted equipment spaces.
Its single-phase 230V motor develops 1.01 kW P1 input power while producing operating head up to 59 metres with flow performance reaching 60 L/Min. The peripheral hydraulic arrangement is configured for pressure-oriented operation where dependable head generation is required across moderate-flow circulation and transfer duties.
A precision-machined Brass CW617N EN 12167 impeller operates within the peripheral pumping stage to support efficient pressure generation relative to the pump’s compact dimensions. The close-coupled electropump structure also improves installation flexibility inside onboard utility systems, cooling arrangements, pressure support assemblies, and circulation equipment layouts.
Hydraulic body components including the pump casing, lantern bracket, and casing cover are manufactured from Bronze CC480K EN 1982 for improved corrosion resistance in humid and marine operating environments. The rotating assembly incorporates a Stainless Steel 1.4401 EN 10088 (AISI 316) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement for dependable sealing stability during continuous-duty service conditions.
The motor includes integrated thermal protection together with IP54 protection and Class F insulation while operating near 2900 rpm. The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials.
FEATURES- Bronze peripheral electropump for onboard circulation and pressure duties
- Single-phase motor with integrated thermal protector
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Bronze CC480K EN 1982 hydraulic construction improves corrosion resistance
- Stainless Steel 1.4401 EN 10088 (AISI 316) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- Compact close-coupled structure for restricted installation spaces
- IP54 motor protection with Class F insulation system
