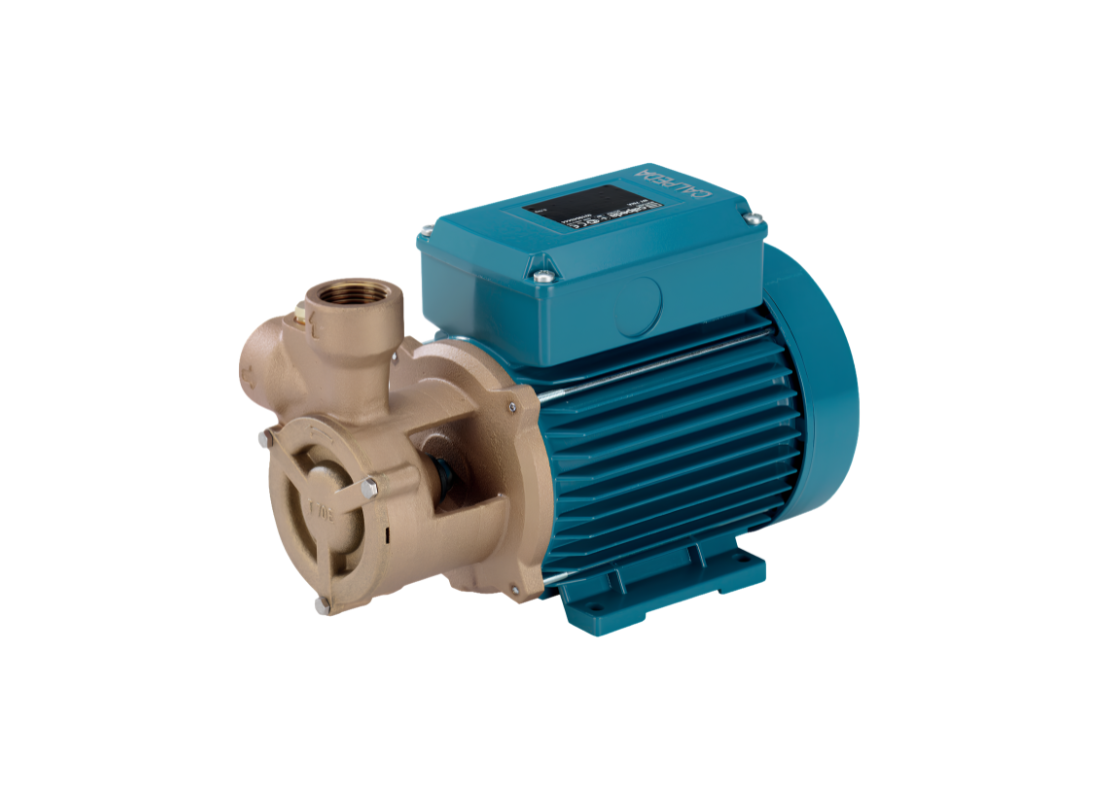

Compact marine installations operating under elevated pressure conditions often require pumps capable of stable hydraulic performance within restricted onboard equipment layouts. The Calpeda B-TP 80 peripheral electropump combines corrosion-resistant bronze hydraulic construction with a high-head pumping arrangement suitable for marine pressure systems, auxiliary circulation duties, technical liquid transfer, and compact onboard boosting applications.
The three-phase 400V motor delivers 0.75 kW rated output power while producing operating head up to 90 metres with flow performance reaching 31.5 L/Min. Its peripheral hydraulic configuration is optimized for applications where strong pressure generation is required across moderate-flow operating conditions.
A precision-machined Brass CW617N EN 12167 impeller operates within the peripheral pumping stage to maintain efficient pressure-oriented hydraulic behaviour relative to the pump’s compact dimensions. The close-coupled electropump structure also supports installation flexibility inside marine service systems, compact pressure transfer arrangements, circulation assemblies, and restricted utility equipment layouts.
Hydraulic body components including the pump casing, lantern bracket, and casing cover are manufactured from Bronze CC480K EN 1982 for improved corrosion resistance in humid and marine operating environments. The rotating assembly incorporates a Stainless Steel 1.4401 EN 10088 (AISI 316) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. The 2-pole induction motor operates near 2900 rpm with IP54 protection and Class F insulation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials. Its compact high-pressure hydraulic arrangement supports dependable pressure transfer and circulation performance across marine utility systems.
FEATURES- Bronze peripheral electropump designed for marine pressure applications
- High-head hydraulic configuration for compact boosting duties
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Bronze CC480K EN 1982 hydraulic construction improves corrosion resistance
- Compact close-coupled structure for restricted installation layouts
- Stainless Steel 1.4401 EN 10088 (AISI 316) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- IP54 motor protection with Class F insulation system
