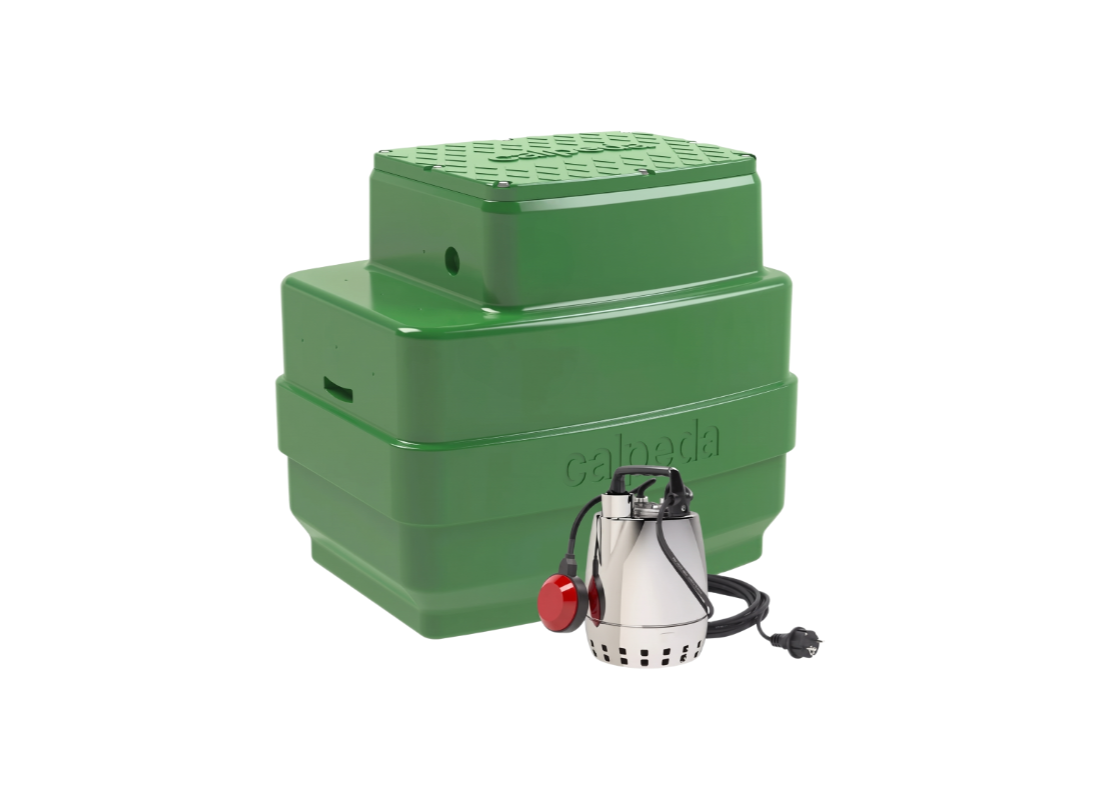

Automatic collection and lifting of domestic and civil clean or waste water is the primary focus of this 230L station. It is designed for environments where a 230-litre collection capacity and consistent pressure are necessary for transfer to main sewer lines. The system handles liquids with solids up to 10 mm at temperatures up to 35°C in a fixed vertical installation.
Powered by a 0.45 kW single-phase motor, the integrated pump delivers flow rates up to 220 L/min and a maximum head of 11.7 m. Drawing a rated current of 4.5 Amps, the unit provides reliable 240v performance for civil drainage tasks. The pumped liquid dissipates motor heat during operation, supporting safe performance during extended transfer cycles in the station well.
Corrosion-resistant polyethylene tank construction ensures a durable housing for underground or above-ground installation. Sealing is managed by a double mechanical shaft seal with an oil chamber containing oil suitable for food and pharmaceutical machinery. The motor features an incorporated capacitor, built-in thermal protector, and a triple impregnation humidity-proof dry winding.
The internal pump uses an open impeller manufactured from chrome-nickel stainless steel AISI 304 to handle suspended solids without clogging. Fluid transfer is achieved through a vertical discharge port, while an integrated suction strainer protects the internal hydraulic stages from oversized debris. This assembly provides the volume required for stable automated drainage cycles in high-demand wells.
FEATURES
- High-volume 230-liter nominal capacity polyethylene collection tank.
- Integrated GXRM submersible pump with stainless steel AISI 304 casing.
- Preassembled discharge kit for Ø40 mm PVC pipe with BSP thread.
- Automated start/stop control via a pre-installed standard float switch.
- Corrosion-resistant medium-density polyethylene tank construction.
- Double mechanical shaft seal with an integrated oil-filled chamber.
- Screw-fixed cover for secure sealing and easy pump maintenance access.
- Induction motor with triple impregnation humidity-proof dry winding.
