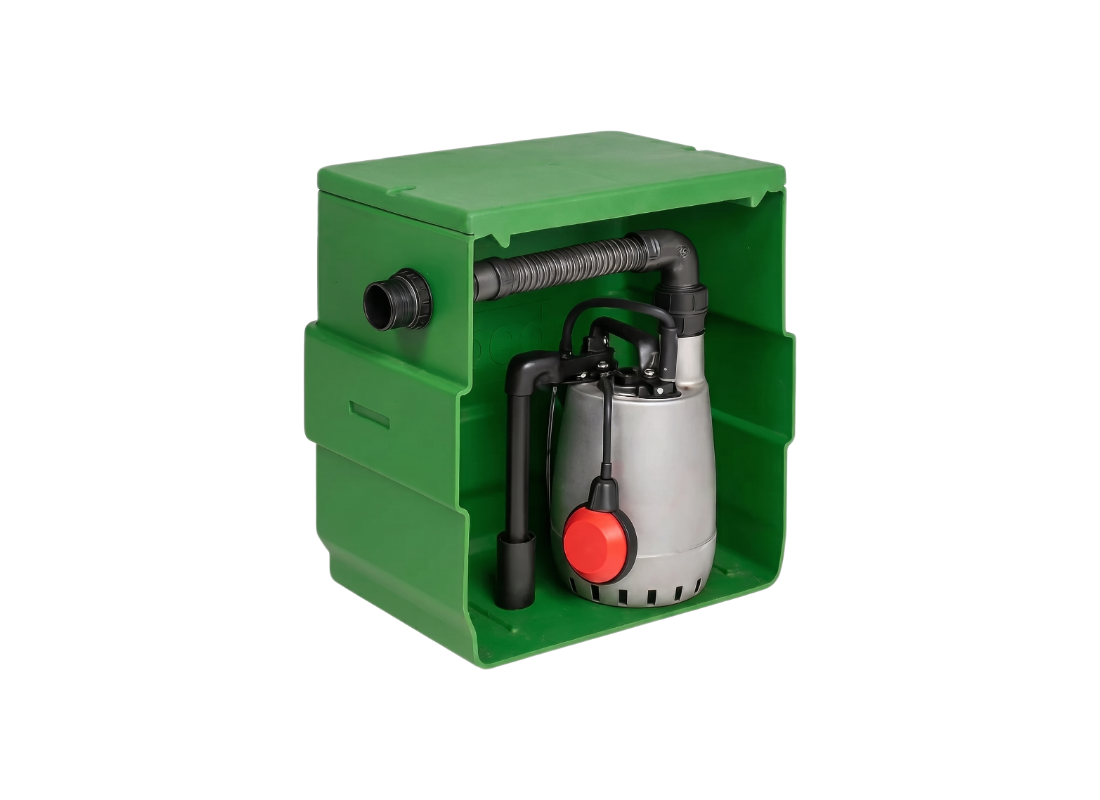

Designed for automatic collection and transfer of domestic clean or waste water, this compact lifting station is ideal for civil systems where gravity drainage is unavailable. It is engineered to lift effluents from basement levels to higher discharge points, managing liquid temperatures up to 35°C. The system is suitable for surface or underground installation in a vertical position, providing a fixed solution for residential drainage.
The 0.25 kW single-phase motor delivers a maximum flow rate of 170 L/min and reaches a total head of 8.3 m. Drawing a rated current of 2.5 Amps, the internal GXRM pump remains cooled by the passing fluid, facilitating thermal stability during the drainage process. This 240v configuration is equipped with a pre-installed standard float switch to manage automated water level cycles within the tank.
The integrated pump uses a single open impeller manufactured from chrome-nickel stainless steel for reliable liquid handling. This hydraulic design allows for the passage of suspended solids up to 10 mm in diameter through a vertical discharge port. A base-mounted filter protects the suction stage from oversized debris, while the close-coupled assembly ensures efficient flow behavior during service.
A corrosion-resistant polyethylene tank houses the internal components and provides a 40-liter nominal capacity. The assembly includes a preassembled discharge kit featuring an integrated non-return clapper valve and a Ø40 mm PVC connection. Motor protection is provided by a double shaft seal with an oil chamber containing oil suitable for food and pharmaceutical machinery.
FEATURES
- Medium-density polyethylene tank resistant to chemical and environmental corrosion.
- Integrated GXRM submersible drainage pump with AISI 304 stainless steel casing.
- Preassembled Ø40 mm PVC discharge connection kit for simplified installation.
- Integrated non-return clapper valve to prevent backflow into the station tank.
- Screw-fixed inspection cover providing secure closure and easy pump access.
- Automatic water level control managed by a pre-installed standard float switch.
- Humidity-proof induction motor winding with triple impregnation for durability.
- Compact 40L footprint suitable for restricted spaces in domestic drainage pits.
