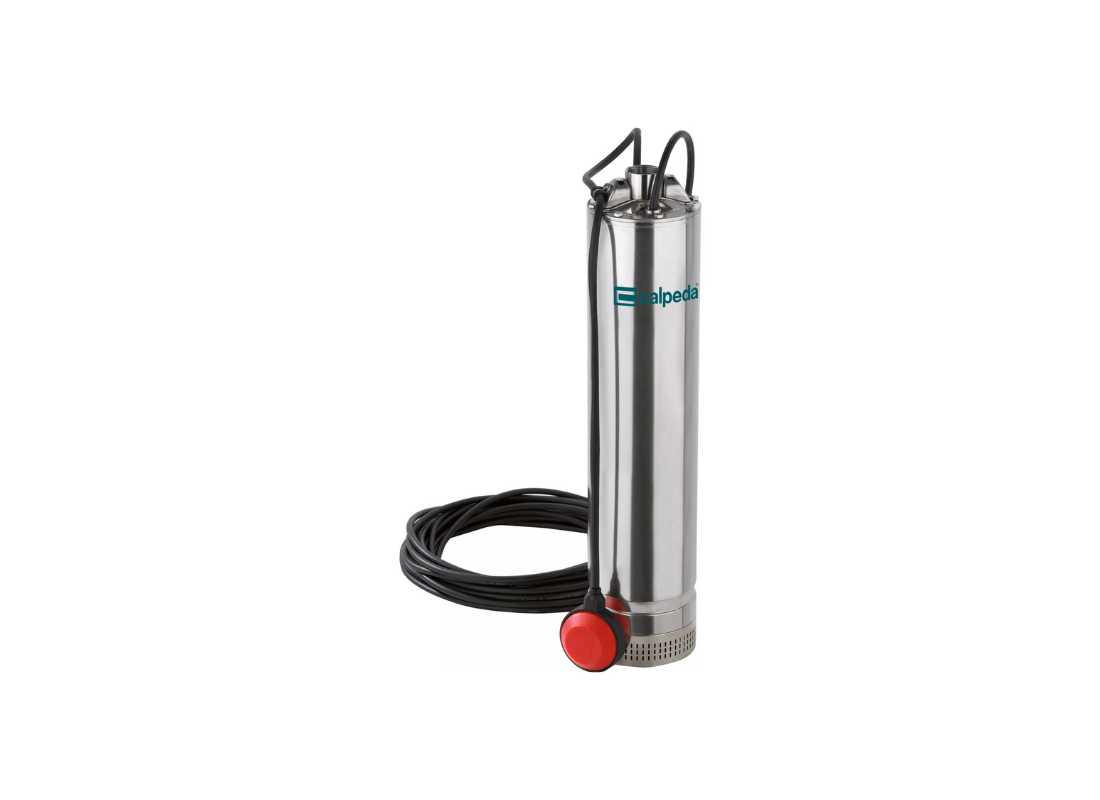

Designed for rainwater harvesting, the Calpeda MXSM 508CG with float switch manages clean water transfer from wells or reservoirs in civil and industrial environments. It handles clean liquid at temperatures up to 35°C and supports continuous duty operation in the standing position. The structure is compatible with narrow wells having a 140 mm minimum diameter.
Operating on a 240v single-phase supply, the 2.20 kW motor delivers a 133 L/min maximum flow and 78 m maximum head. Drawing a rated current of 13 Amps, cooling is provided by the pumped liquid flowing around the motor. This permits safe operation during partial submersion during extended run cycles.
Multi-stage hydraulics utilize stainless steel impellers to move fluid through the AISI 304 stage casings. To safeguard internal components, an integrated suction strainer prevents the entrance of solids with a diameter bigger than 2 mm. The capacitor is incorporated in the float switch for automated electrical configuration.
Mechanical sealing is achieved using a double mechanical shaft seal with an oil-filled chamber housing oil for food machinery and pharmaceutic use. The construction utilizes chrome-nickel stainless steel AISI 304 for the external jacket. It features a built-in thermal protector and a triple impregnation humidity-proof dry winding.
FEATURES
- Constructed using chrome-nickel stainless steel AISI 304 for all parts in contact with the clean water.
- Motor sealing is achieved using a double mechanical shaft seal with an oil-filled chamber for protection.
- Mechanical shaft seal lubrication is ensured by oil for food machinery and pharmaceutic use in the oil chamber.
- Internal cooling is achieved by fluid circulating between the motor jacket and outer shell during service.
- Base-integrated suction strainer restricts the entrance of solid particles with a diameter bigger than 2 mm.
- Safe electrical operation is maintained by a built-in thermal protector and a capacitor incorporated in the float switch.
- Triple impregnation humidity-proof dry winding used for the motor according to EN 60335-2-41 standards.
- Suitable for continuous duty operation with IPX8 protection for immersion up to 20 meters.
