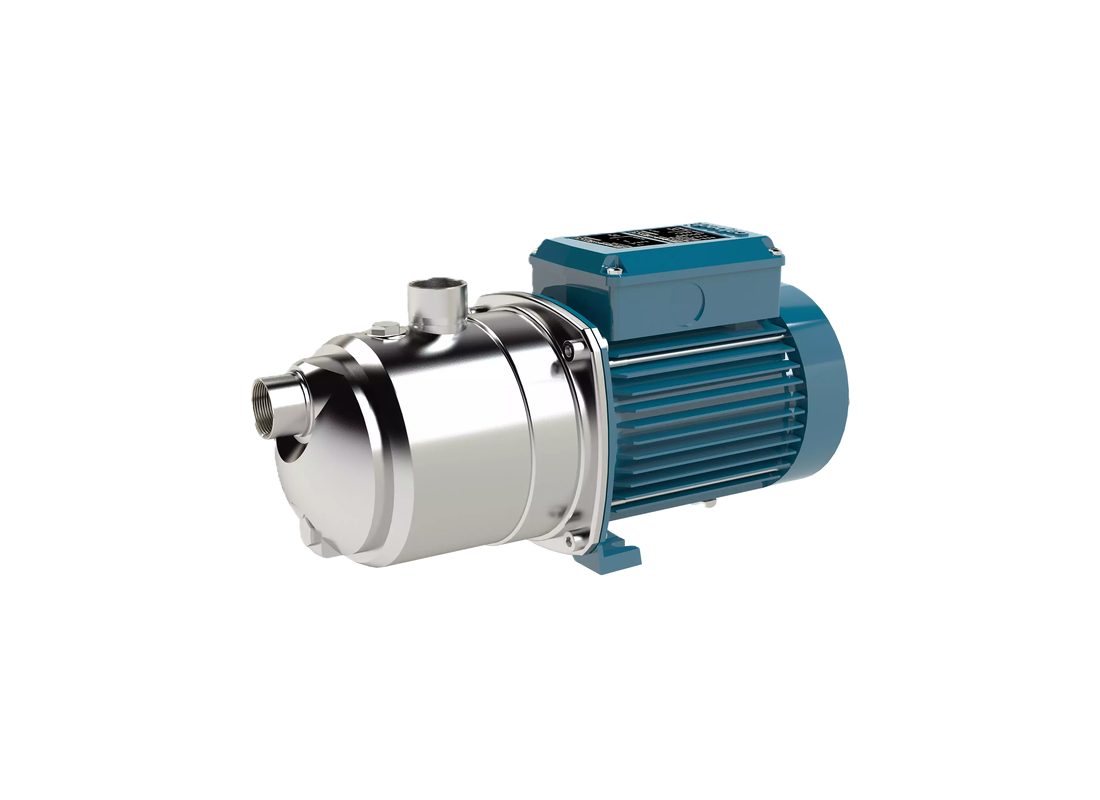

Residential water systems and shallow-well installations often require stable self-priming capability to maintain consistent pressure during fluctuating demand. The Calpeda NGXM 2/80 combines self-priming jet pump performance with a space-saving close-coupled design, making it suitable for shallow-well supply, garden distribution, and domestic clean water transfer applications.
A built-in ejector system supports suction lift capability up to 9 m and enables fast priming operation during start-up. Maximum flow reaches 53 L/Min with head up to 43 m, supporting dependable pressure delivery across light residential networks and washing arrangements.
An exclusive diffuser geometry and integrated flow control device assist in lowering hydraulic turbulence and reducing operational noise during continuous-duty operation. Improved internal air evacuation around the mechanical seal helps prevent seal stress caused by temporary abnormal suction conditions.
Both the pump casing and casing cover are manufactured from AISI 304 stainless steel for improved corrosion resistance, while the Noryl PPO-GF20 impeller supports lightweight hydraulic efficiency. The compact configuration simplifies installation into restricted utility spaces.
The single-phase 240V motor delivering 0.55 kW rated output power operates with integrated thermal protection, IP54 enclosure rating, and Class F insulation. Continuous-duty operation is supported for liquid temperatures up to 35°C with maximum permissible casing pressure reaching 8 bar.
FEATURES- Self-priming jet pump with built-in ejector system
- Suction lift capability up to 9 m for shallow-well installations
- Exclusive diffuser with flow control device reducing hydraulic noise
- Improved air evacuation helping protect mechanical seal operation
- Compact close-coupled construction simplifying installation
- AISI 304 stainless steel casing and casing cover for corrosion resistance
- Noryl PPO-GF20 impeller supporting lightweight hydraulic performance
