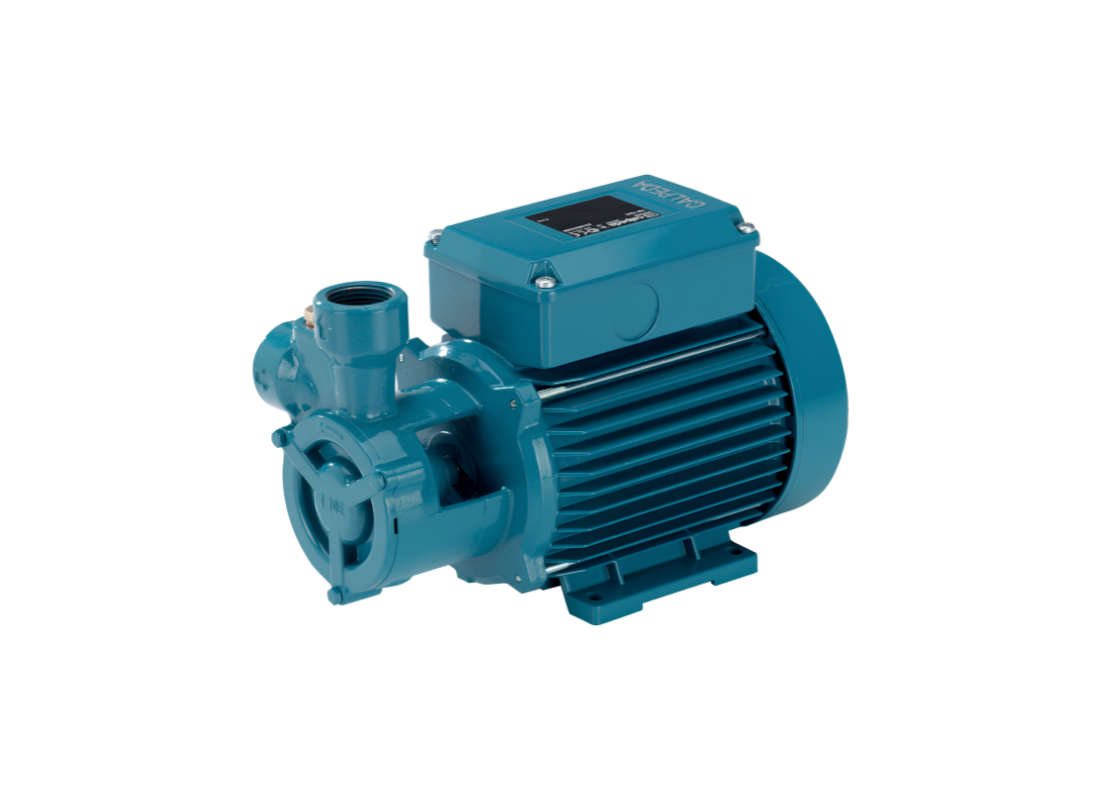

Compact circulation systems operating under elevated pressure conditions require pumps capable of maintaining dependable hydraulic performance while fitting within restricted installation layouts. The Calpeda TM 76 peripheral electropump is configured for these duties through its pressure-oriented peripheral hydraulic arrangement and close-coupled compact construction suitable for industrial circulation systems, domestic pressure support installations, and controlled clean liquid transfer applications.
Its single-phase 230V motor operates with 1.44 kW P1 input power while generating operating head up to 70 metres and flow performance reaching 60 L/Min. This hydraulic characteristic supports installations where elevated pressure delivery is required alongside moderate-flow operation across utility circulation and boosting duties.
A precision-machined Brass CW617N EN 12167 impeller operates within the peripheral pumping stage to maintain stable pressure generation relative to the pump’s compact dimensions. The close-coupled electropump structure also improves installation flexibility inside compact industrial utility systems, pressure transfer arrangements, circulation assemblies, and technical water handling installations.
Hydraulic body components including the pump casing, lantern bracket, and casing cover are manufactured from Cast Iron GJL 200 EN 1561 for dependable mechanical durability during continuous-duty service conditions. The rotating assembly incorporates a Steel 1.4104 EN 10088 (AISI 430F) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. Integrated thermal protection, IP54 motor protection, and Class F insulation support reliable long-term operation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials. Its compact high-pressure hydraulic arrangement supports dependable industrial circulation and pressure transfer performance.
FEATURES- Peripheral electropump designed for compact high-pressure applications
- Single-phase motor with integrated thermal protector
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Cast Iron GJL 200 EN 1561 hydraulic body construction
- Compact close-coupled structure for restricted installation layouts
- Steel 1.4104 EN 10088 (AISI 430F) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- IP54 motor protection with Class F insulation system
