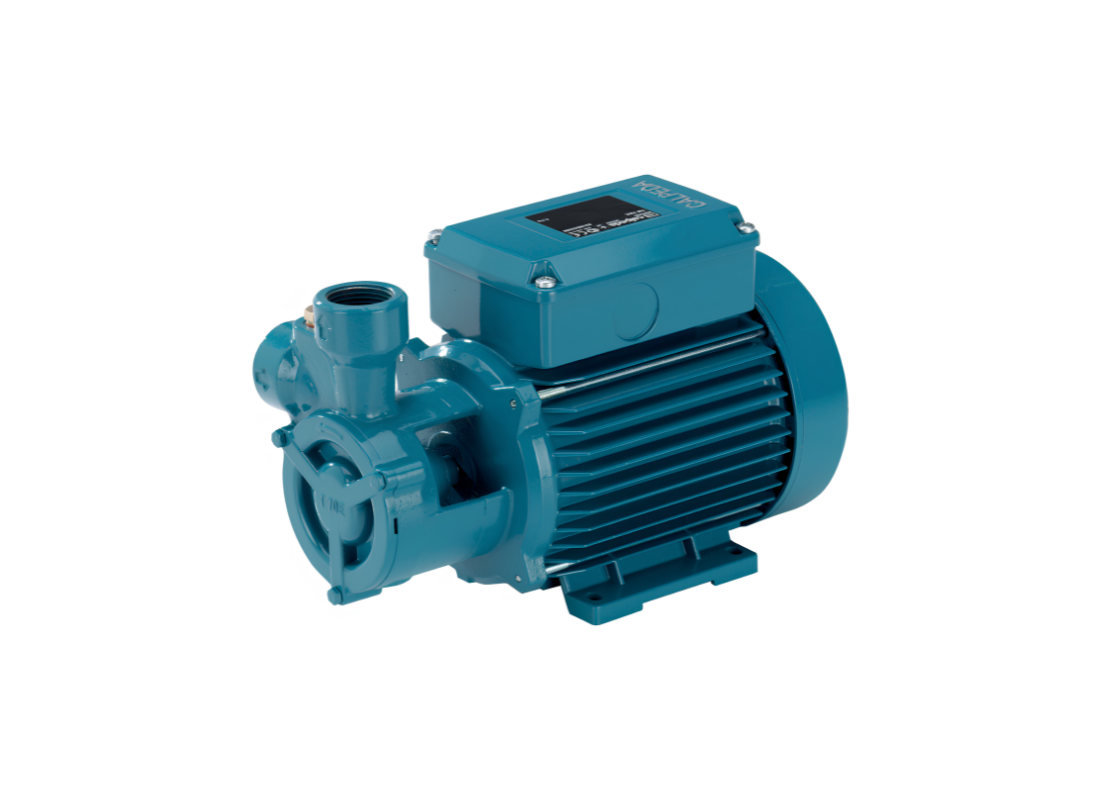

High-pressure industrial installations often require compact pumps capable of delivering stable hydraulic performance under elevated head conditions. The Calpeda TP 100 peripheral electropump is engineered for these demanding duties through its pressure-oriented peripheral hydraulic configuration suitable for industrial feed systems, pressure boosting arrangements, technical circulation duties, and controlled clean liquid transfer applications.
The three-phase 400V motor delivers 2.2 kW rated output power while producing operating head up to 150 metres with flow performance reaching 40 L/Min. This high-head hydraulic characteristic makes the TP 100 particularly suitable for installations where substantial pressure generation is required within compact equipment layouts and moderate-flow operating conditions.
Its peripheral pumping stage incorporates a precision-machined Brass CW617N EN 12167 impeller configured to maintain efficient pressure-oriented hydraulic behaviour relative to the pump’s compact dimensions. The close-coupled electropump structure also improves installation flexibility inside industrial utility systems, technical feed arrangements, circulation assemblies, and pressure transfer installations.
Hydraulic body components including the pump casing, lantern bracket, and casing cover are manufactured from Cast Iron GJL 200 EN 1561 for dependable mechanical rigidity during continuous-duty operation. The rotating assembly incorporates a Steel 1.4104 EN 10088 (AISI 430F) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. The 2-pole induction motor operates near 2900 rpm with IP54 protection and Class F insulation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials. Its compact high-pressure hydraulic arrangement supports dependable feed transfer and circulation performance across industrial and technical liquid handling systems.
FEATURES- High-pressure peripheral electropump for industrial feed applications
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Cast Iron GJL 200 EN 1561 hydraulic construction improves durability
- Compact close-coupled structure for industrial installation layouts
- Steel 1.4104 EN 10088 (AISI 430F) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- 2-pole induction motor operating near 2900 rpm
- IP54 motor protection with Class F insulation system
