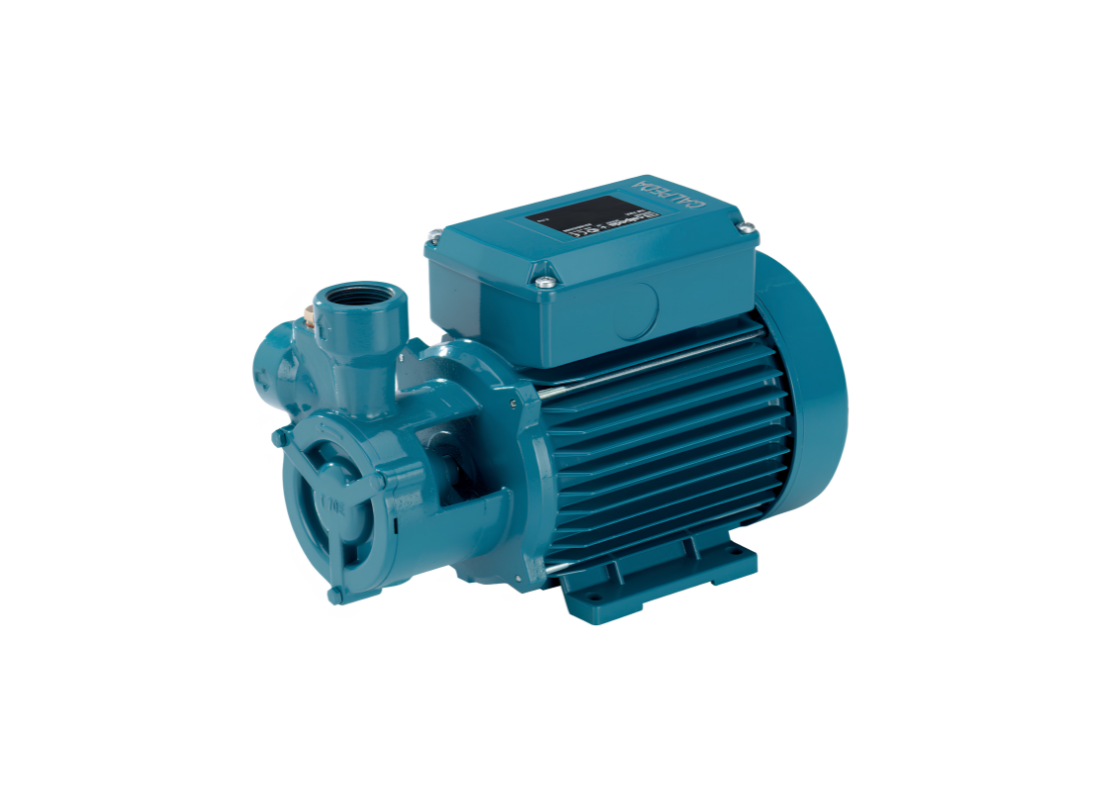

Industrial transfer systems operating under elevated pressure conditions require pumps capable of delivering dependable hydraulic performance across demanding continuous-duty applications. The Calpeda TP 132 peripheral electropump is engineered for these duties through its high-head peripheral hydraulic configuration suitable for industrial pressure transfer, technical circulation systems, compact boosting installations, and controlled clean liquid handling applications.
The three-phase 400V motor delivers 7.5 kW rated output power while producing operating head up to 165 metres with flow performance reaching 100 L/Min. This pressure-oriented hydraulic characteristic makes the TP 132 particularly suitable for installations where substantial pressure generation and moderate-flow transfer performance are required within industrial utility and technical process systems.
The peripheral pumping stage incorporates a precision-machined Brass CW617N EN 12167 impeller configured to maintain stable pressure-oriented hydraulic behaviour relative to the pump’s compact dimensions. The close-coupled electropump structure also supports installation flexibility inside industrial utility systems, technical feed arrangements, compact circulation assemblies, and high-pressure transfer installations.
Hydraulic body components including the pump casing, lantern bracket, and casing cover are manufactured from Cast Iron GJL 200 EN 1561 for dependable structural rigidity during continuous-duty operation. The rotating assembly incorporates a Steel 1.4104 EN 10088 (AISI 430F) shaft together with a Carbon-Ceramic-NBR mechanical seal arrangement. The 2-pole induction motor operates near 2900 rpm with IP54 protection and Class F insulation.
The pump is suitable for clean liquids without abrasive particles, suspended solids, or aggressive substances incompatible with hydraulic materials. Its compact high-pressure hydraulic arrangement supports dependable transfer and circulation performance across industrial and technical liquid handling systems.
FEATURES
- High-head peripheral electropump for industrial pressure applications
- Brass CW617N EN 12167 impeller supports elevated pressure generation
- Cast Iron GJL 200 EN 1561 hydraulic construction improves durability
- Compact close-coupled structure for industrial installation layouts
- Steel 1.4104 EN 10088 (AISI 430F) shaft construction
- Carbon-Ceramic-NBR mechanical sealing arrangement
- 2-pole induction motor operating near 2900 rpm
- IP54 motor protection with Class F insulation system
