DAB E Series Deep Well Injector Kit for DP151M and DP251M Pumps

The DAB E Series Deep Well Injector Kit is designed to convert compatible DAB deep well jet pumps into high-performance deep suction pumping systems. Specifically engineered for use with DAB DP151M and DP251M pumps, the kit enables efficient water extraction from deep bores or offset wells where suction depths exceed the capability of standard surface pumps.

Installed within the well, the injector assembly uses a Venturi nozzle system to create additional suction, allowing the pump to lift water from depths of up to approximately 27 metres. This makes the system suitable for rural water supply, agricultural irrigation and installations drawing water from deep wells, dams or underground sources.

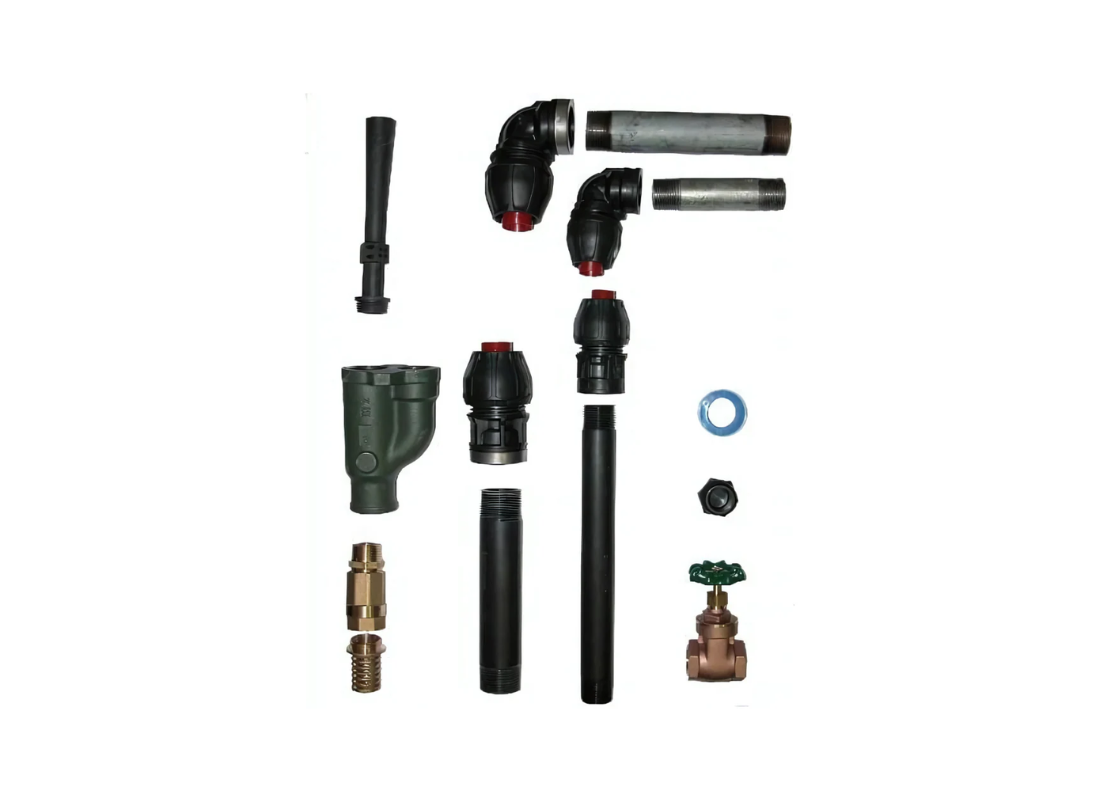

Each E Series injector kit includes the key components required for deep well operation such as the injector body with nozzle and Venturi, foot valve, control valve and associated pipe fittings. The system is typically installed in wells with a diameter of 100 mm or larger and paired with the appropriate suction and delivery pipework for reliable deep water extraction.

FEATURES

• Deep well injector kit for DAB DP151M and DP251M pumps

• Venturi injector system for deep suction pumping

• Suitable for wells and bores 100mm diameter or larger

• Maximum suction depth up to 27 metres

• Includes injector body with nozzle and Venturi

• Foot valve for maintaining pump prime

• Control valve and galvanised pump fittings

• Polypropylene tailpipes and pipe connections

• Designed for rural water supply and irrigation systems
