Davey 151-SERVKIT-RN UV151 Replacement Service Kit

Maintenance procedures for the Davey Steriflo UV151 series are supported by the 151-SERVKIT-RN service kit, providing a bundled solution for annual system upkeep. This kit is used to maintain the microbiological barrier in very large residential or commercial water systems. It is suitable for systems treating rainwater, bore water, or mains supplies at high flow rates. The kit includes the necessary consumable elements to maintain the system's performance and ensure that particles do not interfere with the ultraviolet treatment process.

The kit contains a 101W high-output ultraviolet lamp and a corresponding high-purity quartz sleeve. These components are designed for use within the 316L Stainless Steel UV reactor to provide consistent UV-C radiation. The quartz sleeve provides the required thermal insulation for the lamp, while the EPDM rubber o-rings provide secure internal seals. The kit is compatible with systems operating at water temperatures between 2 and 40 degrees Celsius. The ultraviolet lamp has a 10,000 hour rated service life.

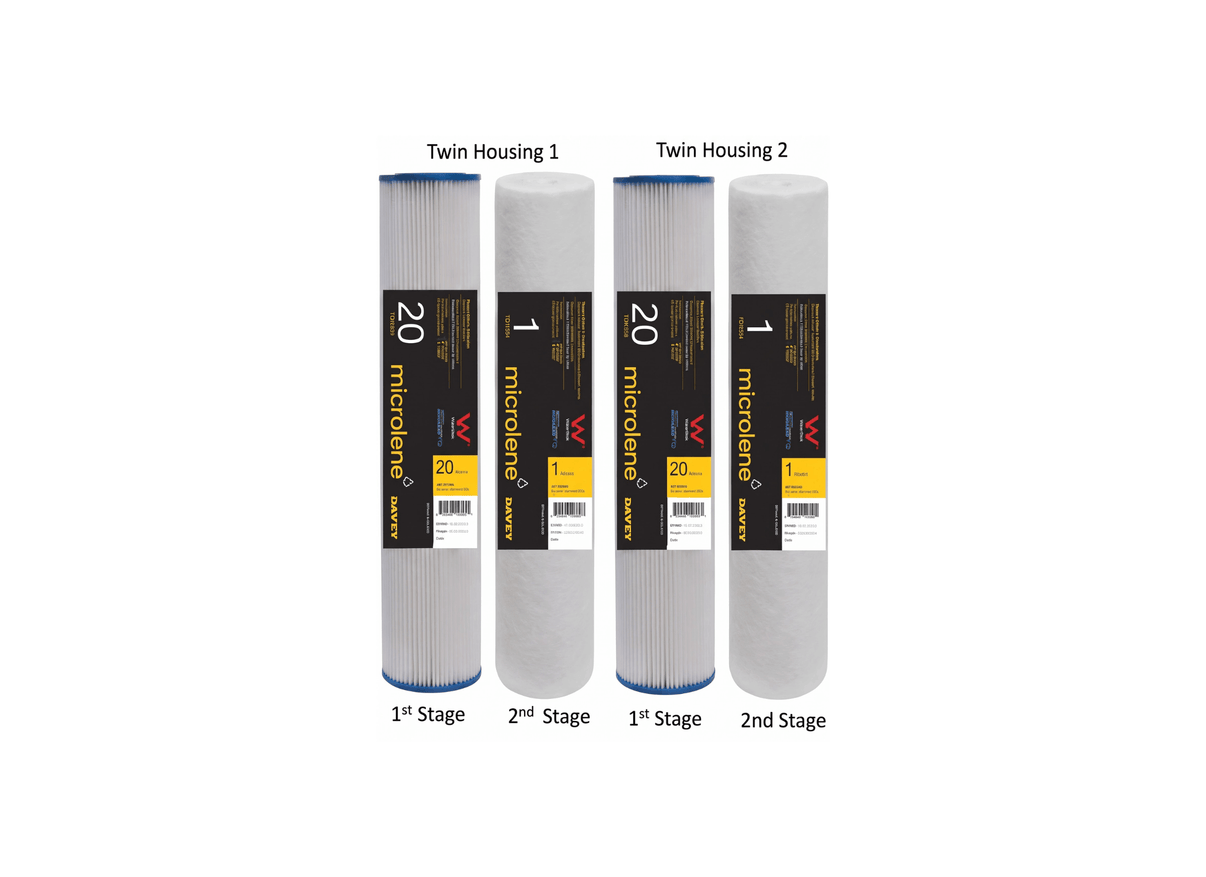

Filtration is managed through a two-stage process using the included jumbo cartridges. The kit features two 20 micron pleated filters (20PP20J) for initial sediment removal and two 1 micron polyspun filters (1PS20J) for finer particulate and cyst control. These filters are sized for 20 inch jumbo housings with 50 mm connections. The system is designed for a maximum operating pressure of 860 kPa. The use of these specific cartridges ensures that the water remains clear for optimal ultraviolet light transmission.

Maintenance is performed through the tool-free design of the compatible UV systems, allowing for quick lamp and sleeve replacement with a quarter-turn. The inclusion of new o-rings ensures the integrity of the seals is maintained during each service interval. The 151-SERVKIT-RN is a bundled solution that improves ordering and stock management by providing all essential parts in a single package. High-quality parts are used throughout to provide performance over the life of the components. It is the designated service kit for the Davey Steriflo UV151 range.

FEATURES

• Complete service kit for Davey Steriflo UV151 and KUV151A systems
• Includes 101W high-output ultraviolet lamp with 10,000 hour life
• High-purity quartz sleeve with EPDM rubber o-rings included
• Dual 20 micron pleated jumbo sediment filter cartridges for treatment
• Dual 1 micron polyspun jumbo filter cartridges for fine sediment control
• Bundled component package for simplified maintenance and ordering
• Enables tool-free lamp and sleeve replacement for the operator

Warranty: 1 year warranty for the lamp, sleeve, and filter cartridges.
