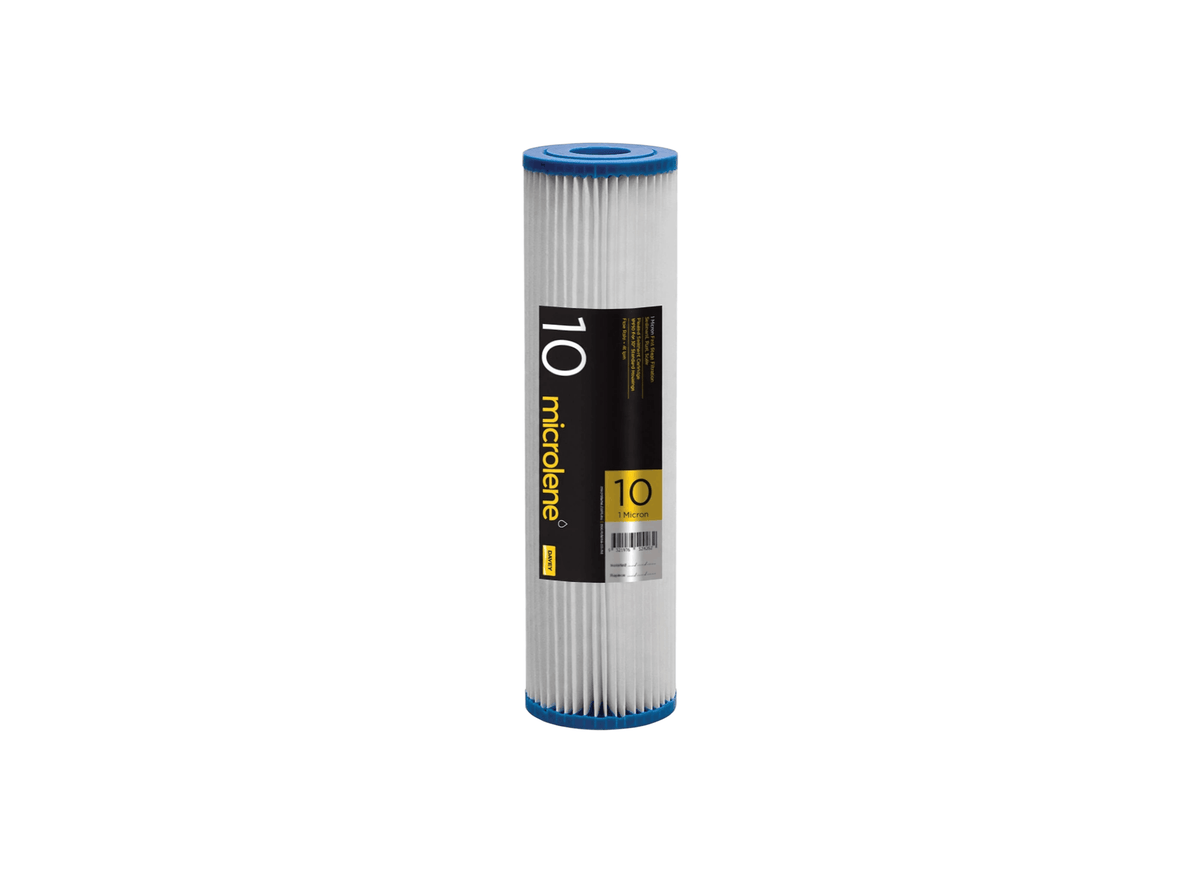

Davey 1PP10 Poly Pleated Sediment Removal 1 Micron 10" Replacement Cartridge

At the finest standard 10-inch filtration level in this range, the 1PP10 Microlene Poly Pleated Sediment Removal Cartridge provides 1-micron sediment filtration using pleated polyester media. Its listed applications include drinking water, beverage industry, mineral water bottling, laboratory use, food industry and prefiltration ahead of sub-micron filters or Reverse Osmosis.

The cartridge is rated at 41 lpm and uses a pleated structure to increase the available filtration surface area. This arrangement supports dirt-holding capacity, longer run length and low pressure drop, with the cartridges particularly useful in low-pressure applications such as domestic supplies using header tanks or roof water.

Cleaning is possible under a tap or with gentle hosing, although the supplied information notes that 1-micron cartridges may only be cleanable once or twice. Cleaning should be carried out when flow becomes too low or head loss reaches 15 psi, with replacement required when cleaning is no longer effective. Bleach sterilisation is specified before reuse.

The pliable endcaps and rigid centre core are thermally bonded to form integral joints, providing added strength and long service life. The cartridge has a maximum temperature rating of 52°C and uses white construction with blue endcaps.

Features

• 1-micron filtration provides the finest sediment rating within the standard PP10 range.
• 41 lpm flow rate is the specified capacity for this filtration grade.
• Pleated polyester construction provides increased surface area for fine sediment capture.
• Low pressure drop characteristics support filtration in low-pressure water supply applications.
• Thermal bonding creates integral joints between the pliable endcaps and rigid centre core.
• 1-micron cartridges may only be cleanable once or twice, according to the supplied product information.
• Maximum liquid temperature is 52°C, with bleach sterilisation specified before reuse.
