Davey 24-SERVKIT-RN UV24 Replacement Service Kit

Maintenance procedures for the Davey Steriflo UV24 series are supported by the 24-SERVKIT-RN service kit, which provides the necessary components for annual system upkeep. This kit is used to ensure the continued effectiveness of the microbiological barrier in small residential water systems. It is suitable for systems treating rainwater, bore water, or mains supplies. The kit includes the primary consumable elements required to maintain the system's disinfection performance and water clarity through its filtration stages.

The kit contains a 22W high-output ultraviolet lamp and a corresponding high-purity quartz sleeve. These components are designed to work together within the 304 Stainless Steel UV reactor to provide consistent UV-C radiation. The quartz sleeve provides the necessary thermal insulation for the lamp, while the EPDM rubber o-rings ensure secure sealing. The kit is compatible with systems operating at water temperatures between 2 and 40 degrees Celsius. The ultraviolet lamp has a rated service life of 9,000 hours.

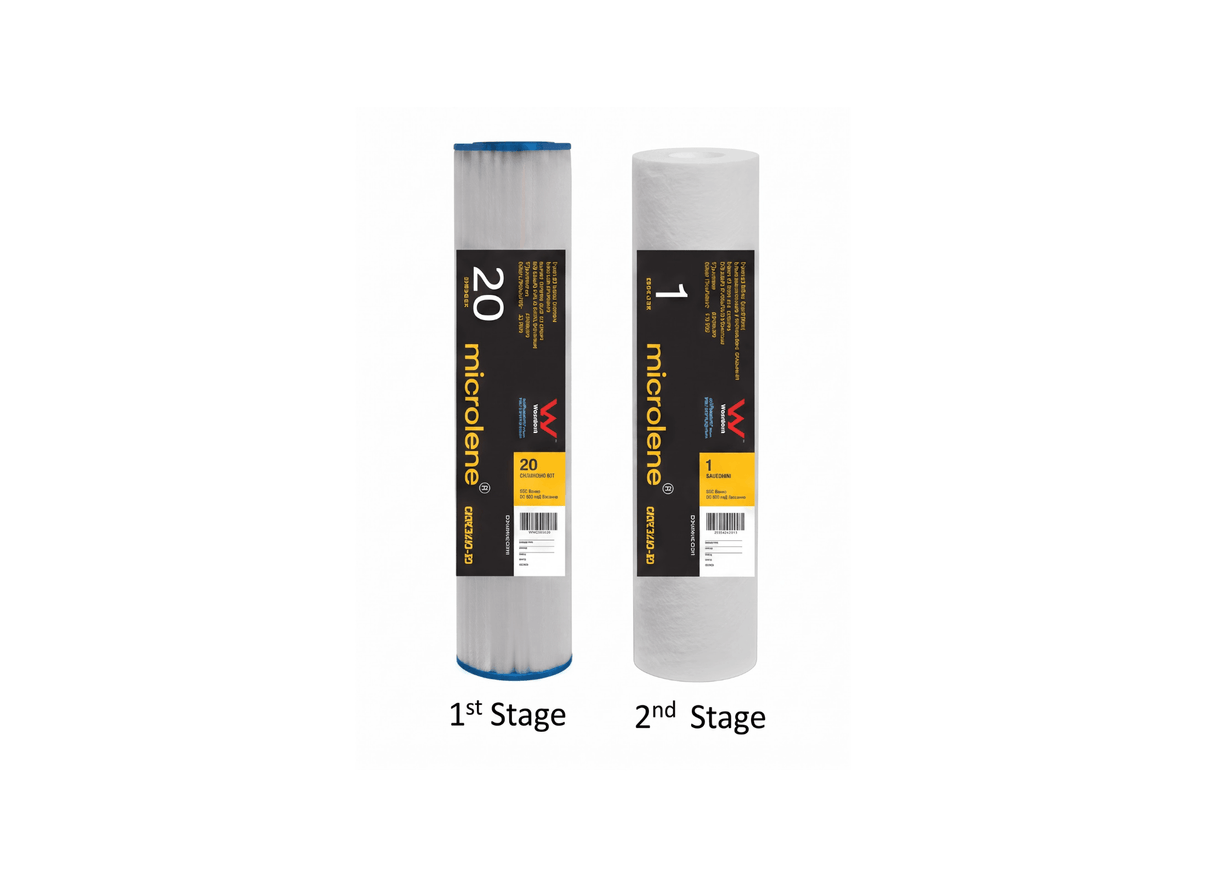

Filtration is managed through a two-stage process using the included cartridges. The kit features one 20 micron pleated filter (20PP10J) for initial sediment removal and one 1 micron polyspun filter (1PS10) for finer particulate and cyst control. These filters are sized for 10 inch standard housings with 20 mm connections. The system is designed for a maximum operating pressure of 860 kPa. The use of these specific cartridges ensures that particles do not shield micro-organisms from the ultraviolet light.

Maintenance is facilitated by the tool-free design of the compatible UV systems, allowing for quick lamp and sleeve replacement. The inclusion of new o-rings with every lamp and sleeve ensures the integrity of the seals is maintained. The 24-SERVKIT-RN is a bundled solution that improves ordering and stock management by providing all essential parts in a single package. High-quality parts are used throughout to provide performance for the duration of the service interval. It is an essential component for the upkeep of the Davey Steriflo UV24 range.

FEATURES

• Complete service kit for Davey Steriflo UV24 and KUV24 systems
• Includes 22W high-output ultraviolet lamp with 9,000 hour life
• High-purity quartz sleeve with EPDM rubber o-rings included
• 20 micron pleated sediment filter cartridge for initial treatment
• 1 micron polyspun filter cartridge for fine sediment and cyst control
• Bundled component package for simplified maintenance and ordering
• Enables tool-free lamp and sleeve replacement for the operator

Warranty: 1 year warranty for the lamp, sleeve, and filter cartridges.
