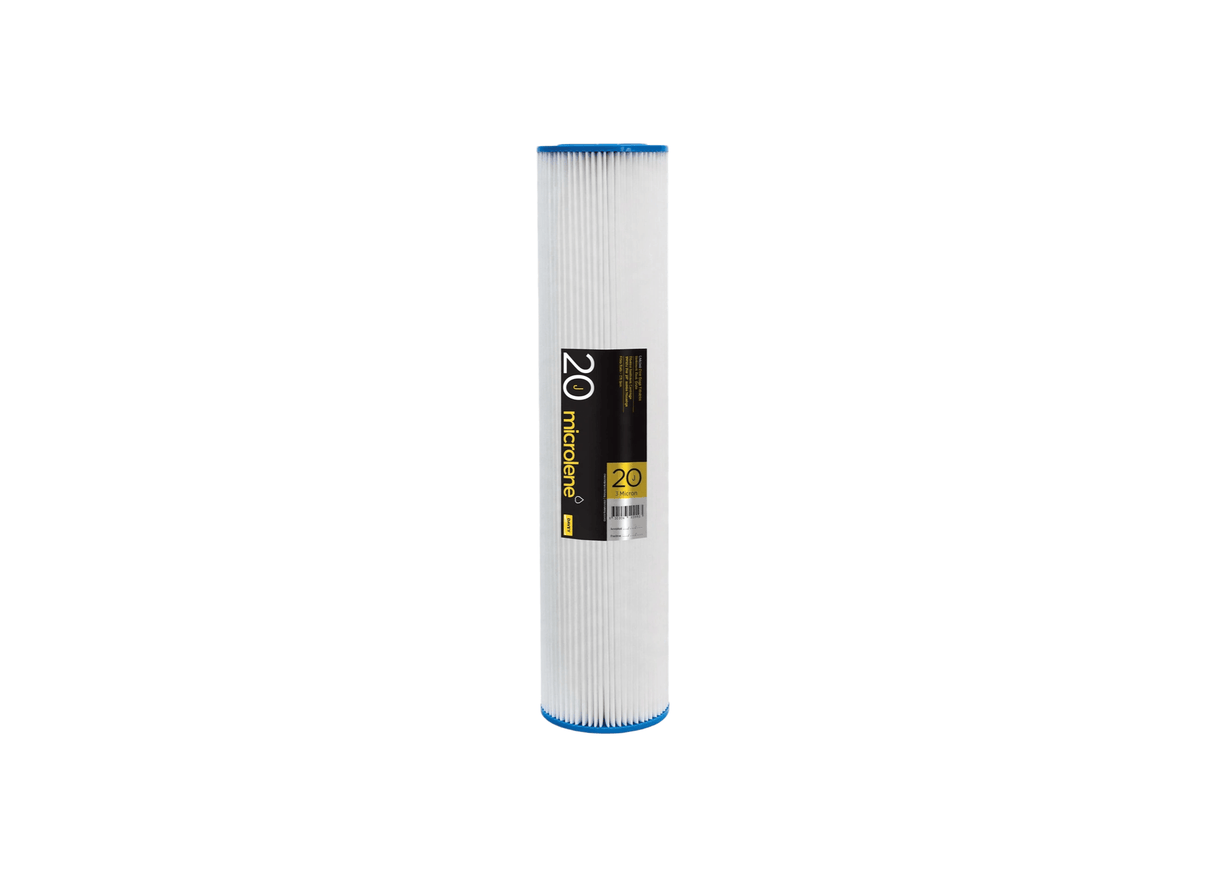

Davey 50PP20J Poly Pleated Sediment Removal 50 Micron 20" Jumbo Replacement Cartridge

For high-volume sediment filtration, the 50PP20J Microlene Poly Pleated Sediment Removal Cartridge combines 50-micron polyester pleated media with a 20-inch Jumbo format. It is listed for drinking water, beverage industry, mineral water bottling, laboratory and food industry applications, including prefiltration where high flow rates are required.

The 20-inch Jumbo length and 4.5-inch diameter provide a large pleated filtration area for sediment loading, supporting high dirt-holding ability and longer run length. Flow is specified at 200 lpm, providing the capacity required for higher-volume water supply and process applications.

Maintenance can be performed by hosing or cleaning the cartridge when sediment loading affects flow. The supplied information allows multiple cleaning cycles before replacement, with cleaning recommended when head loss reaches 15 psi. Bleach sterilisation is specified before reuse.

Thermally bonded construction creates integral joints between the pliable endcaps and rigid centre core, providing added strength and long service life. The cartridge has a maximum liquid temperature of 52°C and uses white construction with blue endcaps.

Features

• 50-micron polyester filtration provides sediment removal at the specified 200 lpm flow rate.
• 20-inch Jumbo length and 4.5-inch diameter provide increased filtration surface area.
• Pleated construction supports high dirt-holding ability and longer run length.
• High-volume format provides the specified capacity for compatible 20-inch Jumbo filter housings.
• Thermally bonded joints connect the pliable endcaps with the rigid centre core for added structural strength.
• Reusable construction allows multiple cleaning cycles before replacement is required.
• Maximum operating temperature is 52°C, with bleach sterilisation specified before reuse.
