Davey 80-SERVKIT-RN UV80 Replacement Service Kit

System upkeep for the Davey Steriflo UV80 series is managed by the 80-SERVKIT-RN service kit, which provides the required components for annual maintenance. This kit is used to ensure the continued effectiveness of the microbiological barrier in high-capacity residential water systems. It is suitable for systems treating rainwater, bore water, or mains supplies in high-demand environments. The kit includes the primary consumable elements needed to maintain the system's disinfection performance and ensure optimal water clarity through its filtration stages.

The kit contains a 42W high-output ultraviolet lamp and a corresponding high-purity quartz sleeve. These components are designed to work within the 304 Stainless Steel UV reactor to provide consistent UV-C radiation. The quartz sleeve provides the necessary thermal insulation for the lamp, while the EPDM rubber o-rings ensure secure internal seals. The kit is compatible with systems operating at water temperatures between 2 and 40 degrees Celsius. The ultraviolet lamp has a 9,000 hour rated service life.

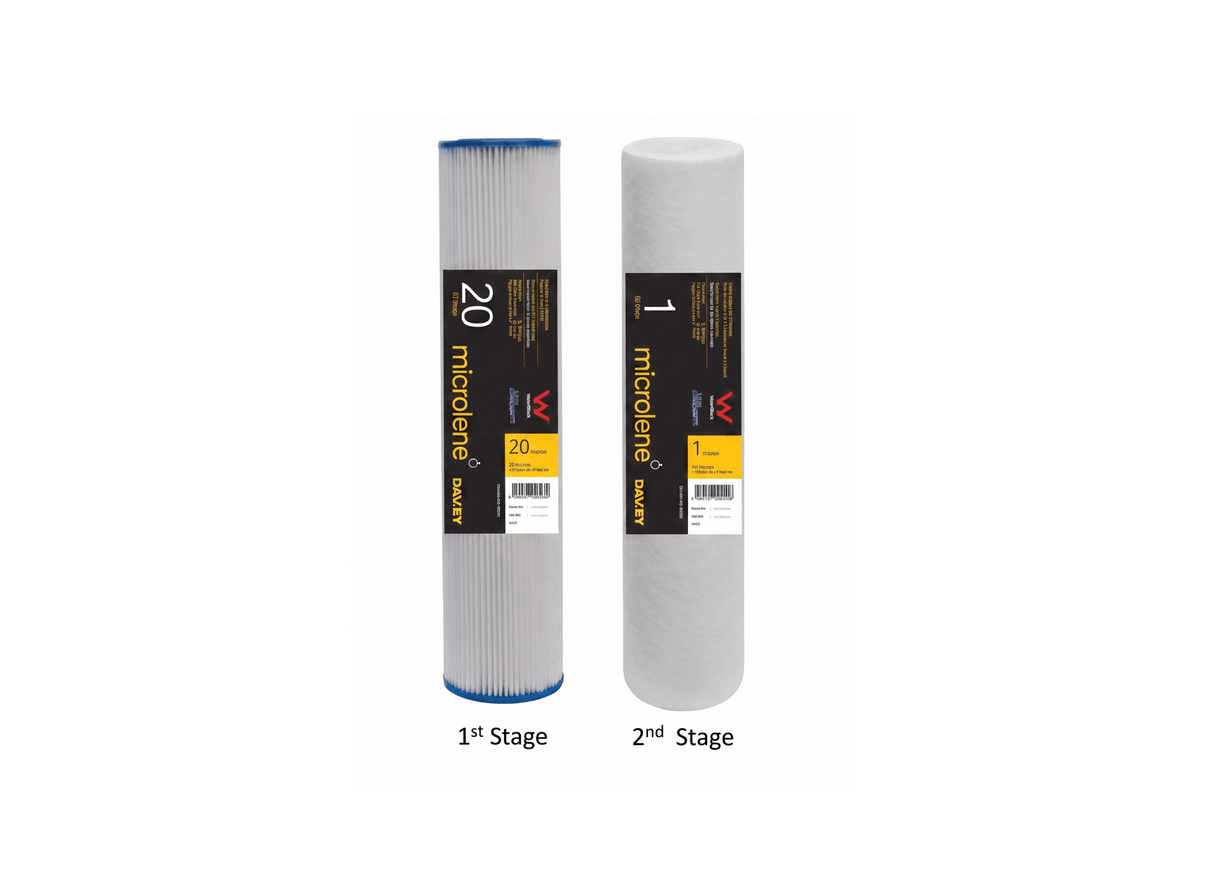

Filtration is managed through a two-stage process using the included jumbo cartridges. The kit features one 20 micron pleated filter (20PP20J) for initial sediment removal and one 1 micron polyspun filter (1PS20J) for finer particulate and cyst control. These filters are sized for 20 inch jumbo housings with 25 mm connections. The system is designed for a maximum operating pressure of 860 kPa. The use of these specific cartridges ensures that particles do not shield micro-organisms from the ultraviolet light.

Maintenance is facilitated by the tool-free design of the compatible UV systems, allowing for quick lamp and sleeve replacement. The inclusion of new o-rings with every lamp and sleeve ensures the integrity of the seals is maintained. The 80-SERVKIT-RN is a bundled solution that improves ordering and stock management by providing all essential parts in a single package. High-quality parts are used throughout to provide performance for the duration of the service interval. It is an essential component for the upkeep of the Davey Steriflo UV80 range.

FEATURES

• Complete service kit for Davey Steriflo UV80 and KUV80A systems
• Includes 42W high-output ultraviolet lamp with 9,000 hour life
• High-purity quartz sleeve with EPDM rubber o-rings included
• 20 micron pleated jumbo sediment filter cartridge for initial treatment
• 1 micron polyspun jumbo filter cartridge for fine sediment control
• Bundled component package for simplified maintenance and ordering
• Enables tool-free lamp and sleeve replacement for the operator

Warranty: 1 year warranty for the lamp, sleeve, and filter cartridges.
