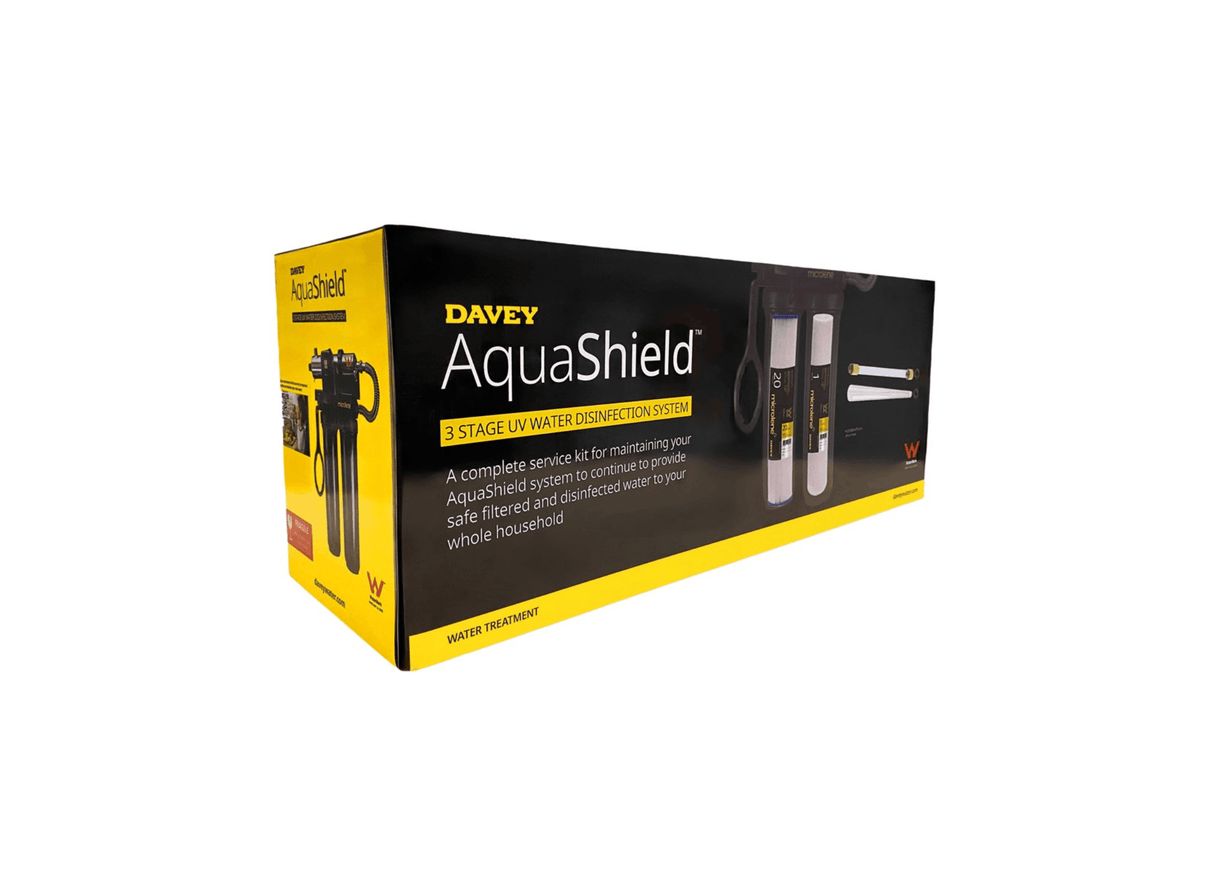

Davey AQS-SERVKIT-S AquaShield Sediment UV Replacement Service Kit

System upkeep for the AquaShield 3-stage UV systems is managed by the AQS-SERVKIT-S service kit, which provides the required components for maintenance on untreated water sources. This kit is used to ensure the continued effectiveness of the microbiological barrier in systems treating rainwater or bore water. It includes the primary consumable elements needed to maintain the system's disinfection performance and ensure optimal water clarity through its filtration stages. The kit provides a complete service solution by combining all essential components into a single package.

The kit contains a 45W high-output ultraviolet lamp (MC-HOLP) and a corresponding lamp sleeve (MC-HOSL). These components are designed to work together to provide consistent UV-C radiation. The sleeve provides the necessary thermal insulation for the lamp to maintain the required output. The kit is compatible with systems operating at water temperatures between 2 and 40 degrees Celsius. The ultraviolet lamp has a 9,000 hour rated service life, necessitating replacement once per year for continuous microbiological control.

Filtration is managed through a two-stage process using the included cartridges. The kit features one 20 micron polypleated filter cartridge (20PP20J) for initial sediment removal and one 1 micron polyspun filter cartridge (1PS20J). The 1 micron polyspun cartridge has a rating for greater than 99 percent Cryptosporidium cyst removal. These filters are sized for 20 inch jumbo housings with 25 mm connections. The system is designed for a maximum operating pressure of 860 kPa. These cartridges ensure that particles do not shield micro-organisms from the ultraviolet light.

Maintenance is facilitated by the user-friendly packaging of the AQS-SERVKIT-S, which allows for fast and easy identification of the parts. The inclusion of all necessary components in a single package improves ordering and stock management. High-quality parts are used throughout the kit to provide performance during the service interval. This kit is an essential component for the upkeep of AquaShield systems in rainwater and bore water applications. Regular maintenance ensures that the system provides a continuous barrier against waterborne pathogens.

FEATURES

• Complete service kit for AquaShield 3-stage UV systems on rainwater or bore water
• Includes 45W high-output ultraviolet lamp and protective lamp sleeve
• 20 micron polypleated filter cartridge for initial sediment removal
• 1 micron polyspun filter cartridge for fine sediment and cyst control
• Achieves greater than 99 percent Cryptosporidium cyst removal rating
• Bundled component package for simplified maintenance and ordering
• User-friendly packaging for fast and easy part identification

Warranty: 1 year warranty for the lamp, sleeve, and filter cartridges.
