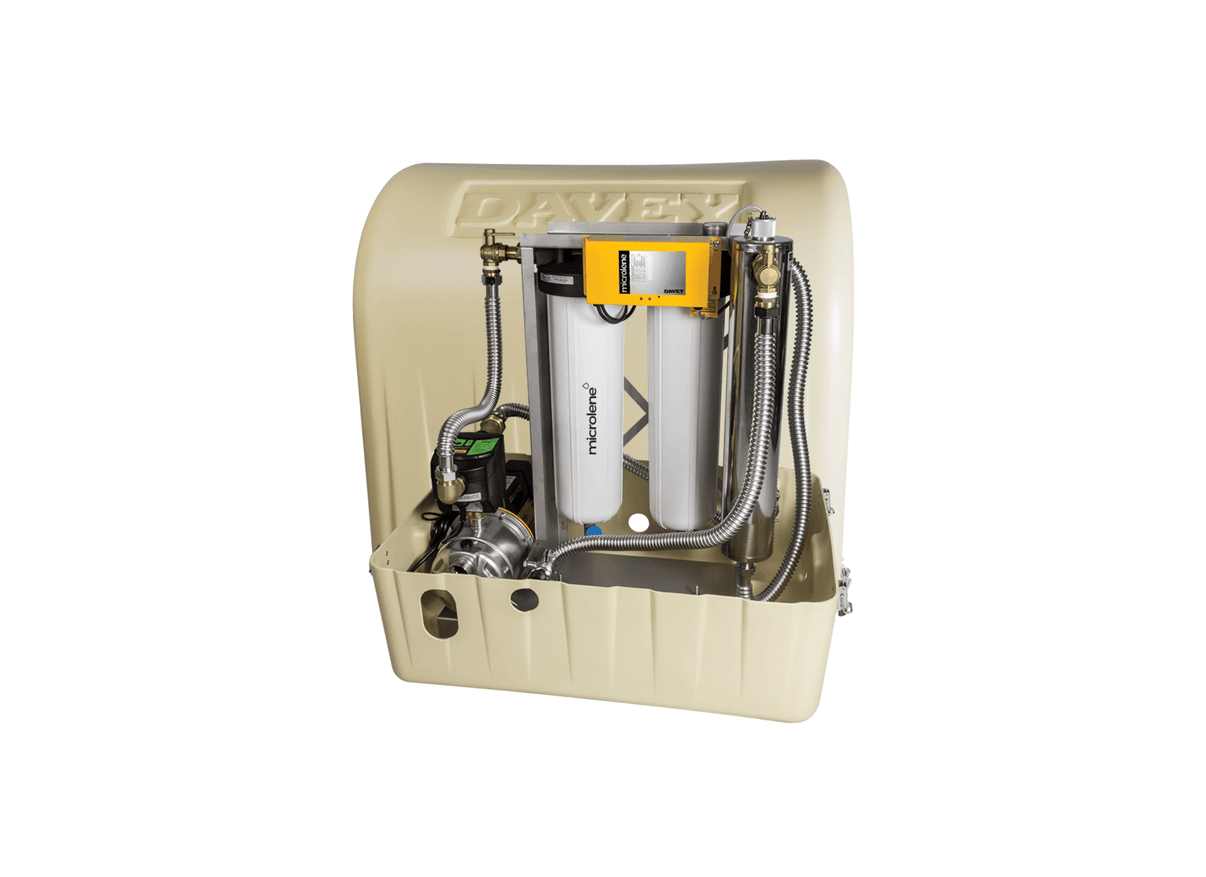

Davey ASHS60-08RB Aquashield MAX UV Packaged System for Rainwater with RainBank Controller

Utilizing a RainBank2 automatic water source controller, the ASHS60-08RB is a dual-source water treatment and pressure system in the Davey Aquashield MAX series. This model is designed for rainwater pressure boosting, multi-stage filtration, and automatic mains water backup. It is suitable for large home potable water supplies, school shower and toilet blocks, and guest house potable water supplies.

Constructed with an HS60-08 surface pump, the unit features a 304 stainless steel pump casing and backplate. The pump stages are manufactured from glass-filled noryl, and the shaft is constructed from 303 stainless steel. This system operates in water temperatures from 8°C up to 40°C, and handles maximum ambient temperatures up to 50°C.

Operating on a 240 V supply, the system incorporates a RainBank2 automatic water source controller with a maximum load current of 10 Amps. The RainBank controller achieves automatic mains water back-up by reverting to mains flow if rainwater is exhausted or power fails. Rainwater inlet is 32 mm BSP, with 25 mm BSP mains and outlet connections.

This unit features a weatherproof outdoor cover made of polyethylene to enclose the components. The multi-stage system uses a 20 micron pleated pre-filter and a 1 micron spun melt cartridge to remove sediment and parasites. The maximum system operating pressure is rated at 700 kPa, with a maximum mains pressure limit of 850 kPa.

• RainBank controller provides automatic switching to mains water supply during power outages or pump failures.
• Includes a 9,000 hour digital lamp countdown timer to indicate when to perform UV lamp replacements.
• The AquaShield MAX system has a maximum flow capacity of 70 L/Min.
• Pre-installed dual filters provide dirt, rust, sediment and debris reduction before UV treatment.
• RainBank provides backflow protection provisions when installed in accordance with the applicable installation requirements.
• Low pressure high-intensity UV lamp utilizes a quartz sleeve for simplified cleaning and maintenance.
• Freestanding frame holds the components in the pre-tested package.
