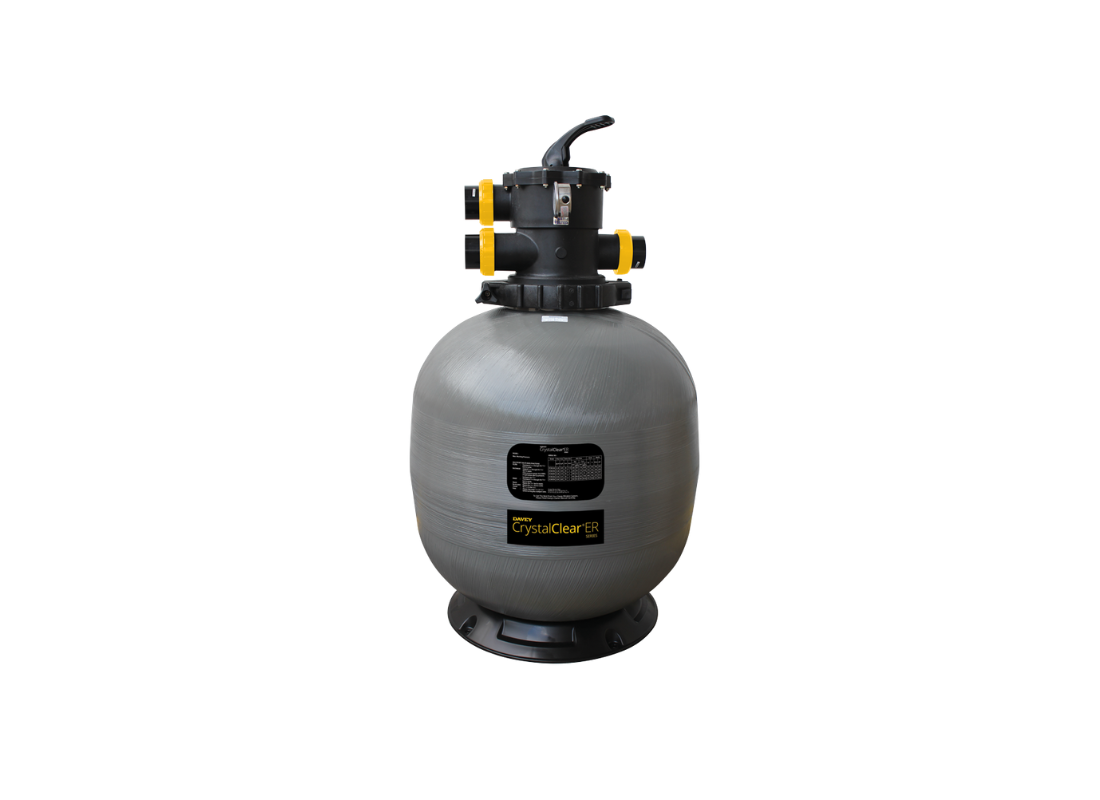

Designed for larger residential swimming pools and high-demand filtration systems, the Davey CrystalClear ER 36 DCM3650 delivers strong hydraulic filtration performance together with durable fibreglass construction for long-term pool operation. The oversized media capacity and bolt-type configuration make it suitable for installations requiring extended continuous circulation performance.
Flow capacity reaches up to 509 L/Min with backwash rates extending to 424 L/Min during filter cleaning procedures. The unit incorporates a 0.64 m² filtration area and 322 litres of media capacity, supporting six-hour turnover volumes up to 183,240 litres. Maximum operating pressure is rated to 250 kPa with allowable water temperatures up to 50°C, while the hydraulic assembly incorporates a 50 mm valve connection.
Efficient filtration behaviour is achieved through specially designed fish tail laterals that assist balanced internal flow distribution and improved hydraulic backwash efficiency. The integrated sight glass provides clear visibility during cleaning operation, while the liquid-filled pressure gauge assists with pressure monitoring and maintenance scheduling.
The seamless fibreglass vessel is manufactured using precision filament winding technology for structural strength and corrosion resistance within outdoor pool environments. A quality 6-way multiport valve is incorporated for simplified operating control, and the filter is compatible with sand, Zelbrite, fine glass, and coarse glass media configurations.
FEATURES- High-capacity fibreglass media filtration system
- Precision filament wound seamless tank construction
- Fish tail laterals improving hydraulic flow efficiency
- Integrated sight glass assisting backwash monitoring
- Liquid-filled pressure gauge for filter pressure checks
- 50 mm valve connection supporting high-flow installations
- Compatible with sand, Zelbrite, and glass media
- Quality 6-way multiport valve assembly included
