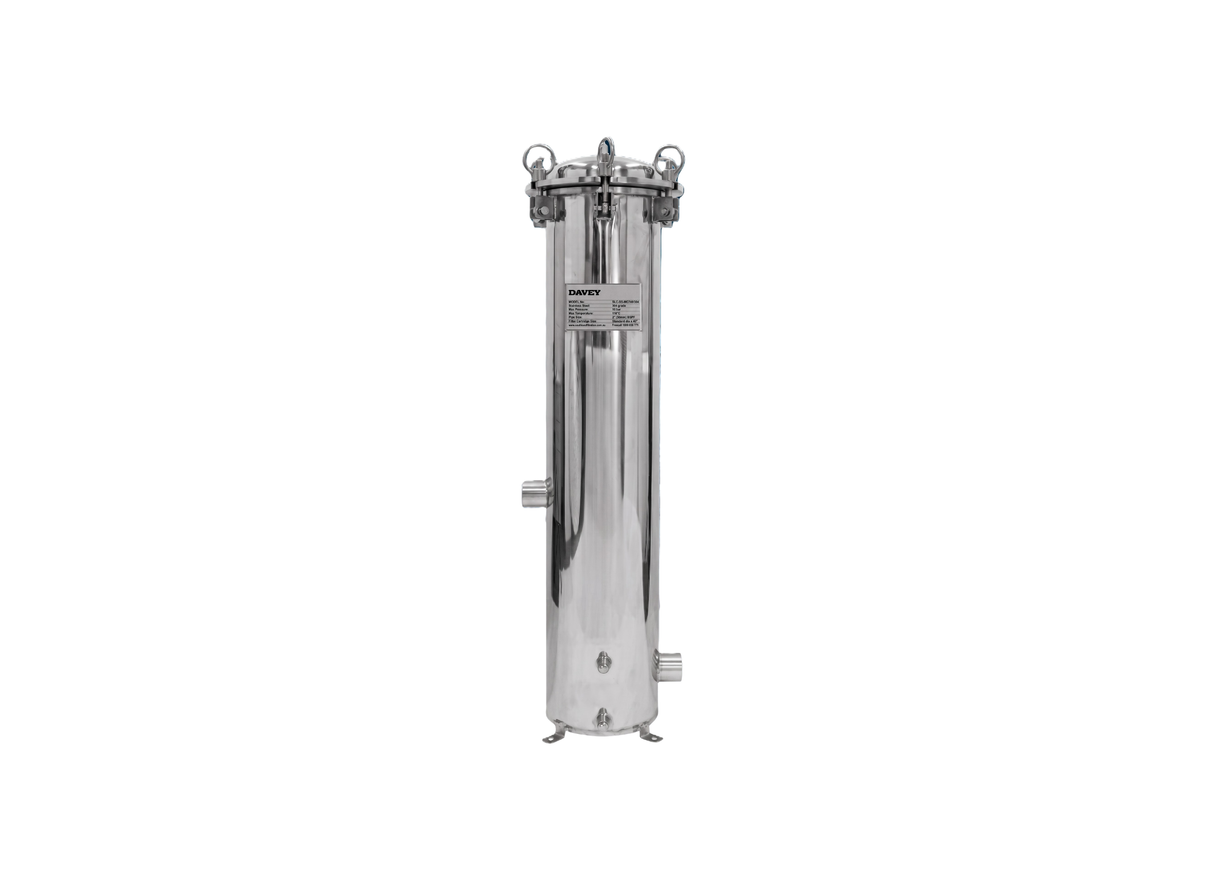

Davey FP7X40A 304 Stainless Steel Industrial Multi-Cartridge Filter Housing with Swing Bolt Lid

The Filterpure FP7X40A multi-cartridge filter housing is designed for commercial and industrial filtration, irrigation, and pre-filtration for commercial ultraviolet systems. It is suitable for standard floor-mounted setups requiring high flow rates with low pressure drop. This unit offers a filtration solution for high volume water systems.

Constructed from 304 stainless steel as standard, the shell housing contains internal components and provides corrosion resistance. It holds seven 40-inch depth cartridges or fourteen 20-inch pleated cartridges with a joiner, achieving a filter surface area of 1.38 square meters. The housing operates in liquid temperatures up to 110°C.

The housing operates under a maximum pressure of 1000 kPa and achieves a maximum flow rate of 526 L/Min. Plumbing connection sizing features 50mm BSP threaded connections on the side inlet and side outlet as standard. A three-quarter inch BSP drain port with drain cap is located at the bottom of the vessel.

Maintenance features include a swing bolt lid closure that allows quick cartridge changeout. The housing includes a vent valve and pressure gauge on the cover for pressure monitoring. Internal components include 304 stainless steel compression seat plate assemblies and tube guides to maintain cartridge alignment during operation.

Features

• Holds seven 40 inch depth cartridges or fourteen 20 inch pleated cartridges with a standard joiner.
• The compact housing has an overall 600 mm width and 1,286 mm height for floor setups.
• Designed with side inlet and side outlet 50mm BSP female connections for standard line setups.
• Constructed from 304 stainless steel standard with 316 stainless steel optional on indent orders.
• Handles operating pressures up to 1000 kPa.
• Features a swing bolt lid closure for quick cartridge changeout.
• Includes a vent valve and pressure gauge on the top cover as standard for pressure monitoring.

Warranty: 12 Months.
