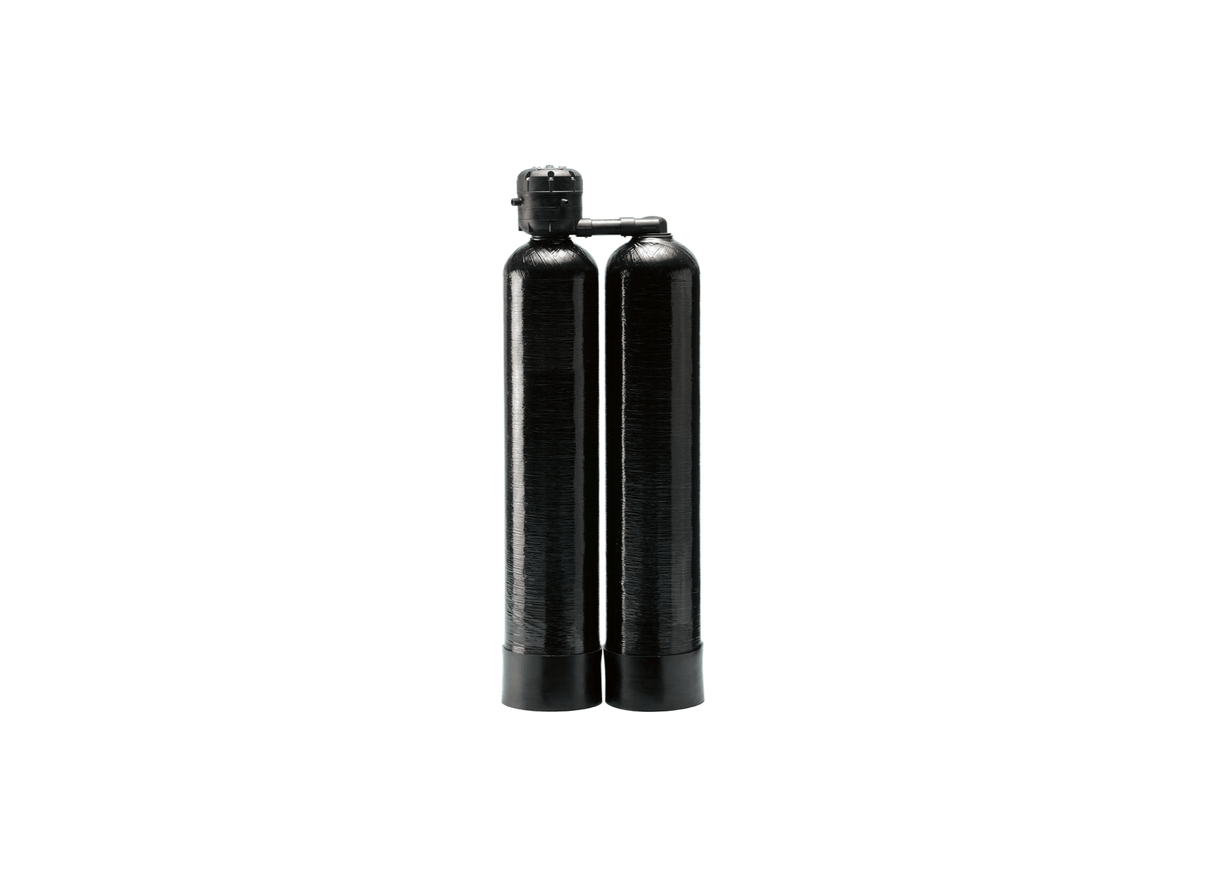

Davey Kinetico ECP213FODMAC 13" Commercial Twin-Tank Macrolite Sediment Filter with Backwash Control

Commercial water supplies with sediment and ferric iron issues are addressed by the Davey ECP213FODMAC, a Kinetico commercial twin-tank Macrolite sediment filter for light commercial applications.

Fibreglass-wrapped engineered plastic vessels and a high-density polyethylene cabinet contain 40/60 mesh M2 Macrolite ceramic filtration media. The overdrive configuration ensures continuous filtration, with one tank backwashing while the other remains in service.

Operating on pressures from 1.75 to 6.8 bar, the system delivers 57 to 76 L/min without electricity. The automatic backwash control valve manages the backwash cycle to maintain the filtration media.

Dimensions are 686 x 330 x 1524 mm with a 136 kg shipping weight. The 13” x 54” (254mm x 1,378mm) vessels feature 25mm ABS riser tubes and 0.18mm distributor baskets.

• Dual-vessel overdrive flow configuration for continuous filtration.
• Twin 13” x 54” (254mm x 1,378mm) fibreglass-reinforced engineered plastic vessels.
• 25mm diameter ABS riser tube centred within ceramic media bed.
• 0.18mm slots on lower Noryl distributor baskets.
• 492-litre automatic backwash volume with 20-minute cycle.
• 32mm custom adapter with E-clip for plumbing connections.
• 15kg D2 fine garnet under bedding for unhindered backwash flows.

Includes a 2 Years warranty for added peace of mind.
