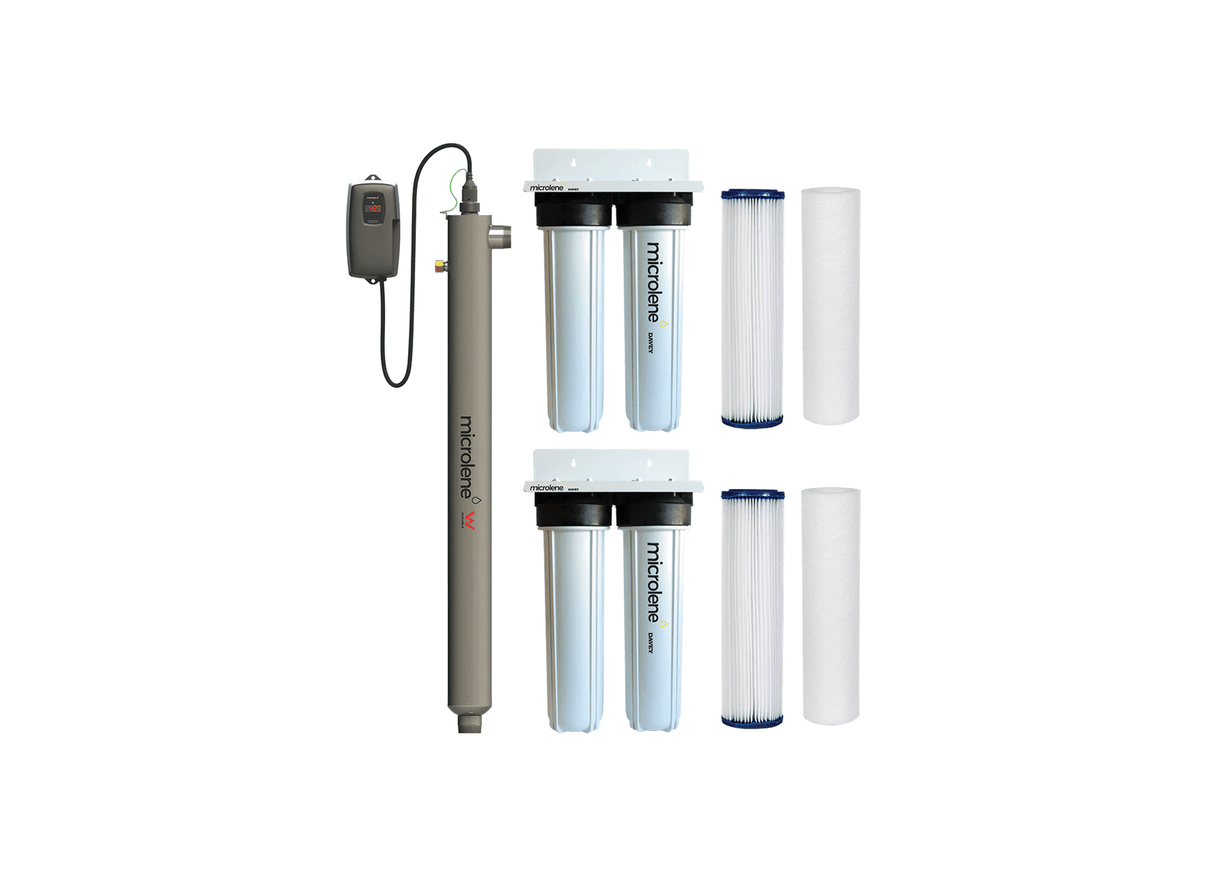

Davey KUV151A Steriflo Dual Jumbo Filter UV Water Filtration System

Continuous microbiological protection for very large homes or commercial applications is provided by the KUV151A Davey Steriflo 151 lpm UV Disinfection and Filtration Kit. This high-capacity system utilizes a physical treatment process to neutralize a broad spectrum of waterborne microorganisms without the use of chlorine. It is used for high-flow rainwater harvesting systems, rural borehole supplies, and large-scale residential water loops. The kit includes dual jumbo pre-filtration housings to ensure that particles do not shield micro-organisms from the ultraviolet light, maintaining water safety at elevated flow rates.

The system features a 316 Stainless Steel UV reactor and two 20 inch jumbo filter housings (AS20J x 2). The pre-filtration stage includes two 20 micron pleated filters and two 1 micron polyspun filters. The UV chamber has a diameter of 89 mm and a length of 1034 mm. The unit is designed to operate in water temperatures ranging from 0 to 40 degrees Celsius. The system allows for installation in either vertical or horizontal orientations. The total shipping weight for the kit components is approximately 25 kg.

This system operates on a 90-265V 50/60Hz power supply and has a total power consumption of 108W. The internal ultraviolet lamp is rated at 101W. It operates with a maximum current of 1 Amps. It achieves a flow rate of 151 L/Min at a 30mJ/cm2 dosage and 295 L/Min at a 16mJ/cm2 dosage. Filter connections are 25 mm and the UV chamber connection is 40 mm. The unit is rated for a maximum operating pressure of 860 kPa and requires a minimum operating pressure of 69 kPa.

Electrical components are housed in a splash-proof case with a fully potted ballast. It features an integrated lamp change reminder and a lamp out indicator for operational status monitoring. The internal lamp is specified for a 10,000 hour rated service life. The system includes mounting brackets for installation. High-intensity low-pressure high-output lamp technology is used to generate the 254nm ultraviolet light. The controller dimensions are 217 x 108 x 102 mm. Maintenance is performed through a tool-free design that allows for lamp changes with a quarter-turn.

FEATURES

• Dual 20 inch jumbo filter housings for high-volume pre-filtration
• 316 Stainless Steel UV reactor chamber for durable service
• Includes 20 micron pleated and 1 micron polyspun filter cartridges
• Integrated lamp change reminder for scheduled maintenance alerts
• Visual lamp out indicator for immediate operational status checks
• Ballast operation indicator allows for easy electrical monitoring
• High-intensity low-pressure high-output ultraviolet lamp technology

Warranty: 10 year chamber warranty, 3 years on electronics, 1 year on lamps and sleeves, and 1 year on filter housings.
